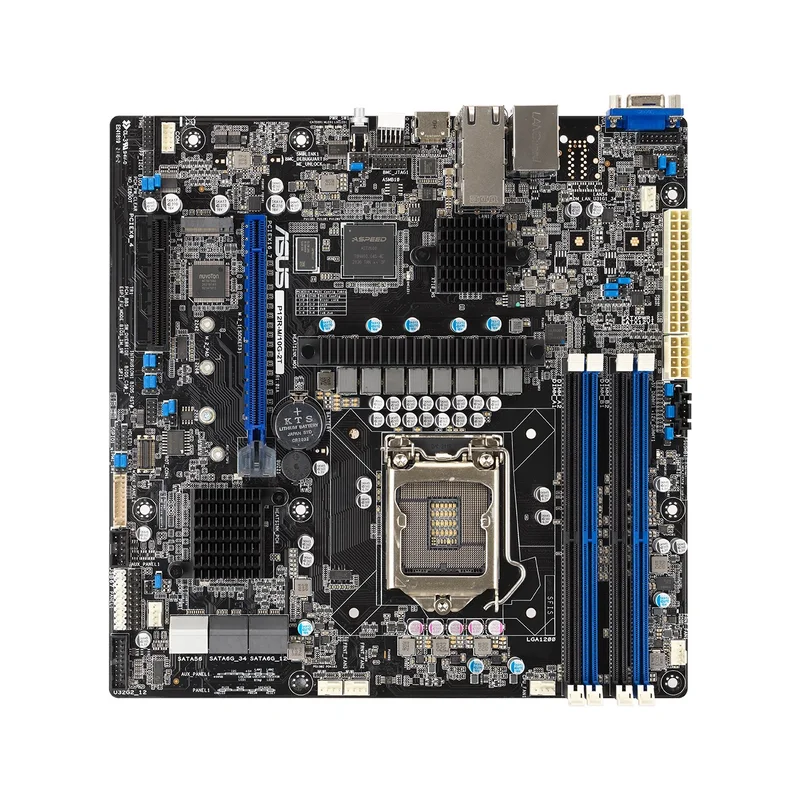

ASUS P12R-M/10G-2T Intel C252 LGA 1200 (Socket H5) micro ATX
Technical specifications
| PCI Express x4 slots | 1 |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| Number of memory slots | 4 |
| EPS power connector (8-pin) | Yes |
| Memory channels | Dual-channel |
| Package weight | 9.5 kg |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 2 |
| Storage relative humidity (H-H) | 20 – 90% |
| Operating temperature (T-T) | 10 – 50 °C |
| Graphics card family | ASPEED |
| Number of SATA III connectors | 6 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| RAID support | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
| Wi-Fi | No |
| RAID levels | 0 |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Depth | 244 mm |
| RAID levels | 10 |
| Width | 244 mm |
| TPM connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Processor manufacturer | Intel |
| Motherboard chipset family | Intel |
| Storage temperature (T-T) | -40 – 70 °C |
| ATX Power connector (24-pin) | Yes |
| On-board graphics card memory | 64 MB |
| HDMI ports quantity | 1 |
| Component for | Server |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel® Pentium® |
| Supported memory types | DDR4-SDRAM |
| Memory slots type | DIMM |
| Number of M.2 (M) slots | 1 |
| Top Wi-Fi standard | Not available |
| Serial port headers | 1 |
| Compatible processor series | Intel Xeon E |
| Harmonized System (HS) code | 84733020 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| RAID levels | 5 |
| Number of storage drives supported | 6 |
| RAID levels | 1 |
| Warnings | Avoid contact with liquids and moisture to prevent damage to equipment. |
| Warnings | Adjust adequate ventilation to avoid overheating and potential damage. |
| Warnings | The product contains electrical components – take care during installation to avoid injury. |
| Motherboard form factor | micro ATX |
| Supported memory clock speeds | 3200 MHz |
| Supported memory clock speeds | 2666 |
| Supported memory clock speeds | 2933 |
| Graphics card | AST2600 |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Supported memory module capacities | 16GB |
| Maximum internal memory | 128 GB |
| Supported memory module capacities | 4GB |
| Supported memory module capacities | 32GB |
| Supported storage drive interfaces | M.2, SATA III |
| Motherboard chipset | Intel C252 |
| Supported memory module capacities | 8GB |
