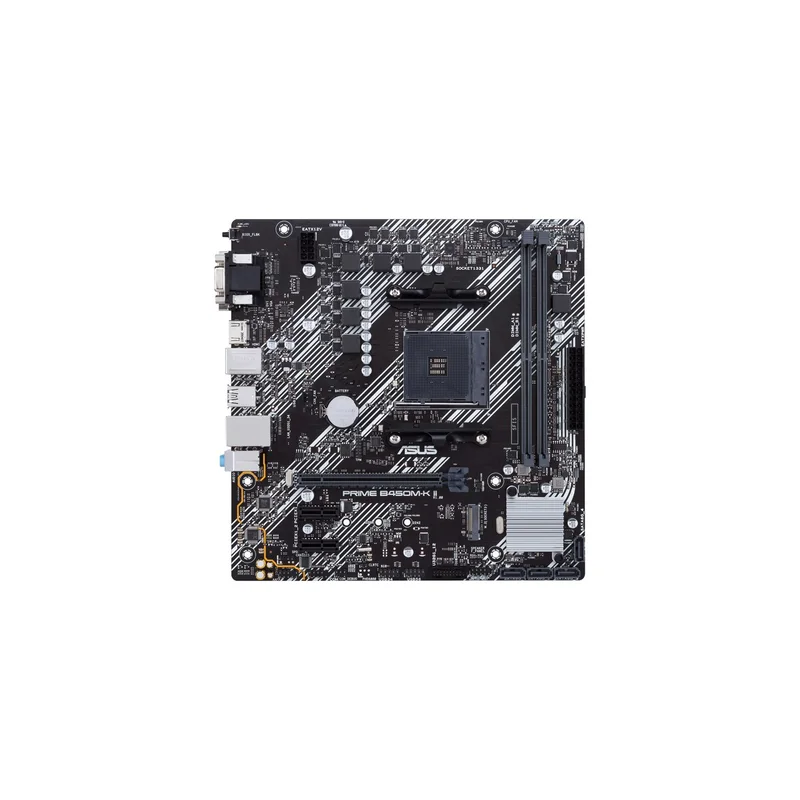

ASUS Prime B450M-K II AMD B450 Socket AM4 micro ATX
Technical specifications
| Maximum internal memory | 64 GB |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Motherboard form factor | micro ATX |
| Number of chassis fan connectors | 2 |
| Supported memory clock speeds | 3200 MHz |
| Supported memory clock speeds | 2666 |
| Audio output channels | 7.1 channels |
| ATX Power connector (24-pin) | Yes |
| Windows operating systems supported | Windows 7 x64 |
| Supported storage drive interfaces | M.2, PCI Express 3.0, Serial ATA III |
| Windows operating systems supported | Windows 10 x64 |
| Supported memory clock speeds | 2933 |
| Cables included | SATA |
| Front panel audio connector | Yes |
| Audio chip | Realtek ALC887-VD2 |
| Motherboard chipset family | AMD |
| Audio connector | Yes |
| Width | 244 mm |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Memory slots type | DIMM |
| Wi-Fi | No |
| CPU fan connector | Yes |
| RAID levels | 1 |
| Supported memory clock speeds | 2400 |
| Supported memory clock speeds | 2800 |
| S/PDIF out connector | Yes |
| PCI Express x1 (Gen 2.x) slots | 2 |
| RAID levels | 10 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Motherboard chipset | AMD B450 |
| USB 2.0 connectors | 2 |
| Supported memory clock speeds | 2133 MHz |
| Supported memory clock speeds | 3000 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Depth | 244 mm |
| Unbuffered memory | Yes |
| Processor socket | Socket AM4 |
| Microphone in | Yes |
| PCI Express x16 (Gen 3.x) slots | 2 |
| Ethernet LAN | Yes |
| Headphone outputs | 1 |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen™ Threadripper™ |
| Compatible processor series | AMD Ryzen™ Threadripper™: The Second Generation |
| RAID levels | 0 |
| Ethernet interface type | Gigabit Ethernet |
| Compatible processor series | AMD Ryzen™ 7 |
| Compatible processor series | 2nd Generation AMD Ryzen™ 7 |
| PS/2 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Compatible processor series | 2nd Generation AMD Ryzen™ 3 |
| BIOS type | UEFI AMI |
| Compatible processor series | AMD Ryzen™ 3 |
| Compatible processor series | AMD Ryzen™ 5 |
| Compatible processor series | 2nd Generation AMD Ryzen™ 5 |
