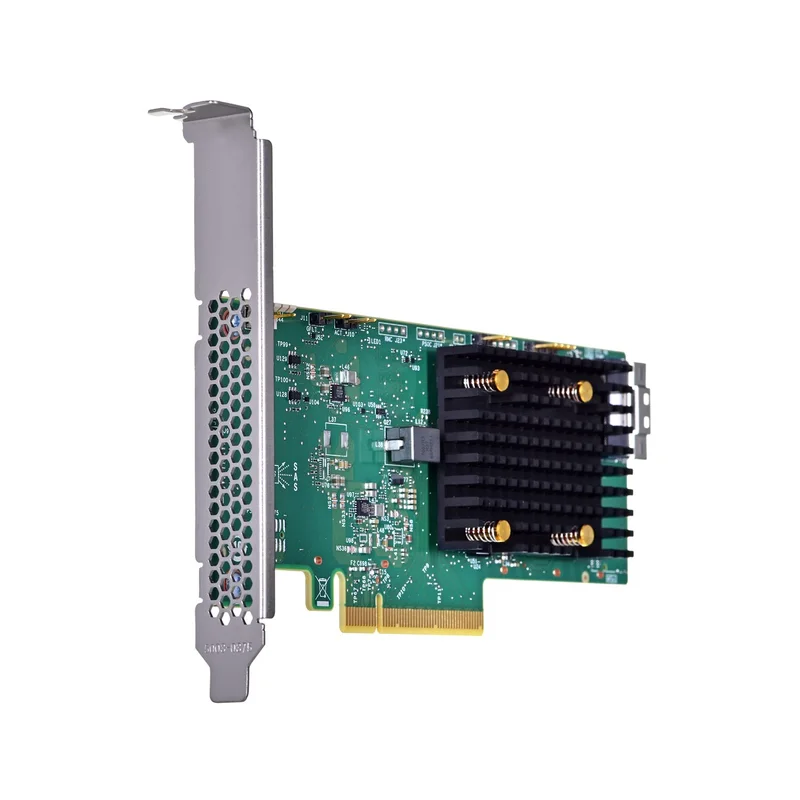

Broadcom 9540-8i RAID controller PCI Express x8 4.0 12 Gbit/s
Technical specifications
| Warnings | It is not permitted to change the configuration of the equipment with the power on |
|---|---|
| Warnings | Before installation, make sure the computer is switched off and disconnected from the power supply. |
| Warnings | Electronic products should not be disposed of with household waste. Proper disposal is required. |
| Internal SAS ports | 8 |
| Mean time between failures (MTBF) | 3000000 h |
| Supported storage drive interfaces | PCI Express 4.0 |
| PCI Express slots version | 4.0 |
| RAID levels | 1 |
| Operating relative humidity (H-H) | 5 – 90% |
| Supported storage drive interfaces | Serial ATA III |
| RAID levels | 0 |
| RAID levels | 10 |
| Number of devices supported | 32 |
| Supported storage drive interfaces | SAS |
| Depth | 155.7 mm |
| Chipset | SAS3808 |
| Height | 68.9 mm |
| Host interface | PCI Express x8 |
| Operating temperature (T-T) | 0 – 55 °C |
| Storage relative humidity (H-H) | 5 – 95% |
| Data transfer rate | 12 Gbit/s |
| S.M.A.R.T. support | Yes |
| Storage temperature (T-T) | -45 – 105 °C |
