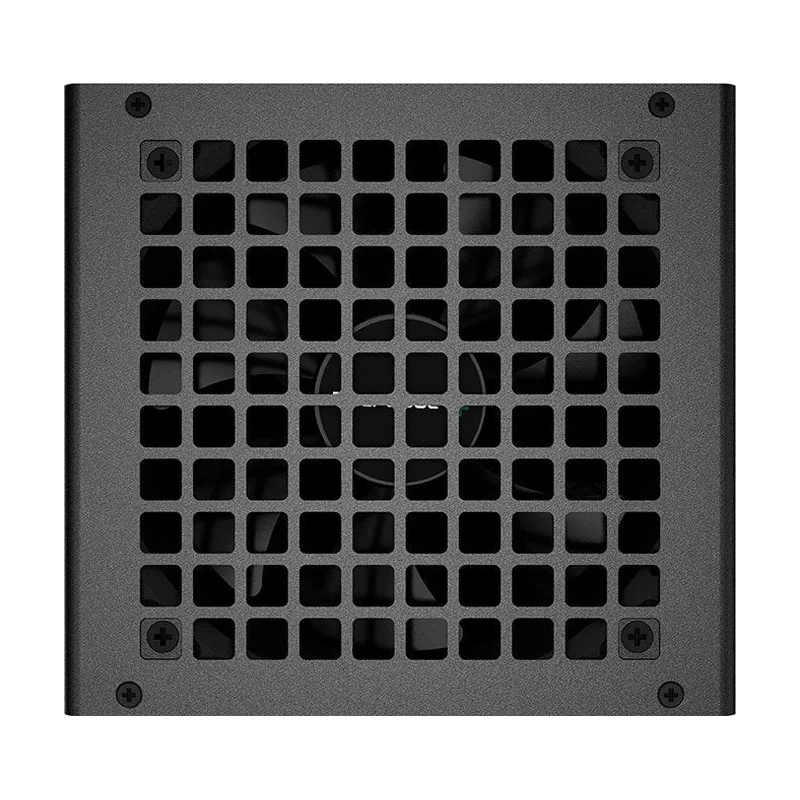

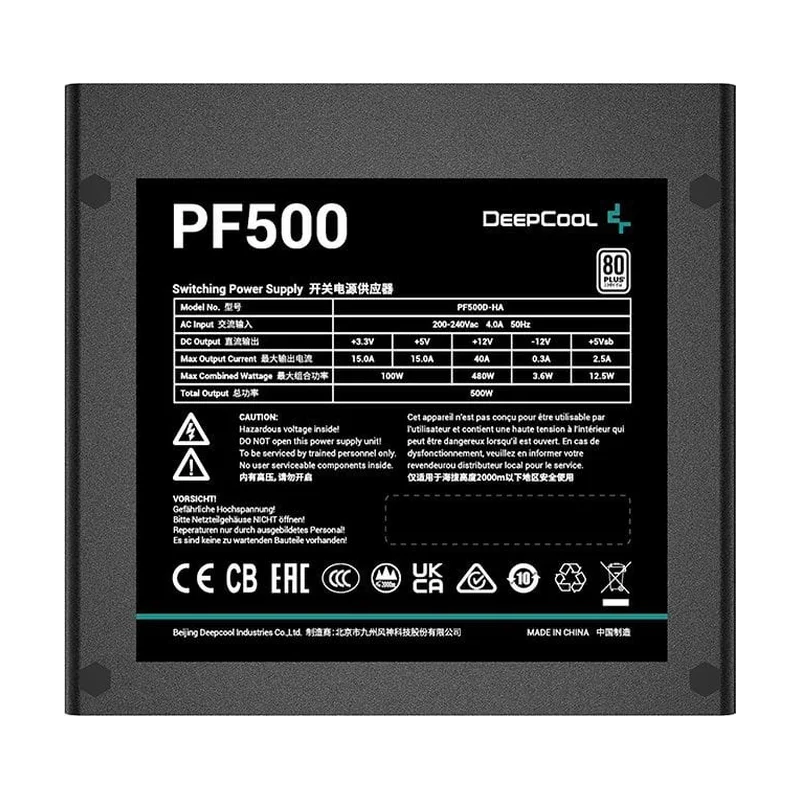

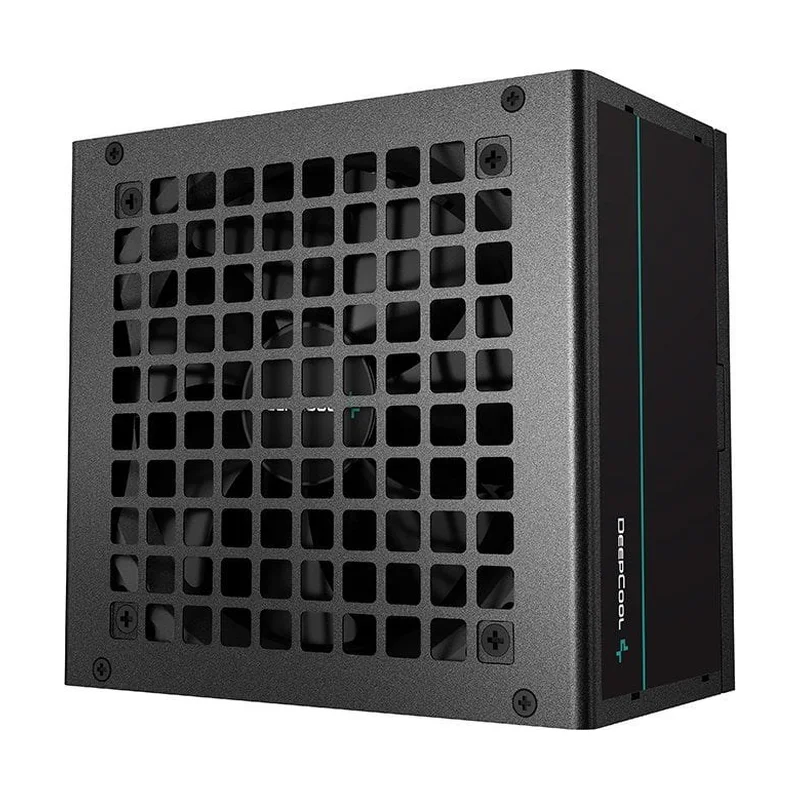

DeepCool PF500 power supply unit 500 W 20+4 pin ATX ATX Black
Technical specifications
| Combined power (+12V) | 480 W |
|---|---|
| Product colour | Black |
| Height | 86 mm |
| Cables included | AC |
| Fan diameter | 12 cm |
| Hold time | 16 ms |
| Depth | 140 mm |
| Efficiency | 85% |
| Cooling type | Active |
| Max output current (+5V) | 15 A |
| AC input voltage | 220 – 240 V |
| Combined power (+5Vsb) | 12.5 W |
| 80 PLUS certification | 80 PLUS |
| Mean time between failures (MTBF) | 100000 h |
| PCI Express power connectors (6+2 pin) | 2 |
| Purpose | PC/Server |
| SATA power cable length | 900 mm |
| SATA power cable length | 450 |
| Power protection features | Short circuit |
| Power protection features | Over voltage |
| Power protection features | Under voltage |
| SATA power cable length | 750 |
| Power protection features | Over power |
| Width | 150 mm |
| Max output current (-12V) | 0.3 A |
| Combined power (+3.3V) | 100 W |
| Motherboard power connector | 20+4 pin ATX |
| Number of fans | 1 fan(s) |
| ATX version | 2.4 |
| Number of SATA power connectors | 4 |
| On/off switch | Yes |
| Max output current (+12V) | 40 A |
| SATA power cable length | 600 |
| Power supply unit (PSU) form factor | ATX |
| Cabling type | Non-Modular |
| Total power | 500 W |
| EPS power connector (4+4 pin) | Yes |
| Max output current (+3.3V) | 15 A |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Operating temperature (T-T) | 0 – 40 °C |
| AC input frequency | 50 Hz |
| Max output current (+5Vsb) | 2.5 A |
| Package type | Box |
| Motherboard power cable length | 55 cm |
