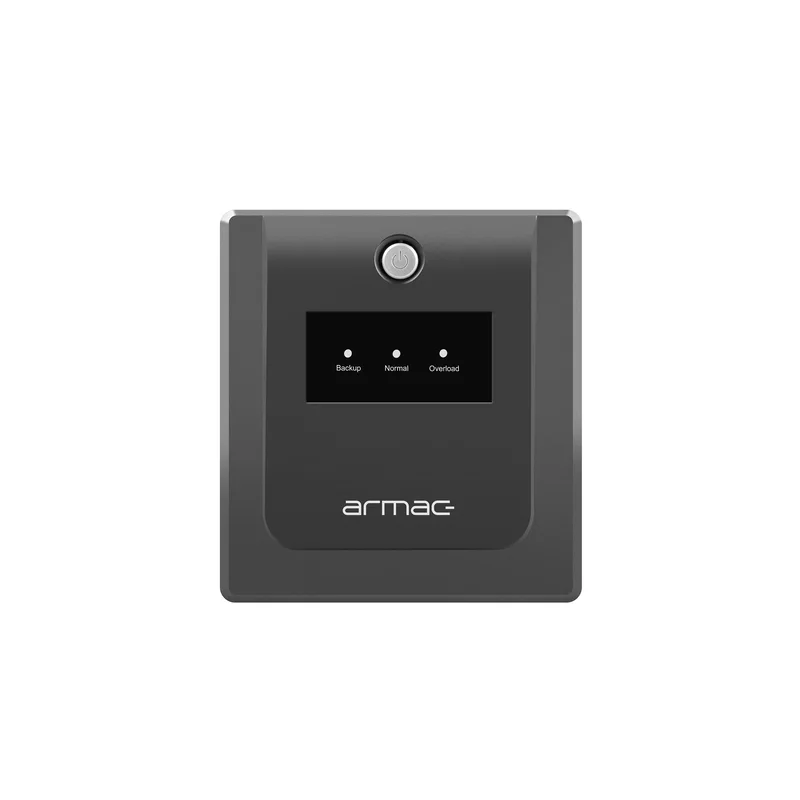

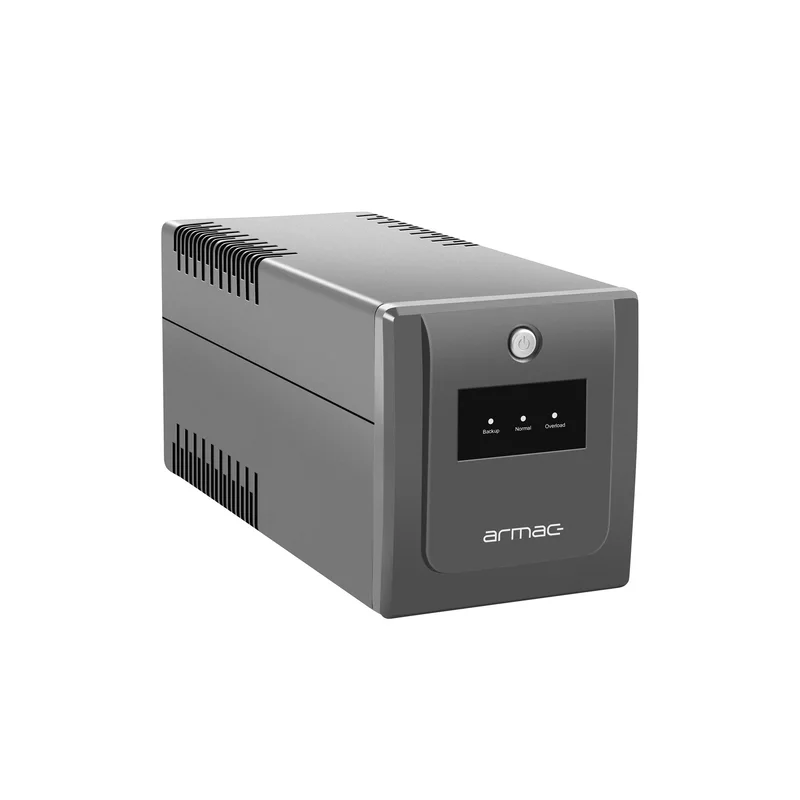

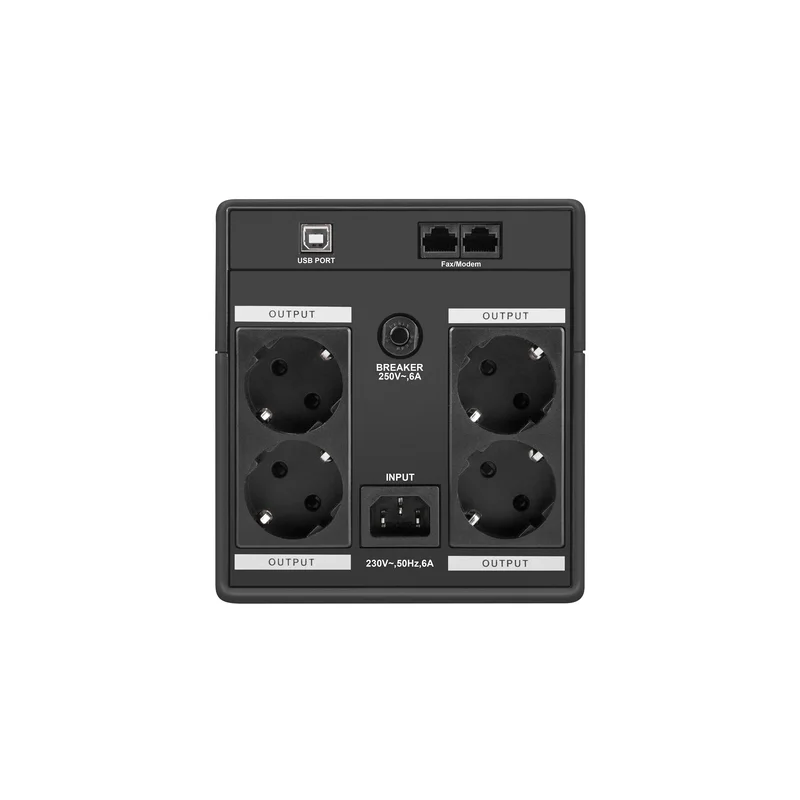

Emergency power supply Armac UPS HOME LINE-INTERACTIVE H/1500F/LED
Technical specifications
| Depth | 345 mm |
|---|---|
| Input frequency | 45 – 65 Hz |
| Cold start | Yes |
| Auto-restart | Yes |
| UPS topology | Line-Interactive |
| Automatic Voltage Regulation (AVR) | Yes |
| Output power capacity | 1500 kVA |
| Typical backup time at half load | 20 min |
| Output voltage | 230 V |
| AC outlet types | Type F |
| Output operation voltage (min) | 255 V |
| USB cable included | No |
| Height | 162 mm |
| USB port | Yes |
| Power protection features | Over power |
| Power protection features | Input fuse |
| Power protection features | Short circuit |
| Automatic battery test | Yes |
| Typical backup time at full load | 3 min |
| Power protection features | Battery discharge |
| Output frequency | 50 Hz |
| Waveform | Sine |
| Battery recharge time (90%) | 6 h |
| RJ-45 ports quantity | 2 |
| Input operation voltage (min) | 145 V |
| Input operation voltage (max) | 290 V |
| Power protection features | Overvoltage protection |
| Output operation voltage (max) | 195 V |
| Operating temperature (T-T) | 0 – 45 °C |
| Output power | 950 W |
| Number of batteries supported | 2 |
| Battery technology | Maintenance Free, Lead Acid (AGM) |
| Battery voltage | 12 V |
| AC outlets quantity | 4 Mains socket(s) |
| Warnings | Use the appliance in well-ventilated areas to avoid overheating. |
| Warnings | Do not disassemble the unit housing, there may be a risk of electric shock. |
| Width | 146 mm |
| Product colour | Black |
| Warnings | Keep away from sources of fire and water. |
| Noise level | 45 dB |
| Operating relative humidity (H-H) | 10 – 90% |
| Response time | 2 – 6 ms |
| Weight | 10.5 kg |
| Battery capacity | 9 Ah |
| Form factor | Tower |
