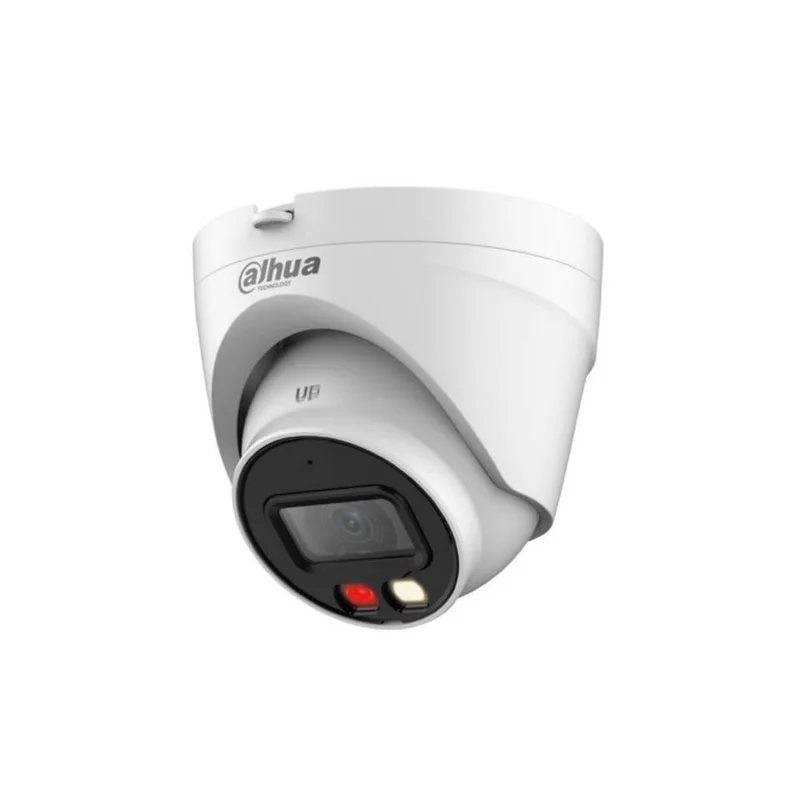

IP security camera DAHUA Technology IPC-HDW1439V-A-IL White
Technical specifications
| Certification | CE-LVD: EN62368-1; CE-EMC:: Electromagnetic Compatibility Directive 2014/30/EU 2023-07-21 |
|---|---|
| Warnings | Avoid direct contact with water to prevent electrical damage. |
| Warnings | Ensure that the product is properly installed and protected against falling. |
| Warnings | The product contains electronic components; do not dispose of with the normal household waste. |
| Connectivity technology | Wired |
| Maximum resolution | 2560 x 1440 pixels |
| Supported graphics resolutions | 704 x 576 |
| Supported graphics resolutions | 1280 x 960 |
| Supported graphics resolutions | 640 x 480 (VGA) |
| Supported graphics resolutions | 352 x 240 |
| Supported graphics resolutions | 2304 x 1296 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported graphics resolutions | 2560 x 1440 |
| Built-in microphone | Yes |
| Weight | 330 g |
| Supported graphics resolutions | 1280 x 720 (HD 720) |
| Product colour | White |
| Power source type | DC, PoE |
| Supported graphics resolutions | 352 x 288 |
| Supported graphics resolutions | 704 x 480 |
| Tilt angle range | 0 – 78° |
| Ethernet LAN | Yes |
| Lens viewing angle, horizontal | 94° |
| Depth | 109.9 mm |
| Lens viewing angle, vertical | 52° |
| Storage temperature (T-T) | -30 – 70 °C |
| Lens viewing angle, diagonal | 111° |
| Type | IP security camera |
| Operating temperature (T-T) | -40 – 60 °C |
| Power consumption (typical) | 2 W |
| Width | 109.9 mm |
| International Protection (IP) code | IP67 |
| Power consumption (max) | 4.6 W |
| Form factor | Dome |
| Operating relative humidity (H-H) | 0 – 95% |
| Wi-Fi | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Back Light Compensation (BLC) | Yes |
| Number of cameras | 1 |
| Height | 100.9 mm |
| Internal memory | 128 MB |
| White balance | Natural |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast |
| Wide Dynamic Range (WDR) | 120 dB |
| White balance | Outdoor |
| Ethernet interface type | Fast Ethernet |
| Pan range | 0 – 360° |
| White balance | Manual |
| White balance | Street lamp |
| Bit rate | H.264: 32 – 4096Kbps; H.265: 12 – 4096Kbps |
| LED type | IR / White light LED |
| Camera shutter type | Electronic |
| Total megapixels | 4 MP |
| Night vision distance | 30 m |
| Camera shutter type | Mechanical |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Number of illumination LEDs | 1 / 1 |
| White balance | Auto |
| Number of effective pixels (H x V) | 2560 x 1440 pixels |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Video compression formats | H.264H |
| Focal length range | 2.8 mm |
| Sensor type | HD CMOS |
| Streaming method | Multicast |
| Maximum aperture number | 1.6 |
| Video compression formats | H.264B |
| Video compression formats | H.264+ |
| Region of Interest (ROI) encoding | Yes |
| Video compression formats | H.265 |
| Noise reduction | Yes |
| Day/night mode | Yes |
| Audio codecs | G.711a, G.711Mu, G.726, PCM |
| Power consumption (Power over Ethernet (PoE)) | 2.9 W |
| Number of lenses | 1 |
| ROM capacity | 128 MB |
| Identify distance | 6.4 m |
| Video compression formats | H.265+ |
| Mobile operating systems supported | iOS |
| Closest focusing distance | 1.1 m |
| Gain control type | Auto |
| Smart IR | Yes |
| Active tampering alarm | Yes |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Web browser | Yes |
| Smartphone/tablet remote support | Yes |
| Mobile operating systems supported | Android |
| Video compression formats | H.264 |
| Recognize distance | 12.8 m |
| Frame rate | 30 fps |
| DC output voltage | 12 |
| Camera shutter speed | 1/3 -1/100000 s |
| Supported video modes | 1080p |
| Video motion detection | Yes |
| Mounting type | Ceiling/wall |
| Number of sensors | 1 |
| Supported video modes | 720p |
| Observe distance | 25.6 m |
| Progressive scan | Yes |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Video streaming | Yes |
| Mirror | Yes |
| Power over Ethernet (PoE) voltage range | 48 V |
| Detect distance | 64 m |
| Noise reduction technology | 3D noise reduction |
| Placement supported | Indoor & outdoor |
| Night vision | Yes |
| Management software | Smart PSS, Smart PSS Lite, DSS, DMSS, P2P |
