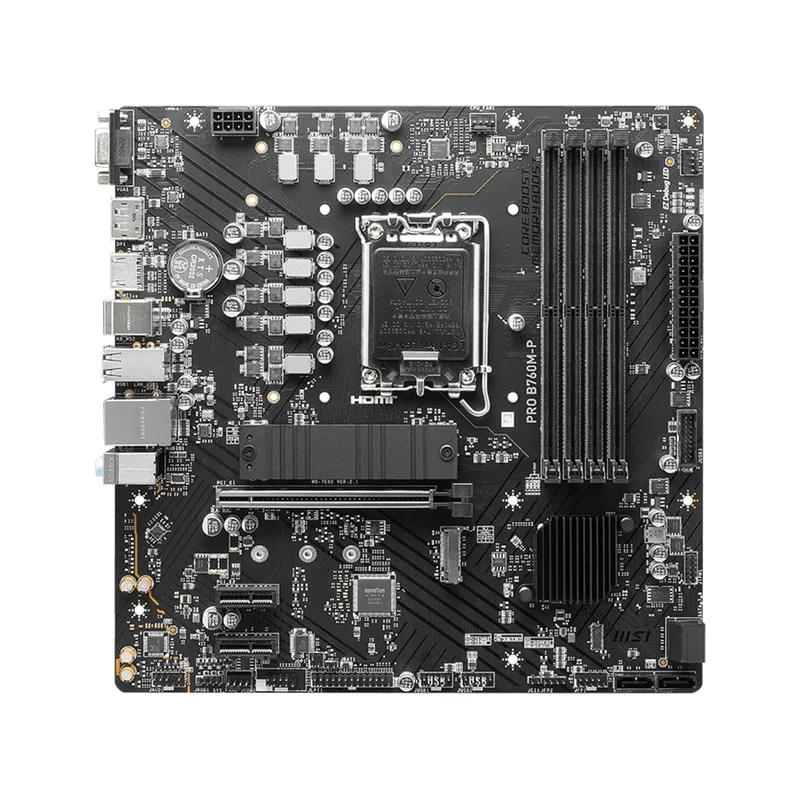

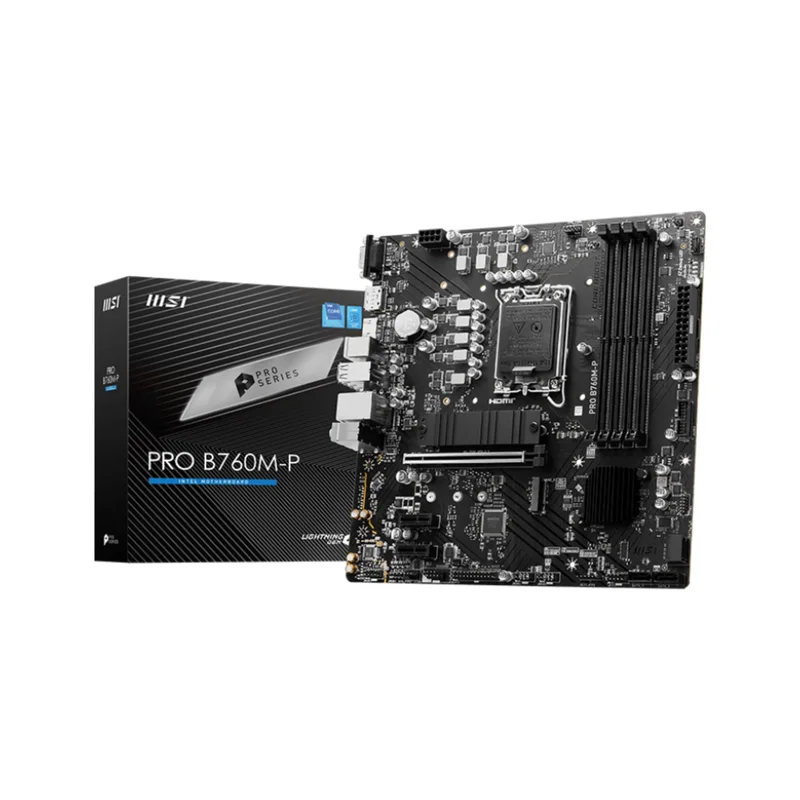

MSI PRO B760M-P motherboard Intel B760 LGA 1700 micro ATX
Technical specifications
| DisplayPorts quantity | 1 |
|---|---|
| Supported memory clock speeds | 5000 |
| Supported memory clock speeds | 4800 |
| ATX Power connector (24-pin) | Yes |
| Supported memory clock speeds | 6200 |
| Supported memory clock speeds | 6400 |
| Supported memory clock speeds | 6600 |
| Supported memory clock speeds | 6800 |
| Supported memory clock speeds | 5800 |
| Supported memory clock speeds | 5400 |
| Supported memory clock speeds | 6000 |
| Motherboard form factor | micro ATX |
| Number of SATA III connectors | 4 |
| Supported memory clock speeds | 5200 |
| Maximum internal memory | 192 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of COM connectors | 1 |
| Supported memory clock speeds | 5600 |
| Supported storage drive interfaces | SATA III |
| Windows operating systems supported | Windows 11 x64 |
| Front panel audio connector | Yes |
| Unbuffered memory | Yes |
| Supported processor sockets | LGA 1700 |
| Power source type | ATX |
| Audio output channels | 7.1 channels |
| USB 2.0 connectors | 4 |
| RAID support | Yes |
| Windows operating systems supported | Windows 10 x64 |
| RAID levels | 0 |
| DisplayPort version | 1.4 |
| Number of M.2 (M) slots | 2 |
| Supported storage drive types | HDD & SSD |
| RAID levels | 10 |
| RAID levels | 1 |
| Parallel connector | Yes |
| Motherboard chipset | Intel B760 |
| Chassis intrusion connector | Yes |
| Audio chip | Realtek ALC897 |
| RAID levels | 5 |
| Motherboard chipset family | Intel |
| CPU fan connector | Yes |
| Front panel connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| LAN controller | Realtek RTL8111H |
| USB 2.0 ports quantity | 4 |
| BIOS type | UEFI AMI |
| VGA (D-Sub) ports quantity | 1 |
| Number of memory slots | 4 |
| Processor socket | LGA 1700 |
| Top Wi-Fi standard | Not available |
| Wi-Fi | No |
| Supported memory types | DDR5-SDRAM |
| Compatible processor series | Intel® Celeron® |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Headphone outputs | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Line-in | Yes |
| HDMI ports quantity | 1 |
| Width | 243.8 mm |
| Microphone in | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| RGB LED pin header | Yes |
| Number of HDDs supported | 4 |
| PS/2 ports quantity | 2 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Depth | 243.8 mm |
| Clear CMOS jumper | Yes |
| Cables included | SATA |
| Number of storage drives supported | 6 |
| Compatible processor series | Intel® Pentium® Gold |
| Warnings | Before starting any maintenance or installation, disconnect the product from the power supply. |
| ECC сompatibility | Non-ECC |
| HDMI version | 1.4 |
| Warnings | Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
| TPM connector | Yes |
| Processor manufacturer | Intel |
| Warnings | Avoid direct contact with electronics to prevent electrostatic damage. |
| PCI Express x1 (Gen 4.x) slots | 2 |
