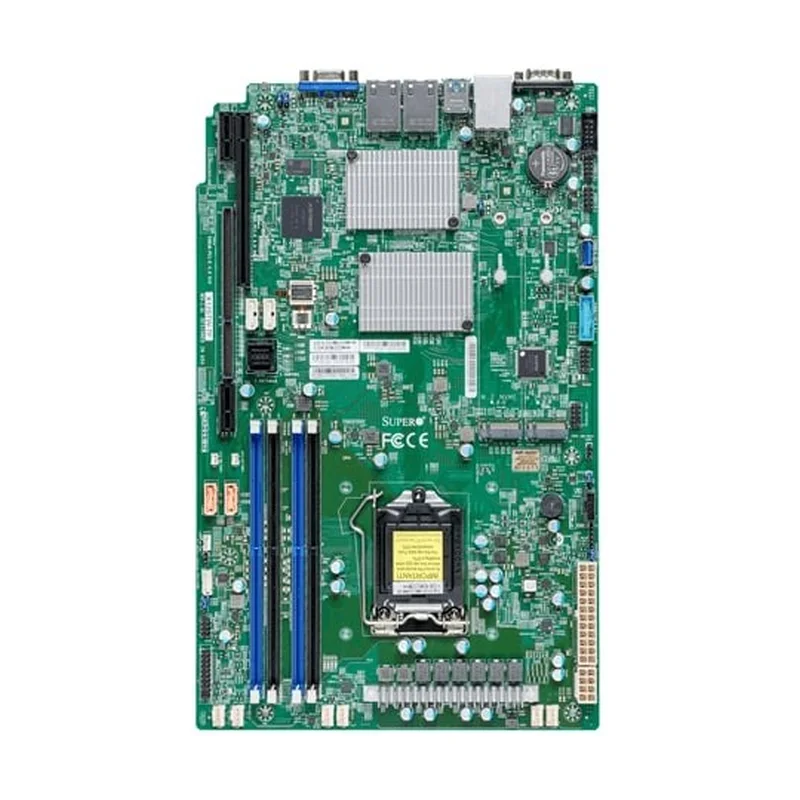

Supermicro X12STW-TF Intel C256 LGA 1200 (Socket H5) WIO
Technical specifications
| ACPI version | 6.0 |
|---|---|
| Maximum number of SMP processors | 1 |
| Width | 203.2 mm |
| Processor manufacturer | Intel |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Storage relative humidity (H-H) | 5 – 95% |
| Depth | 330.2 mm |
| Compatible processor series | Intel® Pentium® |
| Compatible processor series | Intel Xeon E |
| Memory voltage | 1.2 V |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Memory slots type | DIMM |
| BIOS memory size | 256 Mbit |
| Processor socket | LGA 1200 (Socket H5) |
| VGA (D-Sub) ports quantity | 1 |
| Number of memory slots | 4 |
| Graphics card family | ASPEED |
| BIOS type | UEFI |
| Supported memory types | DDR4-SDRAM |
| Wi-Fi | No |
| System Management BIOS (SMBIOS) version | 3.3 |
| Operating relative humidity (H-H) | 8 – 90% |
| Ethernet interface type | 10 Gigabit Ethernet |
| TPM connector | Yes |
| Ethernet LAN | Yes |
| Storage temperature (T-T) | -40 – 70 °C |
| ECC сompatibility | ECC |
| Component for | Server |
| Supported storage drive interfaces | M.2, SATA |
| Motherboard chipset family | Intel |
| Supported memory module capacities | 16GB |
| Supported memory clock speeds | 2933 |
| Supported memory module capacities | 4GB |
| Motherboard form factor | WIO |
| USB 2.0 connectors | 4 |
| Supported memory module capacities | 8GB |
| Supported memory clock speeds | 3200 MHz |
| Supported memory clock speeds | 2666 |
| Supported storage drive types | HDD & SSD |
| Supported memory module capacities | 32GB |
| Ethernet LAN (RJ-45) ports | 2 |
| Operating temperature (T-T) | 0 – 50 °C |
| Graphics card | AST2600 |
| Number of SATA III connectors | 8 |
| LAN controller | Intel® X550 |
| USB 2.0 ports quantity | 2 |
| Maximum internal memory | 128 GB |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Serial port headers | 1 |
| Motherboard chipset | Intel C256 |
| Intel Xeon series | E-2300 |
