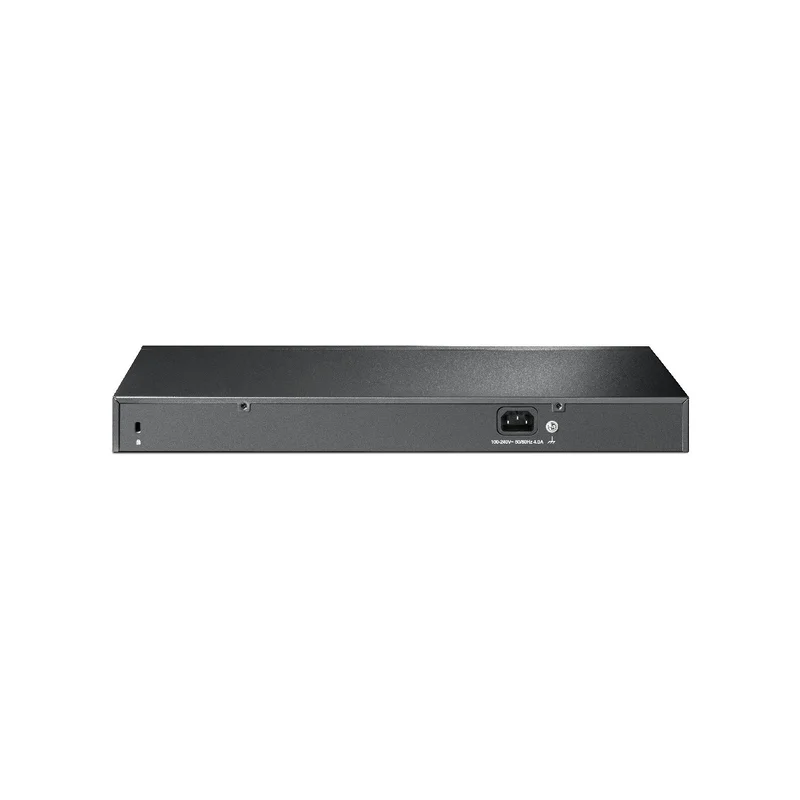

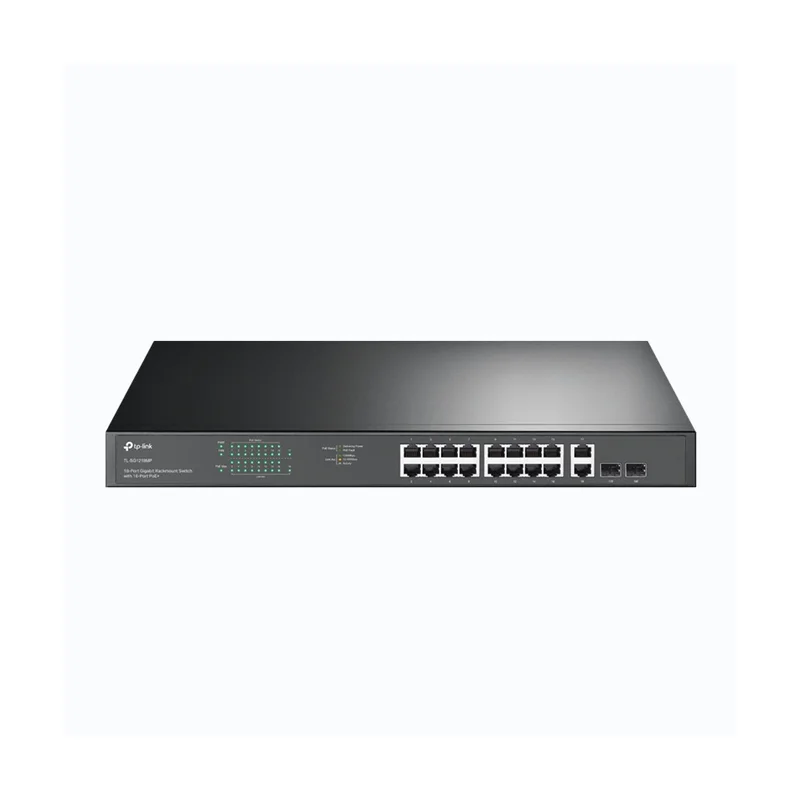

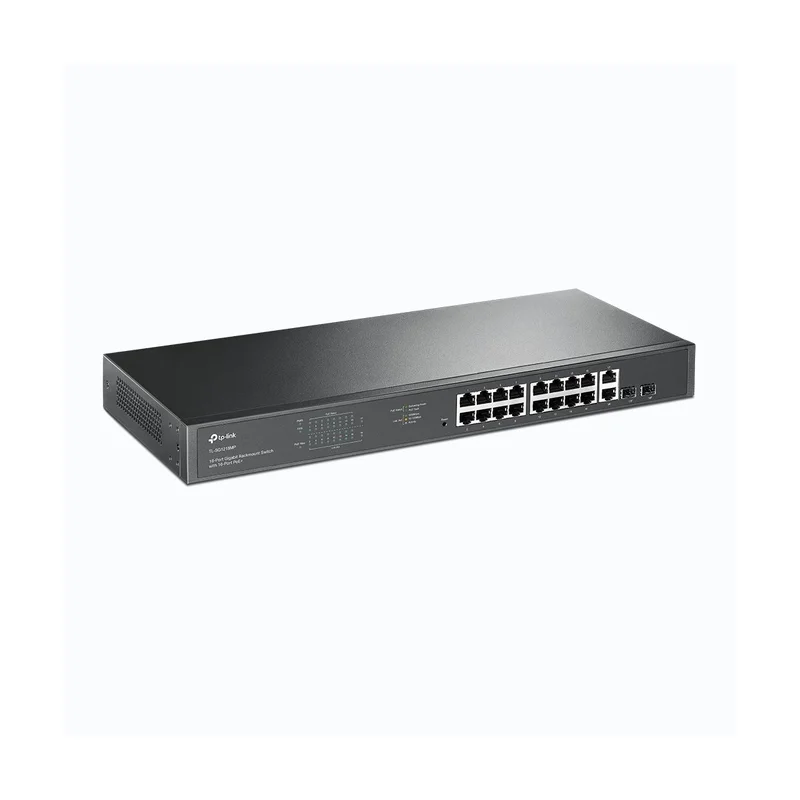

TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+
Technical specifications
| Certification | CE, FCC, RoHS |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
| Storage temperature (T-T) | -40 – 70 °C |
| Quality of Service (QoS) support | Yes |
| AC input frequency | 50 – 60 Hz |
| Operating relative humidity (H-H) | 10 – 90% |
| Quick start guide | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 – 50 °C |
| AC input voltage | 100 – 240 V |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.1p |
| Package weight | 3.05 kg |
| Form factor | 1U |
| Networking standards | IEEE 802.3u |
| Number of fans | 2 fan(s) |
| Jumbo frames support | Yes |
| Power source | AC |
| Combo SFP ports quantity | 2 |
| Switch type | Unmanaged |
| Power over Ethernet (PoE) power per port | 30 W |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Housing material | Metal |
| Heat dissipation | 977.44 BTU/h |
| Storage relative humidity (H-H) | 5 – 90% |
| Package width | 250 mm |
| Total Power over Ethernet (PoE) budget | 250 W |
| Package depth | 528 mm |
| Height | 44 mm |
| Full duplex | Yes |
| 10G support | No |
| Rack mounting | Yes |
| Power consumption (max) | 286.64 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Cables included | AC |
| Auto MDI/MDI-X | Yes |
| Width | 440 mm |
| Harmonized System (HS) code | 85176990 |
| Flow control support | Yes |
| Depth | 180 mm |
| Switching capacity | 36 Gbit/s |
| Packet buffer memory | 4.1 MB |
| MAC address table | 8000 entries |
| Auto-negotiation | Yes |
| Power supply included | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 18 |
| Package height | 80 mm |
| MAC address auto-aging supported | Yes |
| Forwarding rate | 26.78 Mpps |
| Cable types supported | Cat4 |
| Cable types supported | Cat5 |
| Cable types supported | Cat5e |
| Jumbo frames | 10000 |
| Traffic classification | Yes |
| Cable types supported | Cat6 |
| Cable types supported | Cat3 |
| Gigabit Ethernet (copper) ports quantity | 18 |
| MAC address auto-learning supported | Yes |
| Warnings | Ensure the unit is adequately ventilated during operation. |
| Warnings | The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations. |
| Warnings | Do not open the case or try to repair it yourself. |
| Half duplex | Yes |
