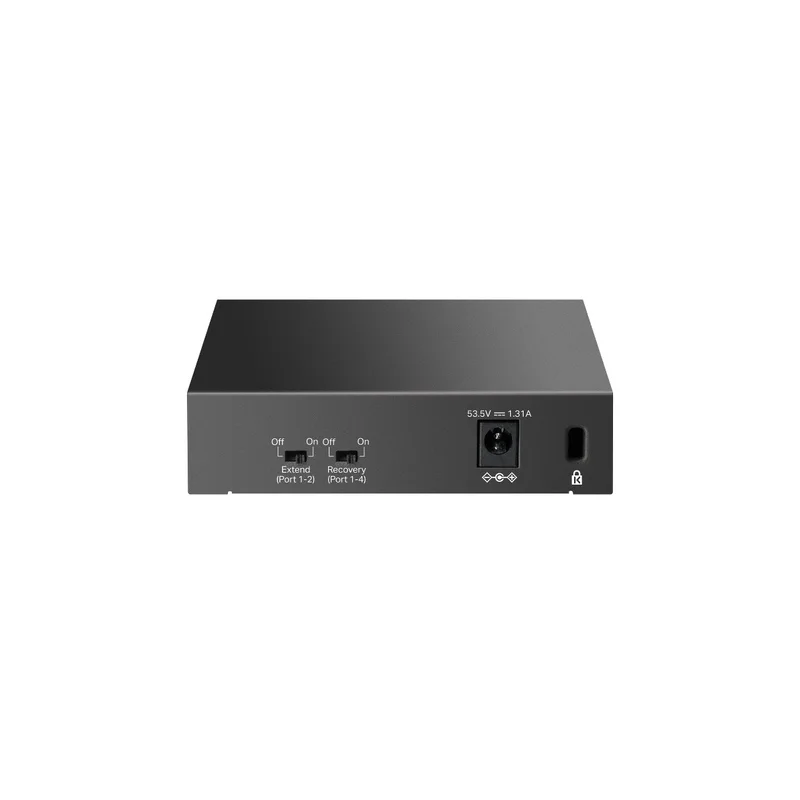

TP-Link LiteWave 5-Port Gigabit Desktop Switch with 4-Port PoE+
Technical specifications
| Certification | CE, FCC, RoHS |
|---|---|
| Total Power over Ethernet (PoE) budget | 65 W |
| Operating temperature (T-T) | 0 – 40 °C |
| Power source | DC/PoE |
| Package type | Box |
| AC input voltage | 220 V |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Networking standards | IEEE 802.3u |
| Width | 99.8 mm |
| Operating relative humidity (H-H) | 10 – 90% |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Storage relative humidity (H-H) | 5 – 90% |
| Power supply included | Yes |
| MAC address table | 2000 entries |
| MAC address auto-learning supported | Yes |
| Warnings | The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations. |
| LED indicators | Yes |
| Product colour | Black |
| Depth | 98 mm |
| Networking standards | IEEE 802.3at |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Flow control support | Yes |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.3x |
| Power over Ethernet (PoE) power per port | 30 W |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3i |
| AC input frequency | 50 Hz |
| Cable types supported | Cat4 |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.1p |
| Cable types supported | Cat3 |
| Storage temperature (T-T) | -40 – 70 °C |
| Quality of Service (QoS) support | Yes |
| Heat dissipation | 253.16 BTU/h |
| 10G support | No |
| User guide | Yes |
| Forwarding rate | 7.44 Mpps |
| Switch type | Unmanaged |
| Cable types supported | Cat5 |
| Cable types supported | Cat5e |
| IGMP snooping | Yes |
| Power consumption (max) | 74.46 W |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Height | 25 mm |
| Warnings | Ensure the unit is adequately ventilated during operation. |
| Warnings | Do not open the case or try to repair it yourself. |
| MAC address auto-aging supported | Yes |
| DC input voltage | 53.5 V |
| Jumbo frames | 16000 |
