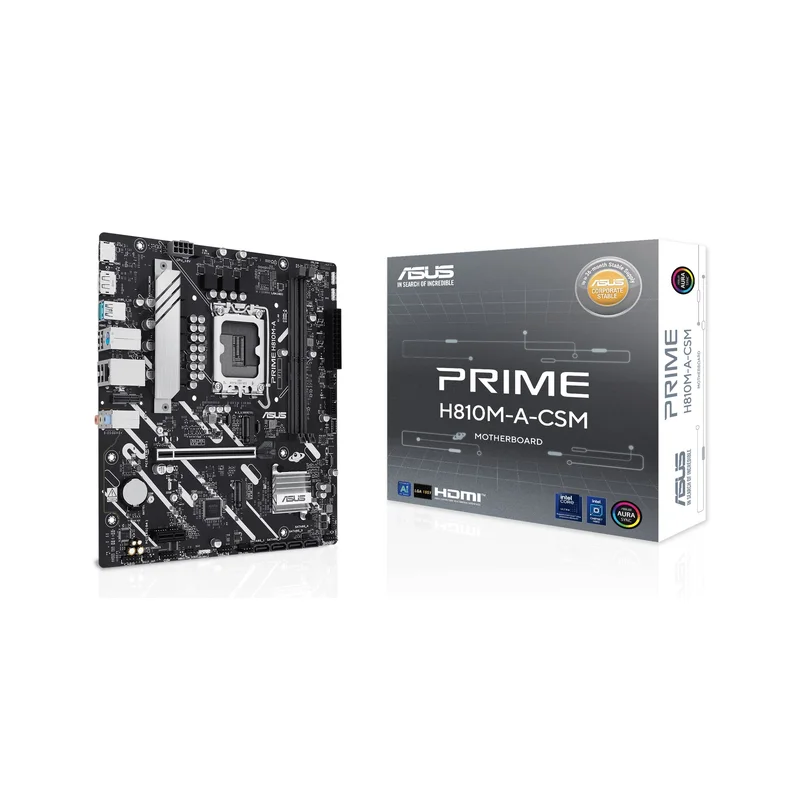

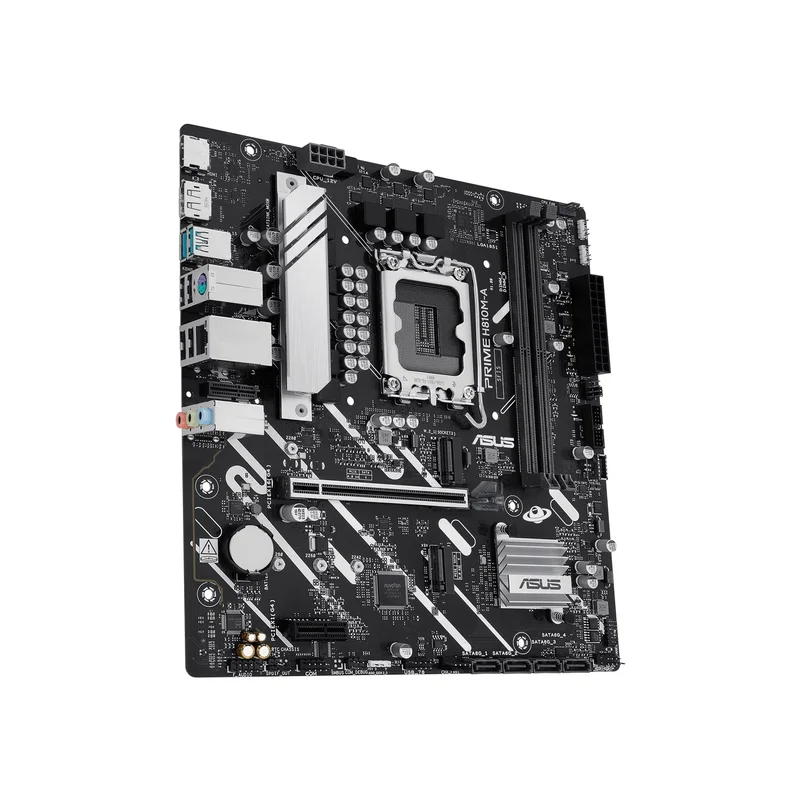

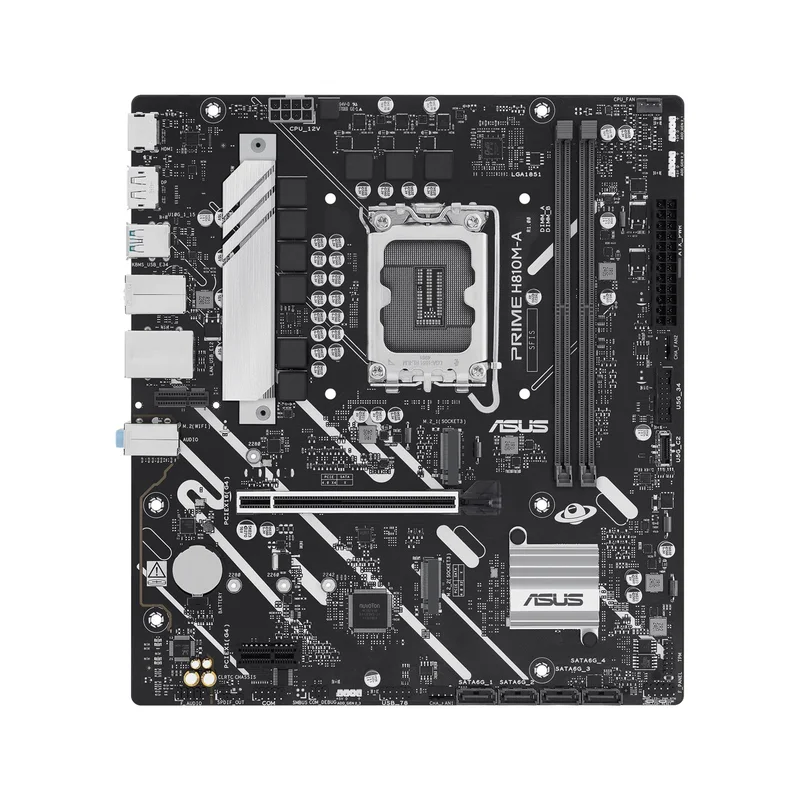

ASUS PRIME H810M-A-CSM Intel H810 LGA 1851 (Socket V1) micro ATX motherboard
Technical specifications
| Number of M.2 (M) slots | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Motherboard form factor | micro ATX |
| Weight | 534 g |
| ATX Power connector (24-pin) | Yes |
| Wake-on-LAN ready | Yes |
| Supported storage drive types | HDD & SSD |
| Package weight | 782 g |
| DisplayPort version | 1.4 |
| CPU fan connector | Yes |
| Audio output channels | 7.1 channels |
| Front panel audio connector | Yes |
| Windows operating systems supported | Windows 11 |
| Maximum internal memory | 128 GB |
| Windows operating systems supported | Windows 10 x64 |
| Front panel connector | Yes |
| EPS power connector (8-pin) | Yes |
| USB 2.0 connectors | 1 |
| Number of chassis fan connectors | 2 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Motherboard chipset family | Intel |
| Number of SATA III connectors | 4 |
| Unbuffered memory | Yes |
| Parallel processing technology support | Not supported |
| DisplayPorts quantity | 1 |
| Product colour | Black |
| Supported processor sockets | LGA 1851 |
| Package width | 270 mm |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of COM connectors | 1 |
| S/PDIF out connector | Yes |
| LAN controller | Intel I219V |
| USB 2.0 ports quantity | 4 |
| BIOS type | UEFI AMI |
| Power source type | ATX |
| Motherboard chipset | Intel H810 |
| Processor socket | LGA 1851 (Socket V1) |
| Wi-Fi | No |
| On-board graphics card | No |
| Memory channels | Dual-channel |
| Package height | 51.5 mm |
| HDMI ports quantity | 1 |
| Number of M.2 (E) slots | 1 |
| HDMI version | 2.1 |
| TPM connector | Yes |
| Width | 244 mm |
| Number of HDDs supported | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Depth | 222 mm |
| Number of memory slots | 2 |
| Height | 37 mm |
| Number of storage drives supported | 6 |
| Supported memory clock speed (max) | 6400 MHz |
| PS/2 ports quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Line-in | Yes |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| PCI Express x1 (Gen 4.x) slots | 1 |
| RGB LED pin header | Yes |
| Microphone in | Yes |
| Package depth | 263 mm |
| Ethernet LAN | Yes |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| Warnings | Do not open or modify the motherboard to prevent damage. |
| Number of RGB LED pin headers | 3 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 largest key size | 2280 |
| Warnings | In case of installation problems, contact a qualified service technician. |
| ECC сompatibility | Non-ECC |
| Number of EPS power connectors (8-pin) | 1 |
| Warnings | When disposing of the product, follow local regulations for the recycling of electronics. |
| Number of CPU fan connectors | 1 |
