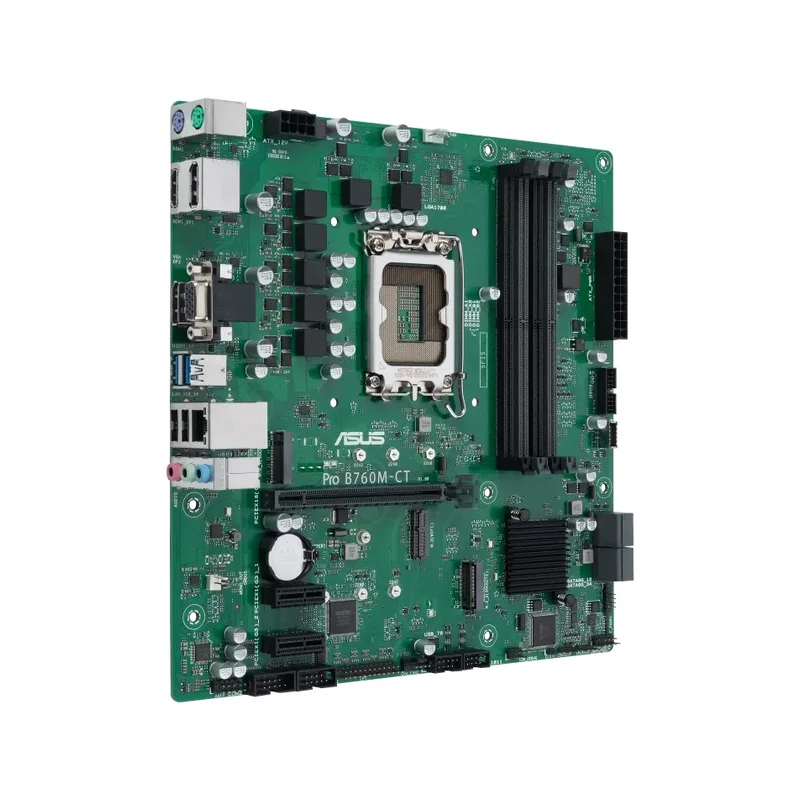

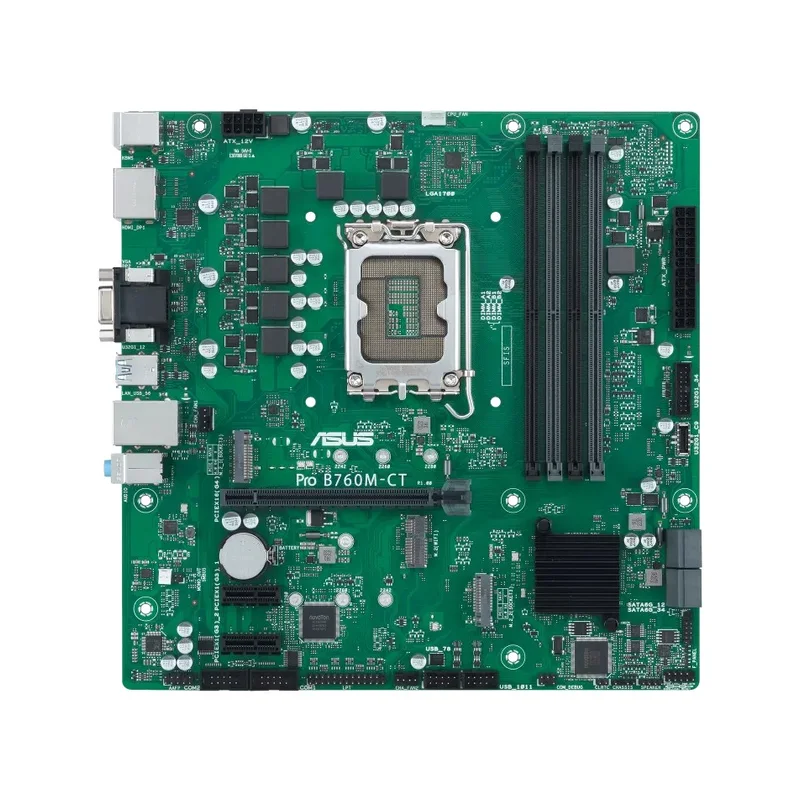

Asus PRO B760M-CT-CSM motherboard
Technical specifications
| Number of SATA III connectors | 4 |
|---|---|
| Audio connector | Yes |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64 |
| CPU fan connector | Yes |
| Windows operating systems supported | Windows 11 |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 6200 |
| Supported memory clock speeds | 5800 |
| Supported memory clock speeds | 5400 |
| Supported memory clock speeds | 5200 |
| Maximum internal memory | 192 GB |
| Supported processor sockets | LGA 1700 |
| Front panel audio connector | Yes |
| Supported memory clock speeds | 4800 |
| Supported memory clock speeds | 5600 |
| Supported memory clock speeds | 5000 |
| USB 2.0 connectors | 2 |
| Clear CMOS button | Yes |
| Product colour | Green |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel B760 |
| Processor manufacturer | Intel |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Compatible processor series | Intel® Core™ i7 |
| Compatible processor series | Intel® Core™ i9 |
| Compatible processor series | Intel® Pentium® Gold |
| Compatible processor series | Intel® Core™ i5 |
| Compatible processor series | Intel® Celeron® |
| Number of M.2 (M) slots | 2 |
| Supported storage drive types | HDD & SSD |
| Number of COM connectors | 3 |
| Motherboard form factor | micro ATX |
| Unbuffered memory | Yes |
| Number of chassis fan connectors | 2 |
| Compatible processor series | Intel® Core™ i3 |
| Supported storage drive interfaces | M.2, SATA III |
| Processor socket | LGA 1700 |
| Width | 244 mm |
| Chassis intrusion connector | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Number of memory slots | 4 |
| PS/2 ports quantity | 2 |
| Supported memory clock speeds | 6000 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| USB 2.0 ports quantity | 2 |
| Depth | 244 mm |
| Ethernet LAN | Yes |
| Supported memory clock speed (max) | 6200 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Ethernet interface type | Gigabit Ethernet |
