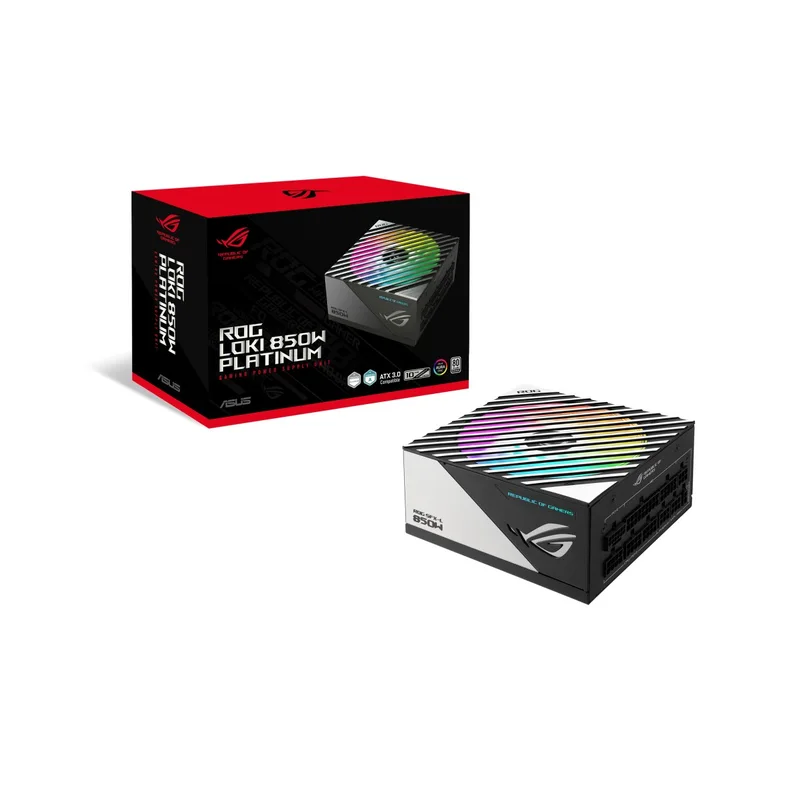

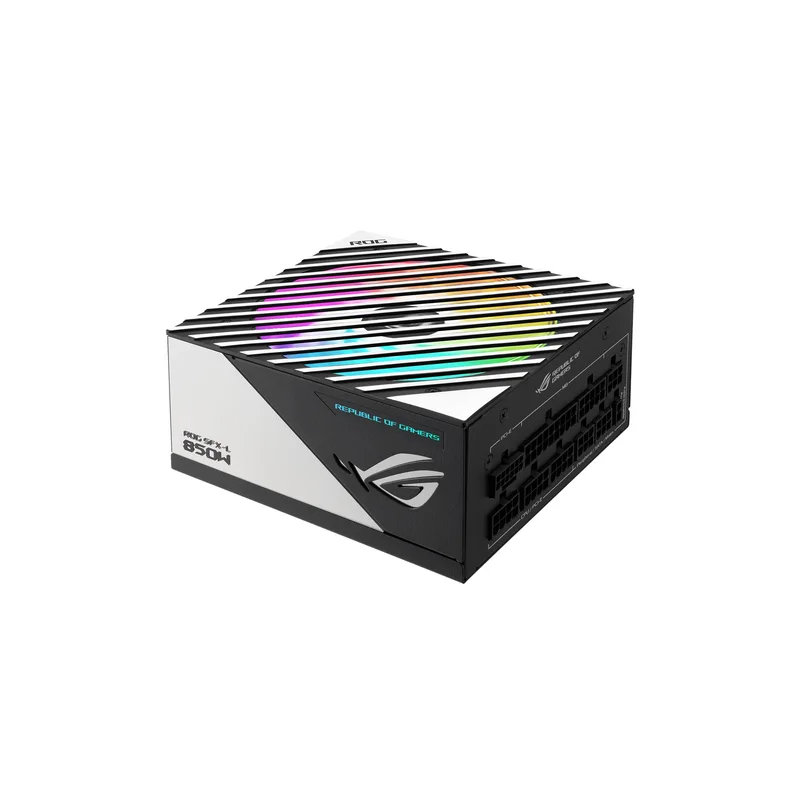

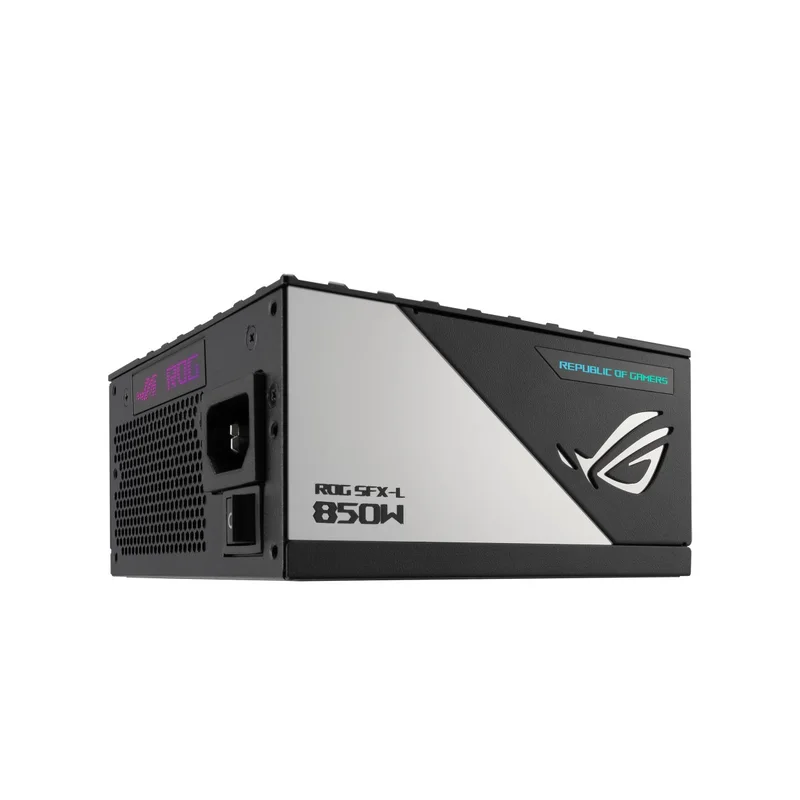

ASUS ROG Loki SFX-L 850W Platinum power supply unit 24-pin ATX Black, Silver
Technical specifications
| Certification | OPP/OVP/UVP/SCP/OCP/OTP |
|---|---|
| Weight | 1.81 kg |
| Package weight | 2.5 kg |
| Product colour | Black |
| AC input voltage | 100 – 240 V |
| Product colour | Silver |
| Package type | Box |
| Number of SATA power connectors | 6 |
| Total power | 850 W |
| Max output current (+5Vsb) | 2.5 A |
| Silent mode | Yes |
| Depth | 125 mm |
| Max output current (-12V) | 0.8 A |
| Fan diameter | 12 cm |
| Height | 63.5 mm |
| ATX version | 3.1 |
| Purpose | PC |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| 80 PLUS certification | 80 PLUS Platinum |
| Combined power (+3.3V) | 110 W |
| Number of fans | 1 fan(s) |
| Motherboard power connector | 24-pin ATX |
| Package height | 100 mm |
| Combined power (+12V) | 850 W |
| Supported motherboard form factors | ATX |
| Illumination | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
| Cooling type | Active |
| Package width | 285 mm |
| Max output current (+12V) | 70.8 A |
| Combined power (+5Vsb) | 12.5 W |
| PCI Express power connectors (8-pin) | 3 |
| Combined power (+5V) | 110 W |
| Max output current (+5V) | 20 A |
| Width | 125 mm |
| Package depth | 190 mm |
| Power supply unit (PSU) form factor | SFX-L |
| Combined power (-12V) | 9.6 W |
| Max output current (+3.3V) | 20 A |
| Compliance certificates | RoHS |
| Warnings | Do not open the case – risk of electric shock. |
| Warnings | Avoid contact of the product with water or other liquids. |
| Warnings | The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations. |
| PCI Express power connectors (16-pin) | 1 |
