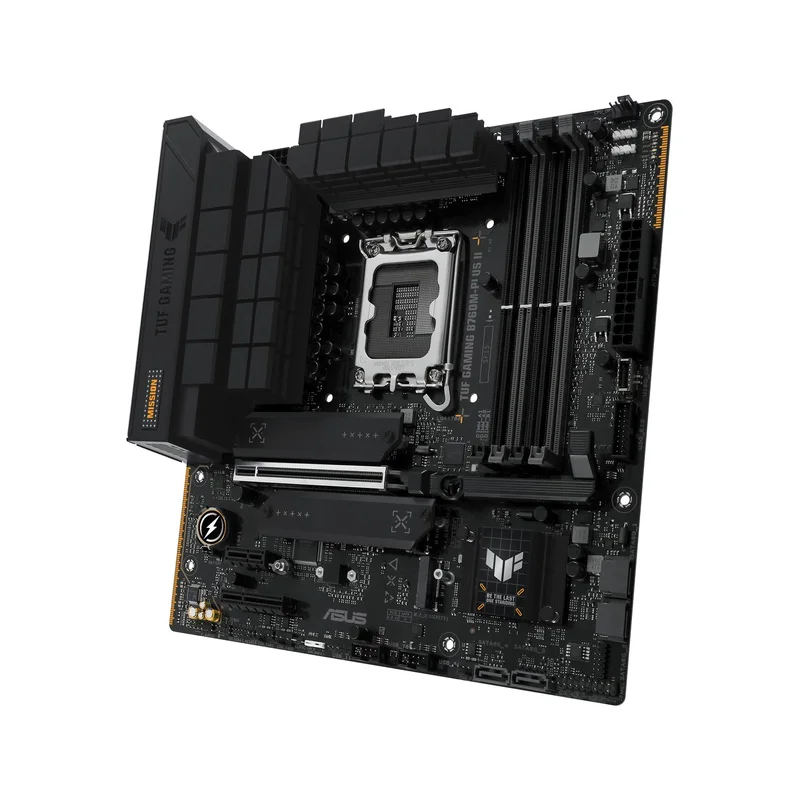

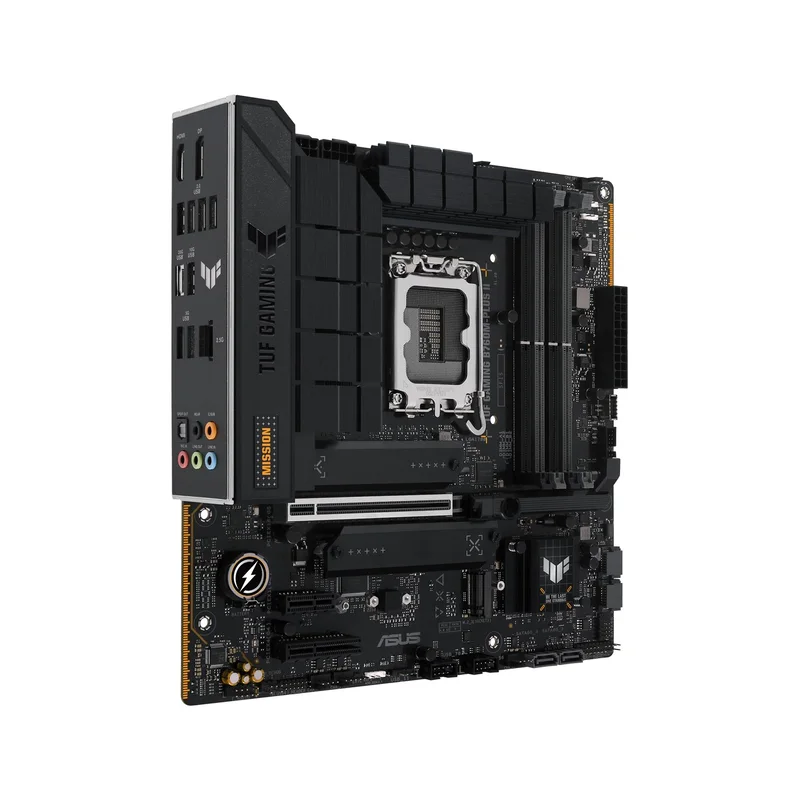

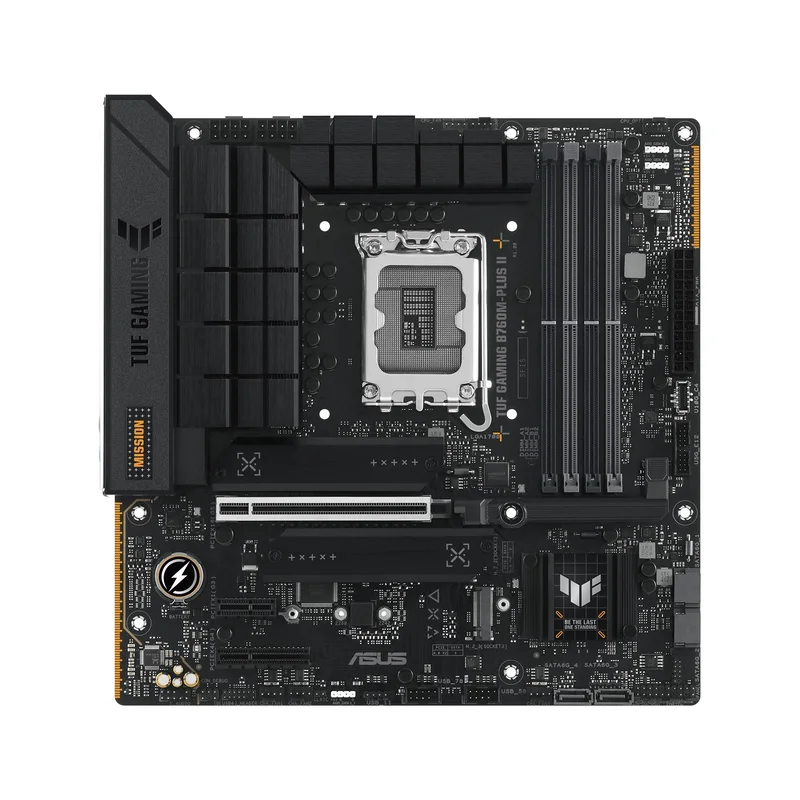

ASUS TUF GAMING B760M-PLUS II Intel B760 LGA 1700 micro ATX
Technical specifications
| ECC сompatibility | Non-ECC |
|---|---|
| Warnings | Before starting any maintenance or installation, disconnect the product from the power supply. |
| Warnings | Avoid direct contact with electronics to prevent electrostatic damage. |
| Warnings | Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
| 12V power connector | Yes |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Motherboard chipset | Intel B760 |
| Motherboard form factor | micro ATX |
| Screws included | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| DisplayPorts quantity | 1 |
| Thunderbolt headers | 1 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported memory clock speeds | 7400 |
| Number of HDDs supported | 4 |
| Supported memory clock speeds | 7000 |
| Supported memory clock speeds | 5200 |
| Maximum internal memory | 192 GB |
| Supported memory clock speeds | 6600 |
| Supported memory clock speed (max) | 7800 MHz |
| Motherboard chipset family | Intel |
| Supported memory clock speeds | 5000 |
| Supported memory clock speeds | 6800 |
| Audio output channels | 7.1 channels |
| USB 3.2 Gen 2×2 Type-C ports quantity | 1 |
| Supported memory clock speeds | 6000 |
| Supported storage drive types | HDD & SSD |
| Supported memory clock speeds | 4800 |
| Supported memory clock speeds | 7600 MHz |
| Supported memory clock speeds | 7800 |
| S/PDIF out port | Yes |
| Supported memory clock speeds | 6200 |
| Supported memory clock speeds | 5800 |
| Supported memory clock speeds | 5400 |
| Supported memory clock speeds | 6400 |
| Supported memory clock speeds | 5600 |
| Supported memory clock speeds | 7200 |
| USB 2.0 connectors | 3 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| Unbuffered memory | Yes |
| PCI Express x16 (Gen 5.x) slots | 1 |
| RAID levels | 0 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| ATX Power connector (24-pin) | Yes |
| RAID levels | 1 |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| RAID levels | 5 |
| USB 2.0 ports quantity | 4 |
| Compatible processor series | Intel® Core™ i5 |
| Compatible processor series | Intel® Celeron® |
| Number of SATA III connectors | 4 |
| Compatible processor series | Intel® Core™ i3 |
| RAID levels | 10 |
| Number of storage drives supported | 7 |
| Compatible processor series | Intel® Core™ i7 |
| Compatible processor series | Intel® Core™ i9 |
| Compatible processor series | Intel® Pentium® Gold |
| Processor manufacturer | Intel |
| RAID support | Yes |
| Package width | 280 mm |
| EPS power connector (8-pin) | Yes |
| Memory channels | Dual-channel |
| Wi-Fi | No |
| Front panel audio connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| CPU fan connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Height | 50 mm |
| Windows operating systems supported | Windows 11 |
| Cables included | SATA |
| Package weight | 1.65 kg |
| BIOS type | UEFI AMI |
| Windows operating systems supported | Windows 10 x64 |
| Weight | 982 g |
| Ethernet LAN | Yes |
| Package depth | 265 mm |
| Package height | 71 mm |
| Depth | 244 mm |
| Number of chassis fan connectors | 3 |
| Microphone in | Yes |
| Supported processor sockets | LGA 1700 |
| Number of M.2 (M) slots | 3 |
| Processor socket | LGA 1700 |
| Parallel processing technology support | Not supported |
| Width | 244 mm |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
