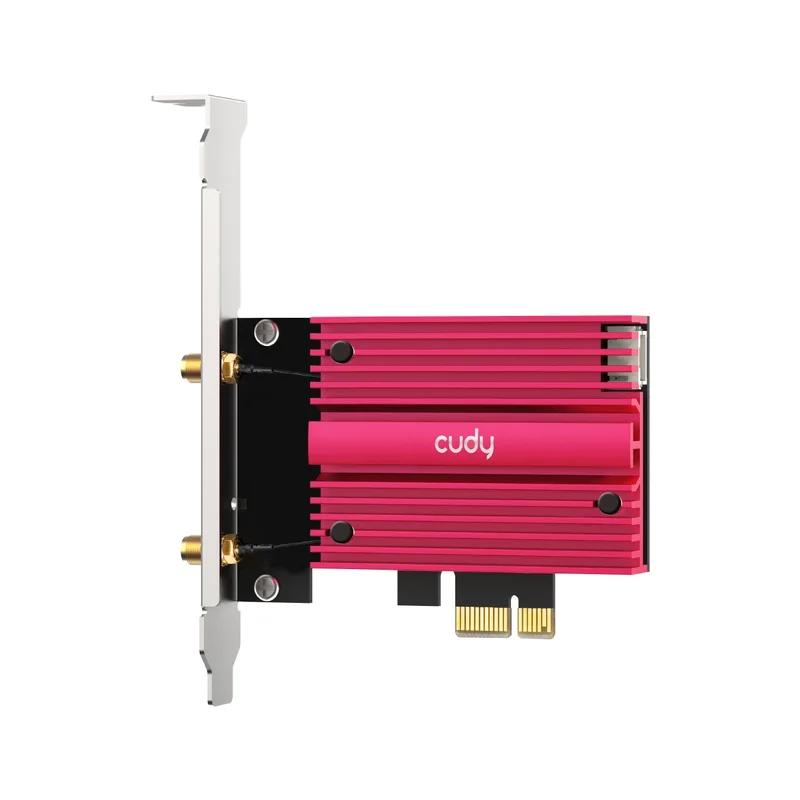

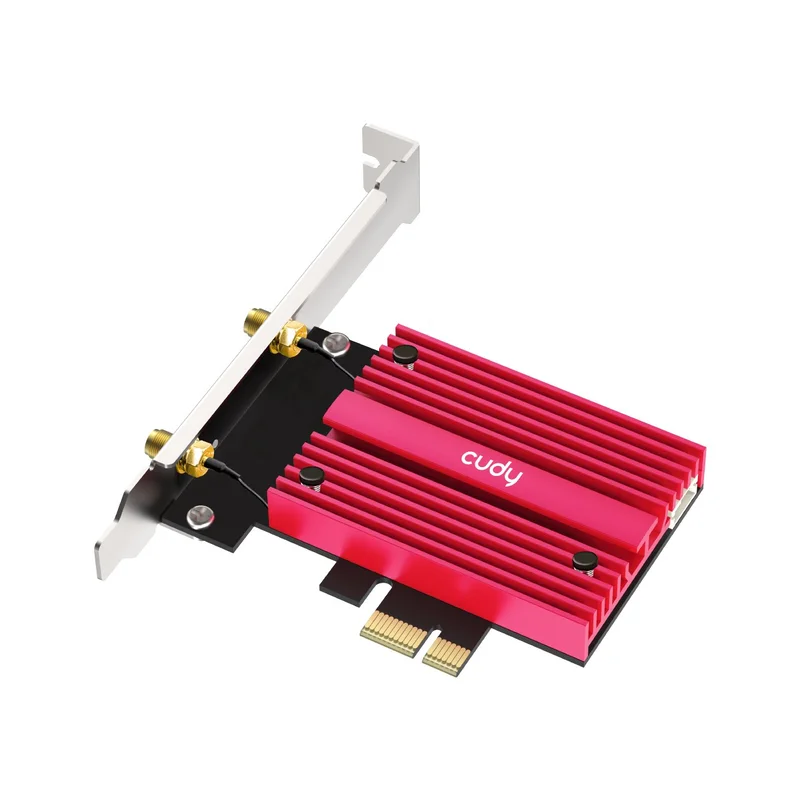

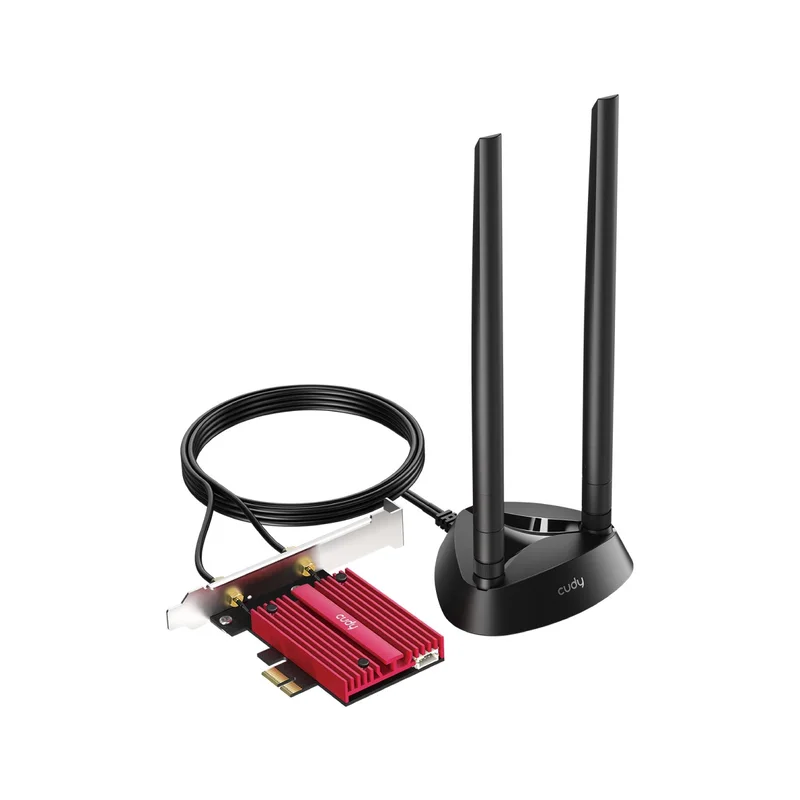

Cudy WE9300S network card Internal WLAN / Bluetooth 5765 Mbit/s
Technical specifications
| Antenna type | 2×2 |
|---|---|
| Depth | 98.4 mm |
| Bluetooth version | 5.4 |
| Operating relative humidity (H-H) | 10 – 90% |
| Width | 120.8 mm |
| Modulation | 4096-QAM |
| Internal | Yes |
| Quick installation guide | Yes |
| Networking standards | IEEE 802.11ax |
| Security algorithms | WPA |
| Storage relative humidity (H-H) | 5 – 95% |
| Security algorithms | WPA-PSK |
| Security algorithms | WPA3 |
| Networking standards | IEEE 802.11ac |
| Networking standards | IEEE 802.11be |
| Security algorithms | WPA2 |
| Interface | WLAN / Bluetooth |
| Height | 21.5 mm |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Host interface | PCI Express |
| Maximum data transfer rate | 5765 Mbit/s |
| Component for | PC |
| Mounting brackets included | Yes |
| Antenna gain level (max) | 4.21 dBi |
| Windows operating systems supported | Windows 11 |
| Bluetooth | Yes |
| Antenna | Yes |
| Storage temperature (T-T) | -40 – 70 °C |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Wi-Fi | Yes |
| Operating temperature (T-T) | 0 – 70 °C |
| Connectivity technology | Wireless |
| Compliance certificates | Federal Communications Commission (FCC) |
| Compliance certificates | CE |
| Antenna design | External |
