Описание

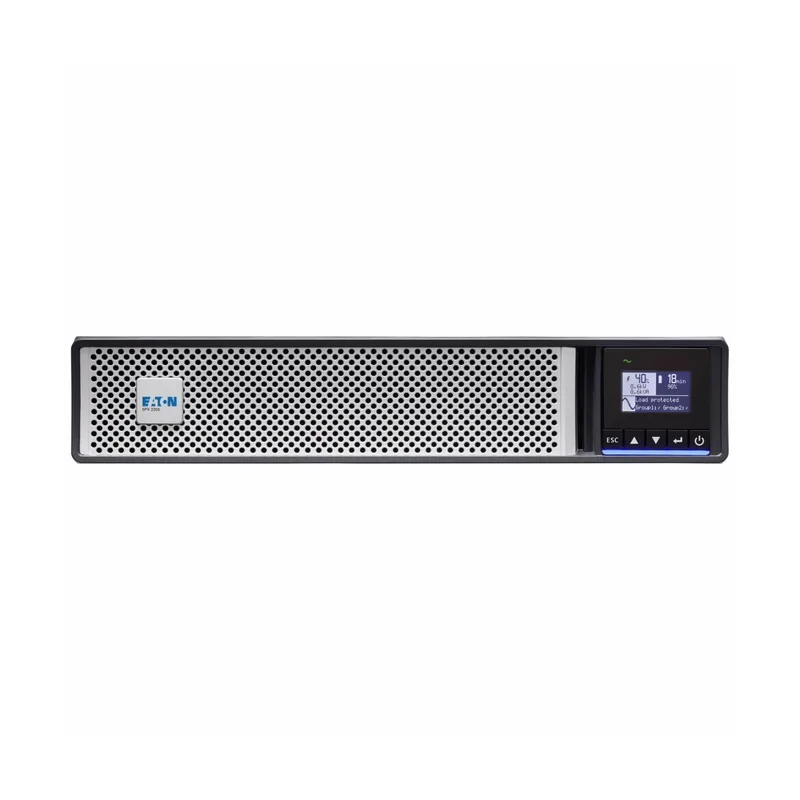

Eaton 5PX Gen2 uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 2200 W
Technical specifications
| Output connections | 8 x IEC C13 (10A) 2 x IEC C19 (16A) |
|---|---|
| Certification | IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm |
| Rack capacity | 2U |
| Product colour | Black |
| Weight | 28.2 kg |
| LED indicators | Yes |
| Height | 85.5 mm |
| Input frequency | 47/70 Hz |
| Noise level | 40 dB |
| Width | 438 mm |
| Operating temperature (T-T) | 0 – 40 °C |
| Serial ports quantity | 1 |
| Power protection features | Overdischarge |
| Power plug | C20 coupler |
| USB port | Yes |
| Automatic battery test | Yes |
| Output power | 2200 W |
| Form factor | Rackmount/Tower |
| Output power capacity | 2.2 kVA |
| Depth | 603 mm |
| Serial interface type | RS-232 |
| Harmonized System (HS) code | 85078000 |
| Management card included | Yes |
| Sustainability compliance | Yes |
| Sustainability certificates | CE |
| Safety | IEC/EN 62040-1, UL1778, CSA22.2 |
| Nominal output voltage | 230 V |
| Input operation voltage (max) | 294 V |
| Display type | LCD |
| Waveform | Pure sine |
| Serial interface | Yes |
| AC outlet types | C13 coupler |
| Input operation voltage (min) | 160 V |
| AC outlet types | C19 coupler |
| UPS topology | Line-Interactive |
