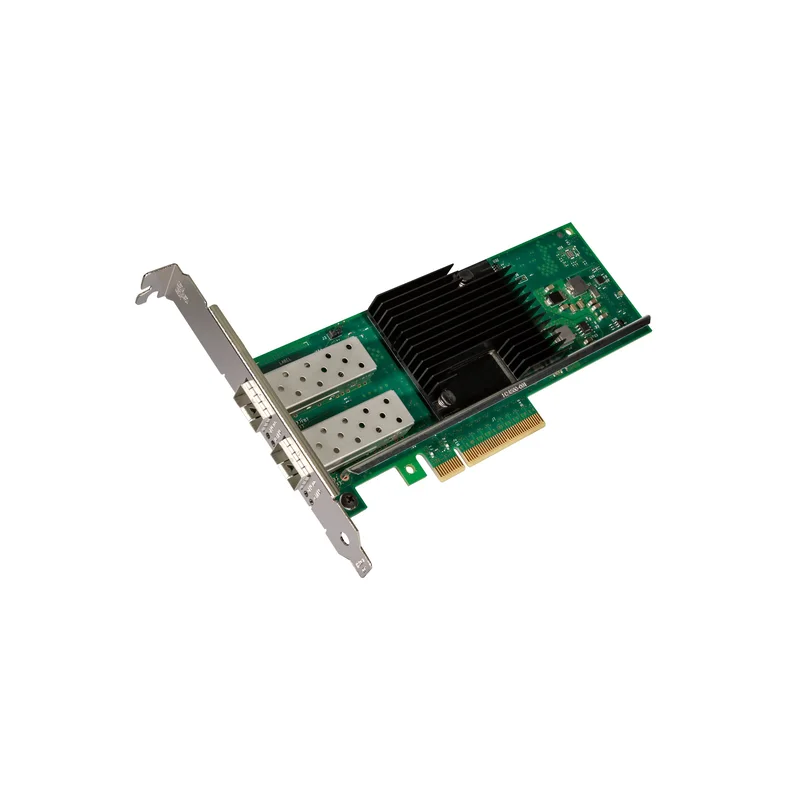

Intel X710DA2 network card Internal Fiber 10000 Mbit/s
Technical specifications
| Certification | FCC B, UL, CE, VCCI, BSMI, CTICK, KCC |
|---|---|
| Compatible operating systems | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Intel Ethernet Power Management | Yes |
| Fiber ethernet cabling technology | 10GBASE-LR |
| Export Control Classification Number (ECCN) | 5A991 |
| Product codename | Fortville |
| iSCSI support | Yes |
| Market segment | Server |
| Harmonized System (HS) code | 85176990 |
| Speed & slot width | 8.0 GT/s, x8 Lane |
| Intel Flexible Port Partitioning | Yes |
| Fiber ethernet cabling technology | 10GBASE-SR |
| Other operating systems supported | FreeBSD |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Product family | Intel 10 Gigabit server adapter |
| Fiber optic connector | SFP+ |
| Network interface card cable medium | Copper |
| PCI-SIG* SR-IOV Capable | Yes |
| Flow control support | Yes |
| Management protocols | PXE, SNMP, RMON |
| Number of VLANs | 4096 |
| Product series | 700 Series Network Adapters (up to 40GbE) |
| Cabling type | SFP+ Direct Attached Twinaxial Cabling up to 10m |
| Controller type | Intel® Ethernet Controller X710 |
| Launch date | Q4'14 |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Storage Over Ethernet | iSCSI, NFS |
| On-chip QoS and Traffic Management | Yes |
| Intelligent Offloads | Yes |
| PCI version | 3.0 |
| PCI Card form factor | Full-height (low-profile) |
| iWARP/RDMA | No |
| Product brief URL | https://cdrdv2.intel.com/v1/dl/getContent/641693 |
| Chipset | X710-AM2 |
| Intel Data Direct I/O Technology | Yes |
| VLAN tagging | Yes |
| Bracket height | Low-Profile (LP) / Full-Height (FH) |
| Target market | Artificial Intelligence, High Performance Computing |
| Operating temperature (T-T) | 0 – 55 °C |
| Interface type | PCIe v3.0 (8.0 GT/s) |
| Server operating systems supported | Windows Server 2008 R2 |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.1Q |
| Internal | Yes |
| Storage temperature (T-T) | -40 – 70 °C |
| Product colour | Green |
| Product colour | Black |
| LED indicators | Yes |
| LAN controller | Intel® X710 |
| Host interface | PCI Express |
| Server operating systems supported | Windows Server 2012 R2 |
| Networking standards | IEEE 802.1as |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.1p |
| Ethernet LAN (RJ-45) ports | 2 |
| Storage relative humidity (H-H) | 35 – 90% |
| Intel® Virtualization Technology (Intel® VT) | VT-c |
| Ethernet interface type | 10 Gigabit Ethernet |
| Processor family | 700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE) |
| Width | 68.6 mm |
| Server operating systems supported | Windows Server 2012 |
| Cable type | SFP+ Direct Attached Twinaxial Cabling up to 10m |
| Interface | Fiber |
| Ethernet interface type | Gigabit Ethernet |
| Fiber ports quantity | 2 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Embedded options available | No |
| Ethernet LAN data rates | 10000 Mbit/s |
| Power consumption (typical) | 4.5 W |
| Intel Trusted Execution Technology | No |
| Status | Launched |
| Product type | Network Interface Card |
| Maximum data transfer rate | 10000 Mbit/s |
| Last change | 64826824 |
| Linux operating systems supported | RedHat EL Linux 6.0 |
| Ethernet LAN | Yes |
| Maximum operating distance | 10 m |
| Supported network protocols | TCP, UDP, IP |
| Depth | 167.1 mm |
| Connectivity technology | Wired |
