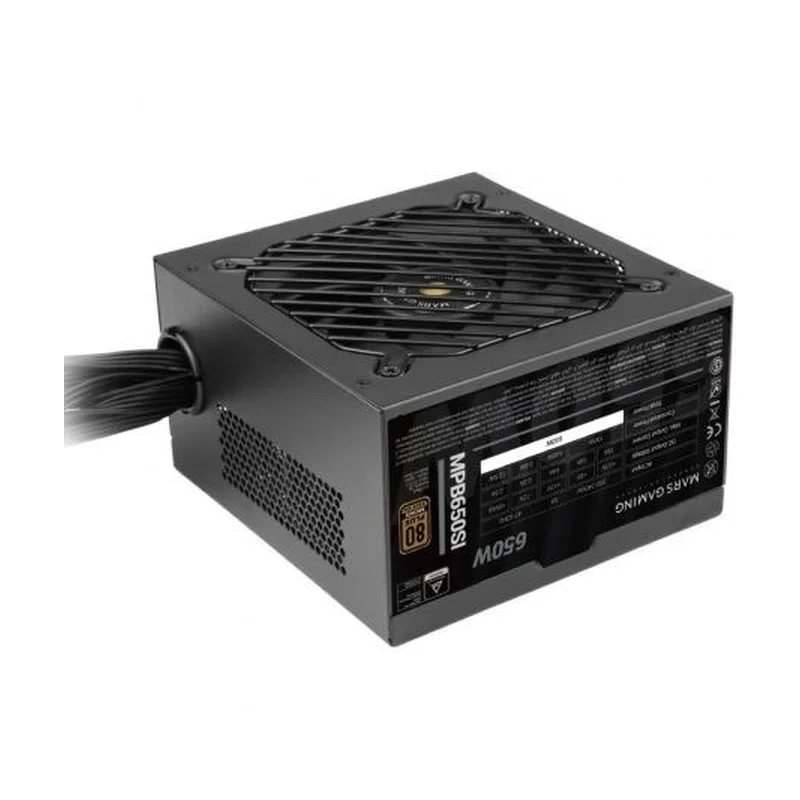

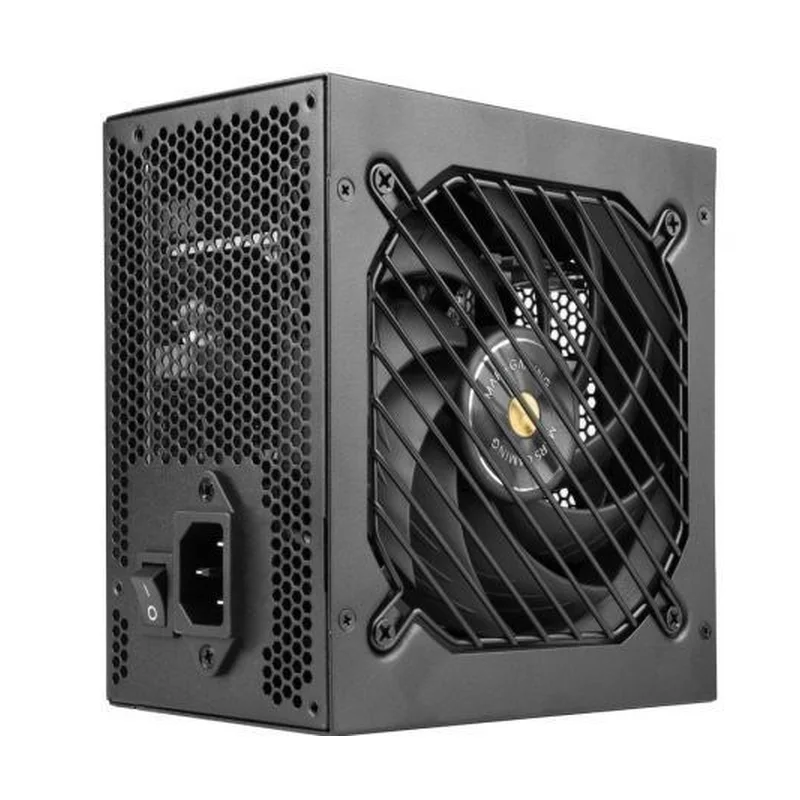

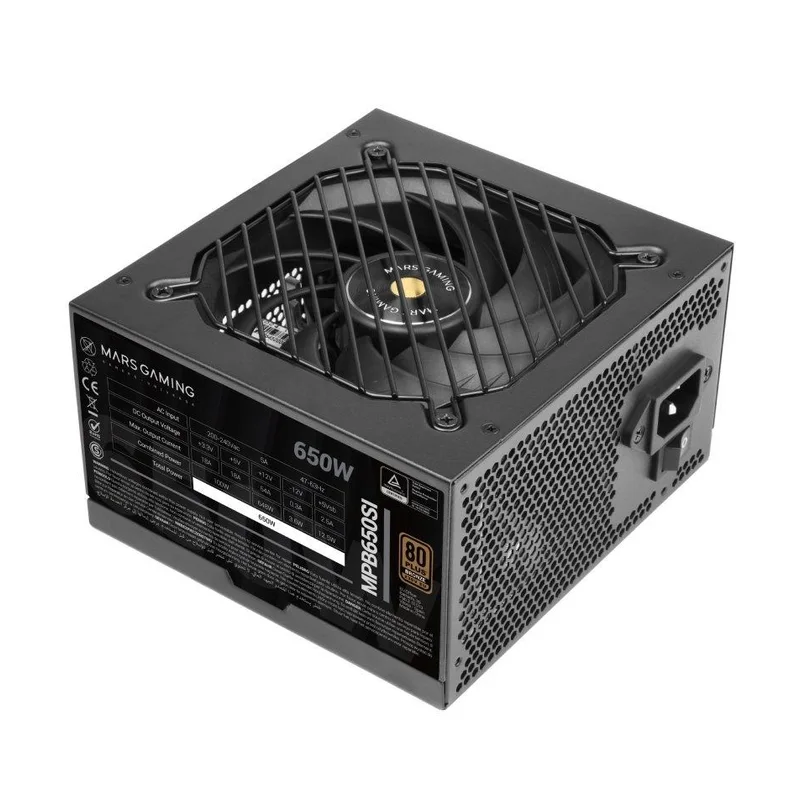

Mars Gaming MPB650SI power supply unit 650 W 24-pin ATX ATX Black
Technical specifications
| Certification | CE, RoHS, TUV |
|---|---|
| Product colour | Black |
| Package depth | 240 mm |
| Power supply unit (PSU) form factor | ATX |
| Combined power (+5V) | 100 W |
| Width | 150 mm |
| Max output current (+3.3V) | 18 A |
| Package weight | 1.66 kg |
| Height | 85 mm |
| Max output current (+12V) | 54 A |
| Cabling type | Non-Modular |
| Purpose | PC |
| Weight | 1.5 kg |
| Power Factor Correction (PFC) type | Active |
| AC input frequency | 47 – 63 Hz |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 2 |
| Fan location | Top |
| Combined power (+12V) | 648 W |
| Efficiency | 90% |
| Depth | 145 mm |
| Number of SATA power connectors | 5 |
| Combined power (+3.3V) | 100 W |
| Max output current (-12V) | 0.3 A |
| Package width | 205 mm |
| Max output current (+5Vsb) | 2.5 A |
| Cooling type | Active |
| AC input voltage | 220 – 240 V |
| Combined power (+5Vsb) | 12.5 W |
| Input current | 5 A |
| Total power | 650 W |
| CPU power connector (4+4 pin) | Yes |
| Max output current (+5V) | 18 A |
| Noise level | 12 dB |
| Combined power (-12V) | 3.6 W |
| Fan diameter | 12 cm |
| Power protection features | Over power |
| Power protection features | Under voltage |
| Power protection features | Over current |
| Power protection features | Short circuit |
| Power protection features | Over voltage |
| Motherboard power connector | 24-pin ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Number of fans | 1 fan(s) |
| Package height | 125 mm |
