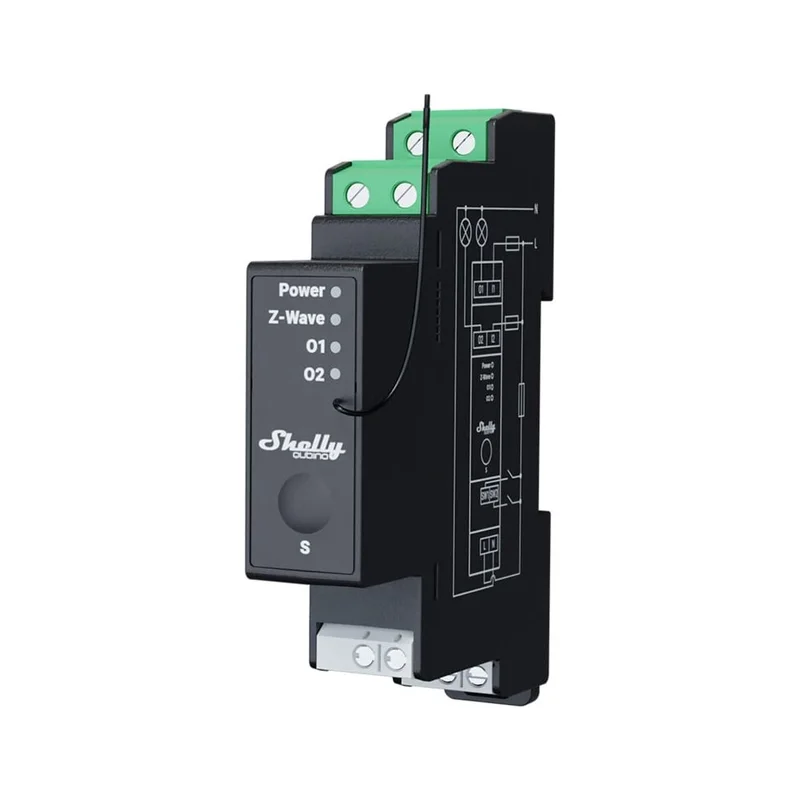

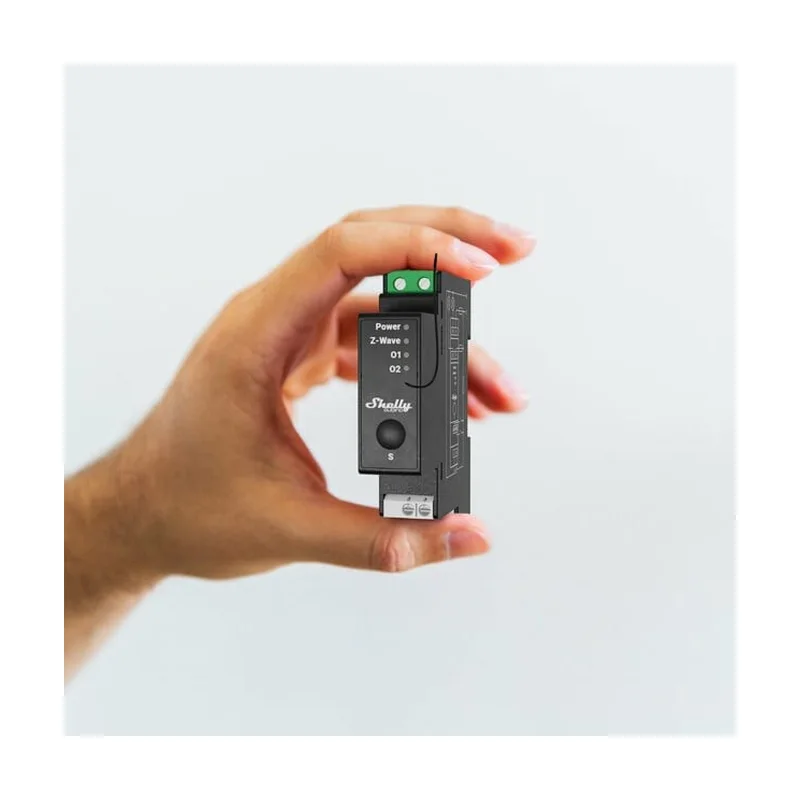

Shelly Qubino Wave Pro 2PM electrical relay Black
Technical specifications
| AC input frequency | 50/60 Hz |
|---|---|
| Maximum indoor range | 40 m |
| Remotely operated | Yes |
| LED indicators | Yes |
| Operating temperature (T-T) | -20 – 40 °C |
| Overheat protection | Yes |
| Number of modules | 1 |
| AC input voltage | 110 – 240 V |
| Operating relative humidity (H-H) | 30 – 70% |
| Product colour | Black |
| Transmission range | 0 – 40 m |
| Frequency band | 868.4 GHz |
| Overload protection | Yes |
| Maximum current | 25 A |
| Weight | 75 g |
| Dimensions (WxDxH) | 19 x 69 x 94 mm |
| Channels quantity | 2 channels |
| DIN rail mounting | Yes |
| Transmit power | 25 mW |
| Integrated energy meter | Yes |
| Weekly schedule | Yes |
| Cable section | 0.5 – 2.5 mm² |
| Product type | Smart relay |
| Housing material | Plastic |
| Power consumption (typical) | 0.3 W |
