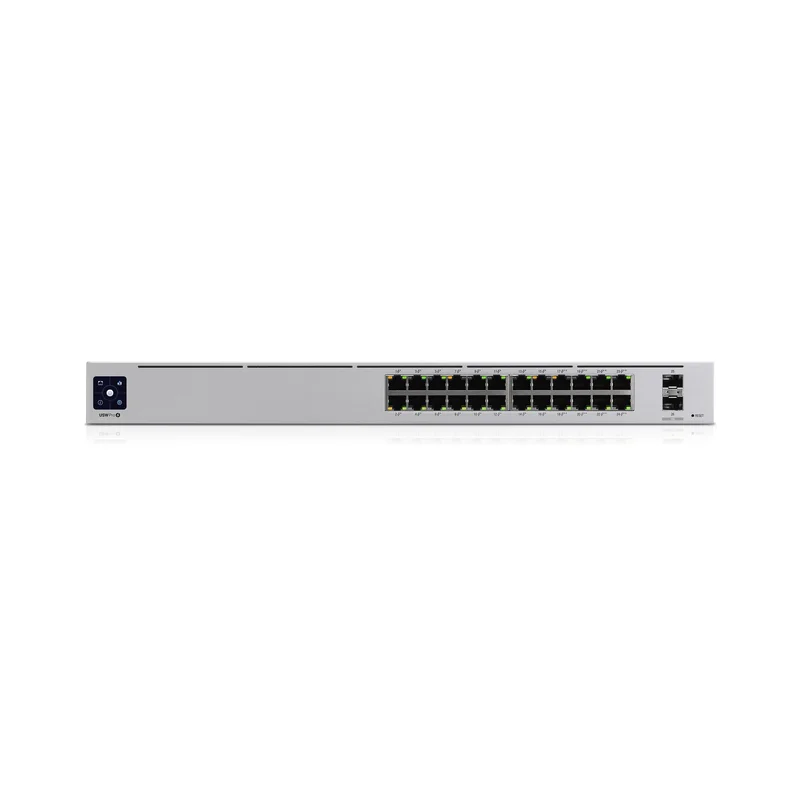

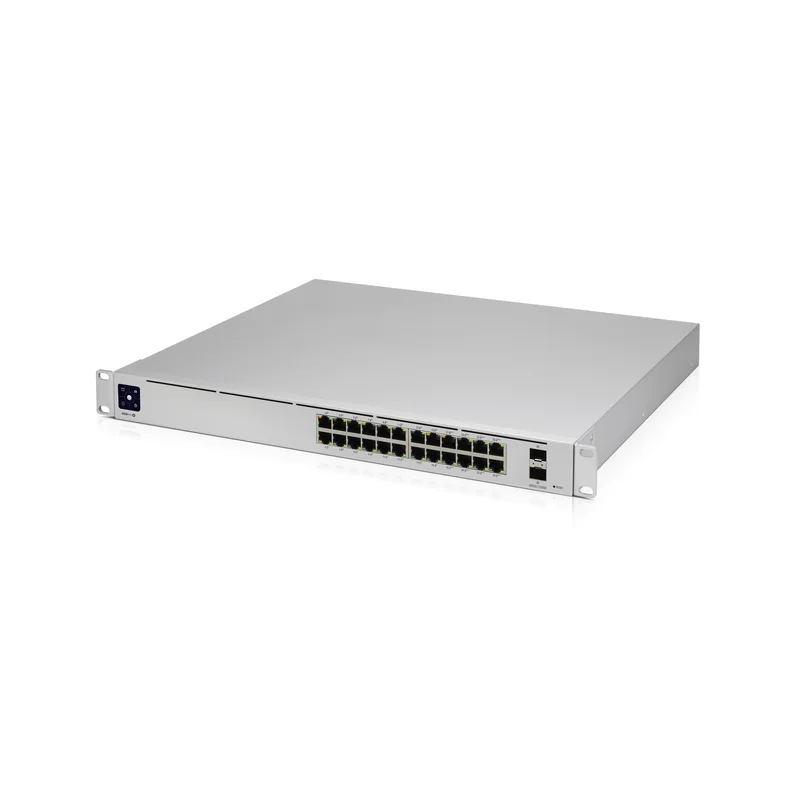

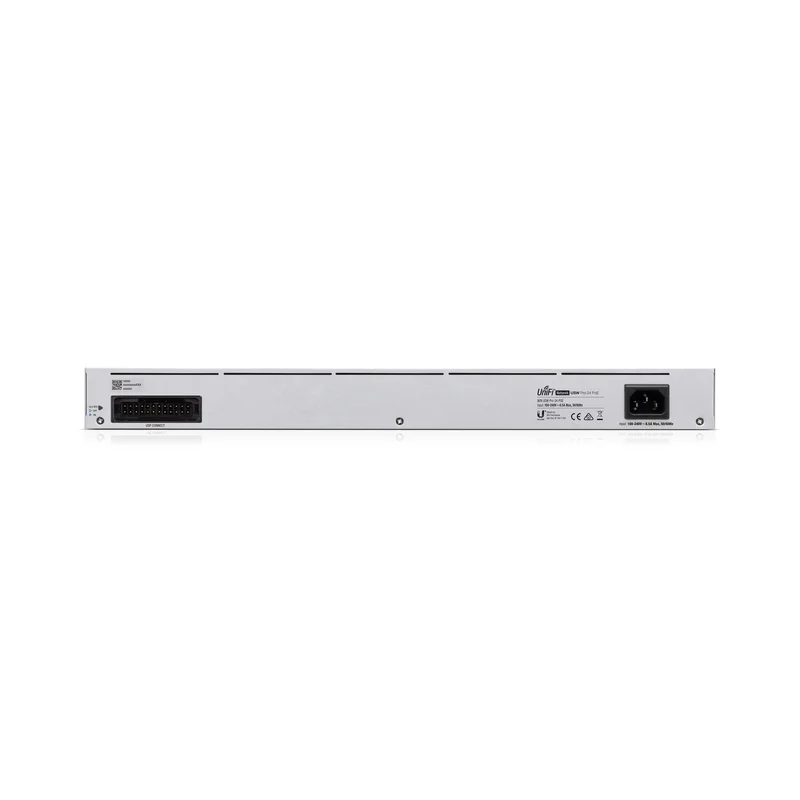

Ubiquiti UniFi Pro 24-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver
Technical specifications
| Certification | CE, FCC, IC |
|---|---|
| Operating temperature (T-T) | -5 – 40 °C |
| Form factor | 1U |
| Depth | 285.4 mm |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 400 W |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.3af |
| Redundant power supply (RPS) support | Yes |
| Reset button | Yes |
| Web-based management | Yes |
| Weight | 4.3 kg |
| Power source | AC |
| Rack mounting | Yes |
| Product colour | Silver |
| Quality of Service (QoS) support | Yes |
| Power consumption (max) | 450 W |
| Height | 43.7 mm |
| Width | 442.4 mm |
| Operating relative humidity (H-H) | 10 – 90% |
| AC input frequency | 50 – 60 Hz |
| Display type | LCM |
| LED indicators | Speed |
| AC input voltage | 100 – 240 V |
| LED indicators | Link |
| LED indicators | System |
| LED indicators | PoE |
| LED indicators | Activity |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Harmonized System (HS) code | 85176990 |
| IGMP snooping | Yes |
| Switch layer | L2/L3 |
| DHCP features | DHCP snooping |
| System event log | Yes |
| DHCP features | DHCP server |
| Static route | Yes |
| DHCP features | DHCP relay |
| Switching capacity | 88 Gbit/s |
| Packet buffer memory | 2 MB |
| Port mirroring | Yes |
| Power supply included | Yes |
| Power connector | AC-in jack |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Flow control support | Yes |
| Rate limiting | Yes |
| 10G support | Yes |
| Number of VLANs | 1000 |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| MAC address table | 16000 entries |
| Forwarding rate | 65.472 Mpps |
| Power over Ethernet (PoE) power per port | 64 W |
| VLAN support | Yes |
| IPv4 routes | 64 |
| Number of power supply units | 1 |
| SFP+ module slots quantity | 2 |
| Switch type | Managed |
| Jumbo frames support | Yes |
| Authentication type | IEEE 802.1x, RADIUS |
| Throughput | 44000 Mpps |
| Warnings | Avoid contact of the device with liquid. |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Warnings | Make sure the ventilation of the equipment is not blocked. |
| Warnings | Follow the safety guidelines for electrical current. |
