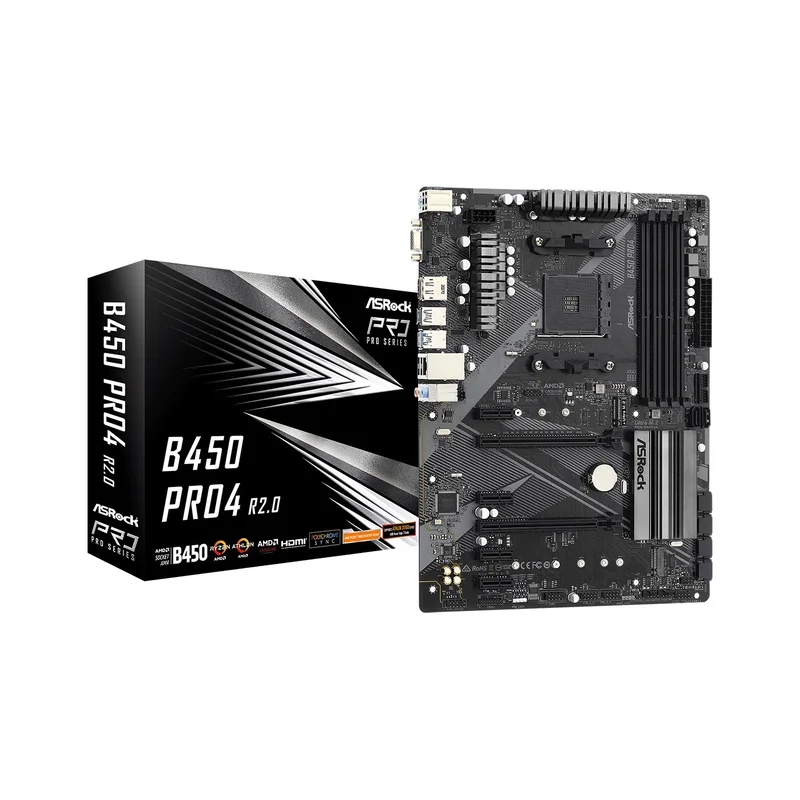

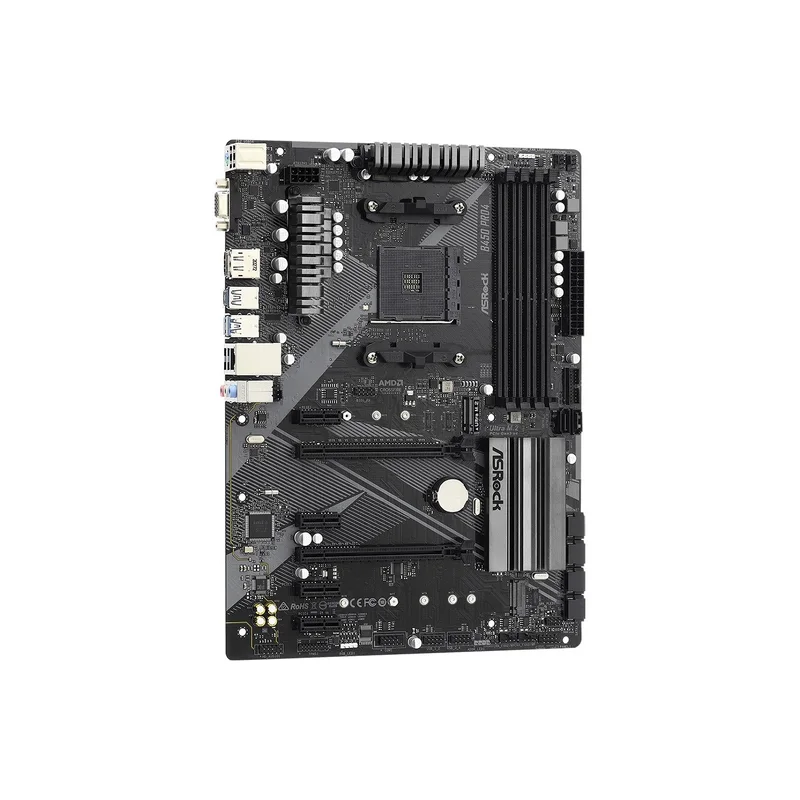

Asrock B450 Pro4 R2.0 Socket AM4 ATX AMD B450
Technical specifications
| LAN controller | Realtek RTL8111H |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 4 |
| TPM connector | Yes |
| Ethernet LAN | Yes |
| Plug and Play | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Number of memory slots | 4 |
| Wake-on-LAN ready | Yes |
| HDMI ports quantity | 1 |
| Motherboard form factor | ATX |
| PS/2 ports quantity | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| ATX Power connector (24-pin) | Yes |
| Processor manufacturer | AMD |
| Cables included | SATA |
| Processor thermal power (max) | 105 W |
| Compatible processor series | AMD Ryzen™ 3 |
| Graphics card family | AMD |
| Audio output channels | 7.1 channels |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of COM connectors | 1 |
| Drivers included | Yes |
| 12V power connector | Yes |
| Audio chip | Realtek ALC892 / Realtek ALC897 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Motherboard chipset family | AMD |
| Supported memory types | DDR4-SDRAM |
| USB 2.0 connectors | 2 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Compatible processor series | 2nd Generation AMD Ryzen™ 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Front panel audio connector | Yes |
| Compatible processor series | AMD Ryzen™ 7 |
| Maximum resolution | 4096 x 2160 pixels |
| USB 2.0 ports quantity | 2 |
| Compatible processor series | 3rd Generation AMD Ryzen™ 3 |
| Compatible processor series | 2nd Generation AMD Ryzen™ 5 |
| Processor socket | Socket AM4 |
| Number of displays supported | 3 |
| Compatible processor series | 3rd Generation AMD Ryzen™ 7 |
| Quick installation guide | Yes |
| Width | 305 mm |
| Compatible processor series | AMD Ryzen™ 5 |
| Number of SATA III connectors | 6 |
| Compatible processor series | 2nd Generation AMD Ryzen™ 7 |
| Compatible processor series | 3rd Generation AMD Ryzen™ 9 |
| Motherboard chipset | AMD B450 |
| DirectX version | 12.0 |
| Compatible processor series | AMD Athlon |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Supported memory clock speeds | 2400 |
| Supported memory clock speeds | 2133 |
| Depth | 224 mm |
| Supported memory clock speeds | 2933 |
| BIOS type | UEFI AMI |
| CPU fan connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Compatible processor series | 3rd Generation AMD Ryzen 5 |
| Supported memory clock speeds | 2667 |
| Maximum internal memory | 64 GB |
