Description

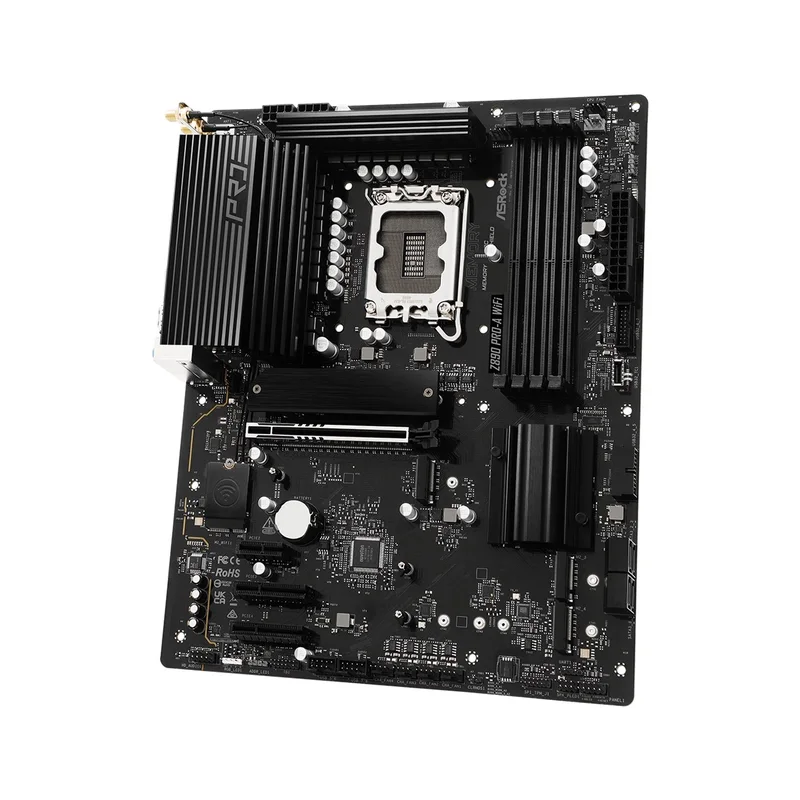

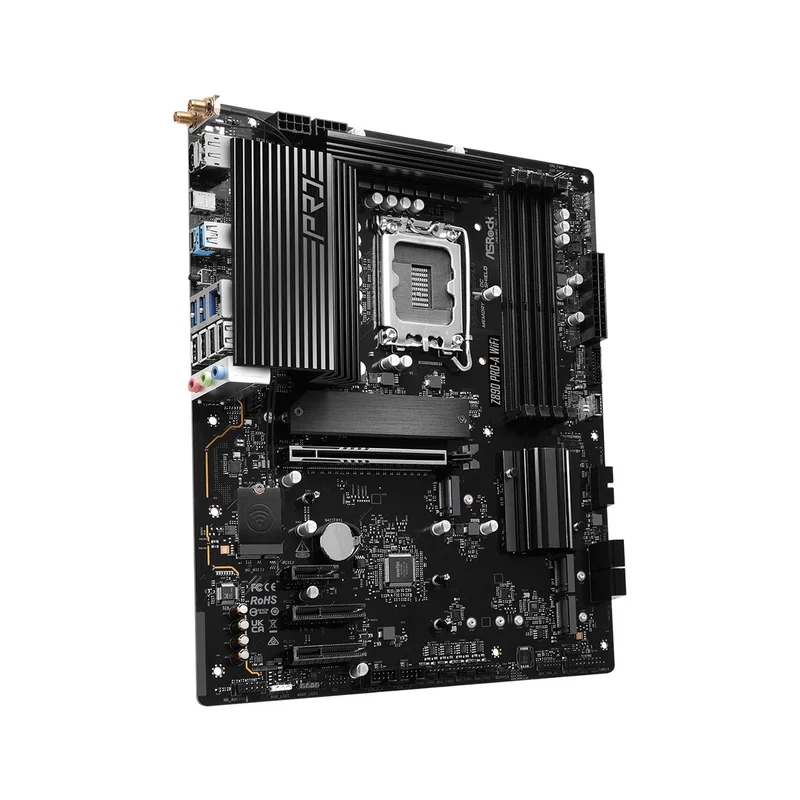

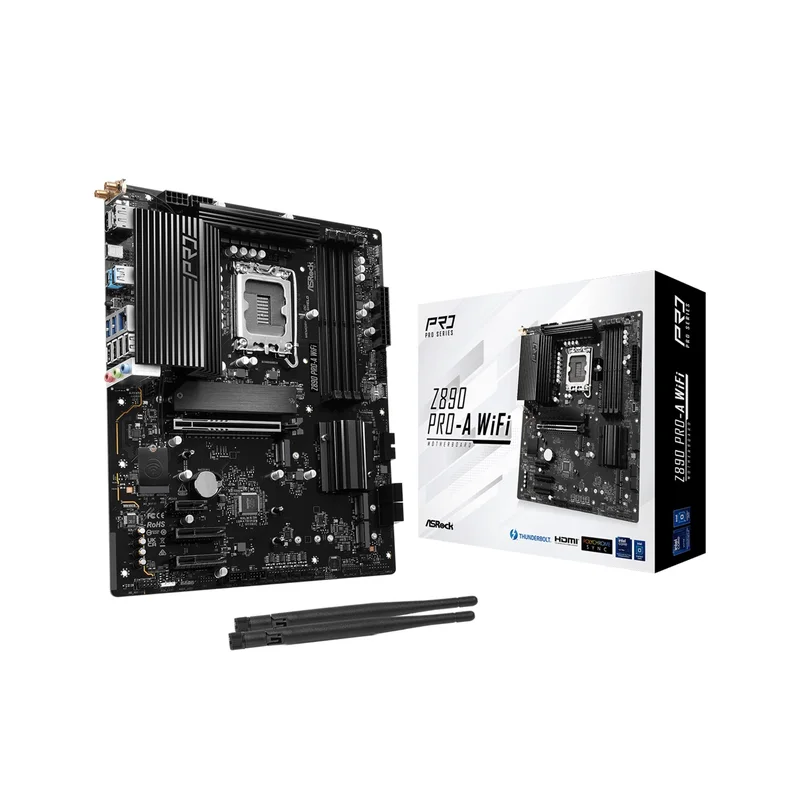

Asrock Z890 Pro-A WiFi Intel Z890 LGA 1851 (Socket V1) ATX
Technical specifications
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
|---|---|
| RAID support | Yes |
| RAID levels | 10 |
| Unbuffered memory | Yes |
| Supported processor sockets | LGA 1851 |
| Windows operating systems supported | Windows 11 x64 |
| Number of SATA III connectors | 4 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| RAID levels | 0 |
| Memory channels | Dual-channel |
| USB 2.0 connectors | 2 |
| RAID levels | 1 |
| Motherboard chipset | Intel Z890 |
| Number of CPU fan connectors | 2 |
| Supported storage drive interfaces | M.2, SATA III |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio output channels | 7.1 channels |
| Wi-Fi standards | 802.11g |
| Motherboard form factor | ATX |
| Wi-Fi standards | Wi-Fi 4 (802.11n) |
| Cables included | SATA |
| ATX Power connector (24-pin) | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Front panel audio connector | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio chip | Realtek ALC897 |
| TPM connector | Yes |
| Maximum internal memory | 256 GB |
| Number of chassis fan connectors | 5 |
| DisplayPort version | 1.4 |
| ECC сompatibility | Non-ECC |
| CPU fan connector | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Wi-Fi standards | 802.11a |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Supported storage drive types | HDD & SSD |
| Motherboard chipset family | Intel |
| Compliance certificates | CE |
| Wi-Fi standards | 802.11b |
| Compliance certificates | Federal Communications Commission (FCC) |
| Processor manufacturer | Intel |
| BIOS type | UEFI AMI |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| USB 3.2 Gen 2×2 connectors | 1 |
| LAN controller | Dragon RTL8125BG |
| Bluetooth | Yes |
| RAID levels | 5 |
| Number of M.2 (M) slots | 4 |
| Depth | 244 mm |
| Number of memory slots | 4 |
| Number of HDDs supported | 4 |
| Ethernet LAN | Yes |
| 12V power connector | Yes |
| USB 3.2 Gen 2×2 Type-C ports quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| RGB LED pin header | Yes |
| PCI Express x4 (Gen 4.x) slots | 2 |
| Headphone outputs | 1 |
| Audio connector | Yes |
| Processor socket | LGA 1851 (Socket V1) |
| Wi-Fi | Yes |
| Thunderbolt ports quantity | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Screws included | Yes |
| Supported memory types | DDR5-SDRAM |
| Bluetooth version | 5.3 |
| Supported memory clock speed (max) | 9066 MHz |
| Width | 305 mm |
| Microphone in | Yes |
| Line-in | Yes |
| Memory slots type | DIMM |
| Number of storage drives supported | 8 |
| PCI Express x1 (Gen 4.x) slots | 1 |
