Description

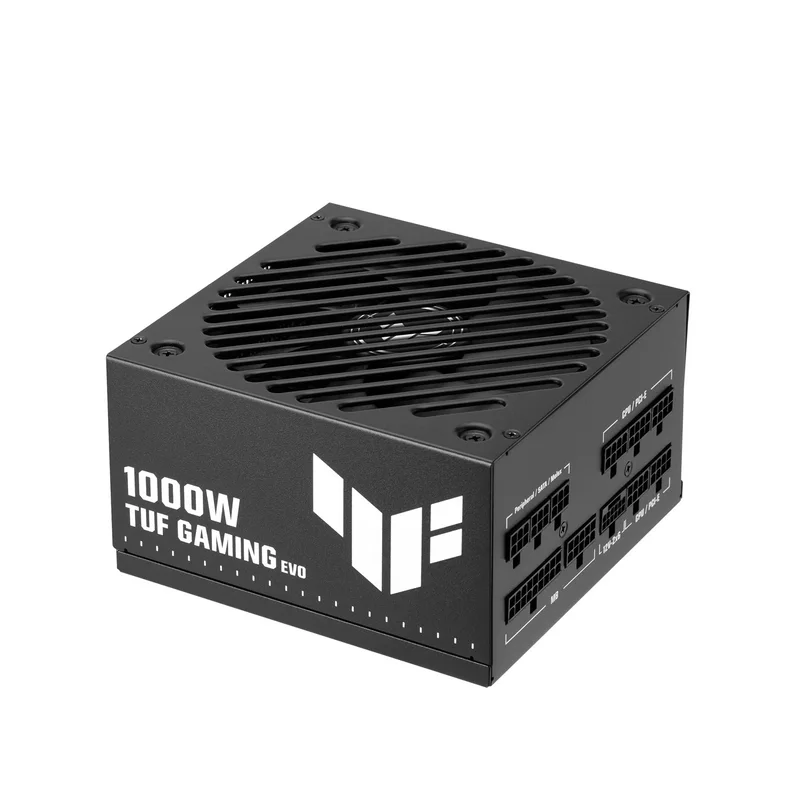

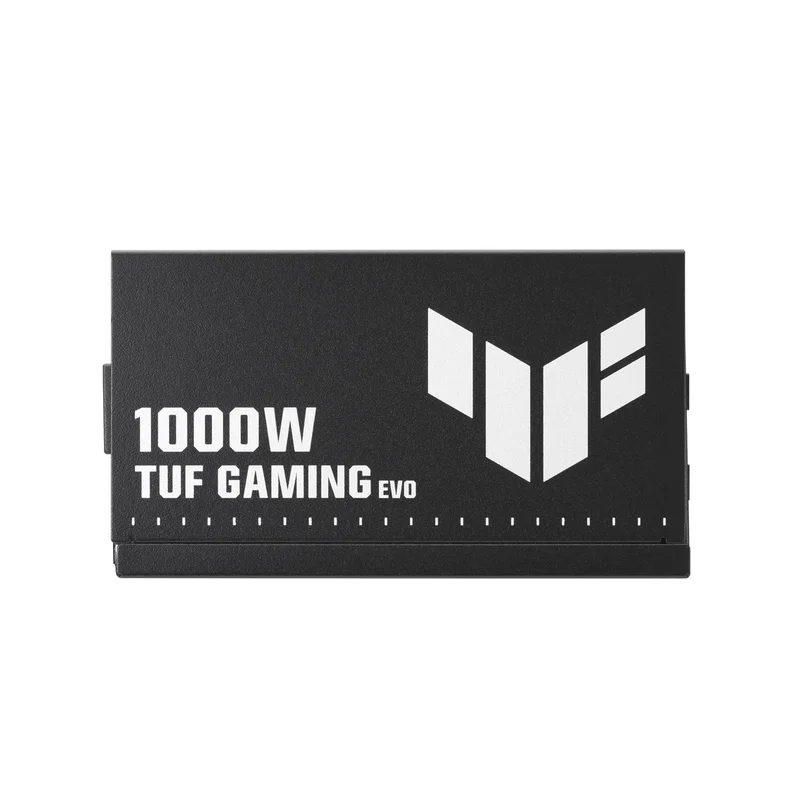

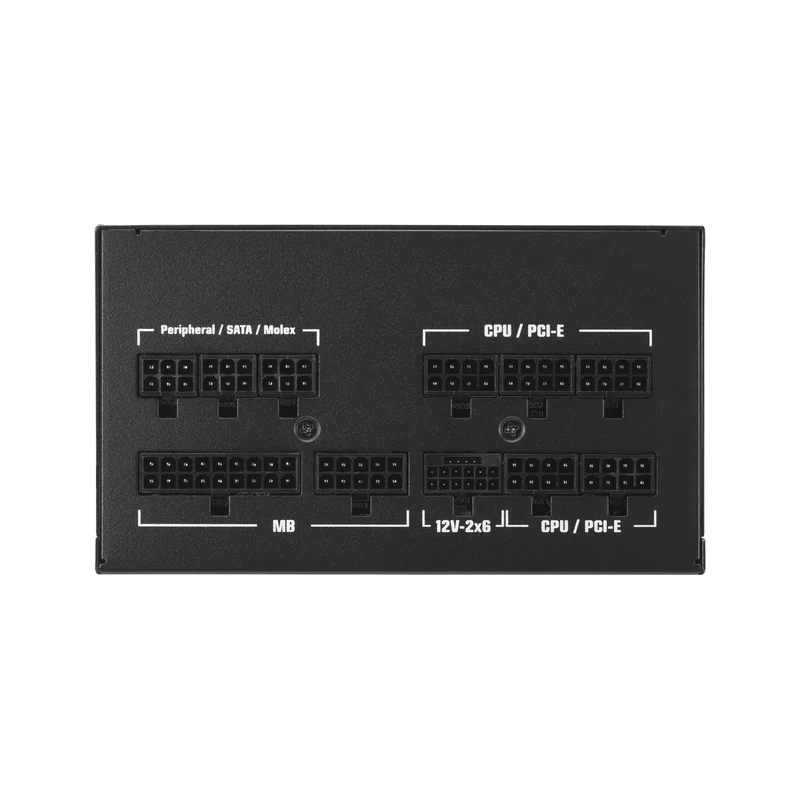

ASUS TUF Gaming 1000W Gold EVO power supply unit 20+4 pin ATX ATX Black
Technical specifications
| Weight | 1.72 kg |
|---|---|
| Cabling type | Fully-Modular |
| Package depth | 182 mm |
| On/off switch | Yes |
| Total power | 1000 W |
| Cooling type | Active |
| Height | 86 mm |
| Package width | 282 mm |
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Product colour | Black |
| Power supply unit (PSU) form factor | ATX |
| Package weight | 3.17 kg |
| Power protection features | Over power |
| Depth | 150 mm |
| Power protection features | Short circuit |
| Power protection features | Over voltage |
| PCI Express power connectors (16-pin) | 1 |
| Power protection features | Under voltage |
| Power protection features | Over current |
| Power protection features | Overheating |
| Purpose | PC |
| Fan diameter | 13.5 cm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Width | 150 mm |
| Number of fans | 1 fan(s) |
| Package type | Box |
| Package height | 127 mm |
| AC input voltage | 100 – 240 V |
| Mean time between failures (MTBF) | 120000 h |
| 80 PLUS certification | 80 PLUS Gold |
| Compliance certificates | RoHS |
| ATX version | 3.1 |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Bearing technology | Ball bearing |
| Combined power (+12V) | 1000 W |
| Max output current (+5V) | 25 A |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| PCI Express power connectors (6+2 pin) | 3 |
| Number of SATA power connectors | 6 |
| Max output current (+12V) | 83.33 A |
| CPU power connector (4+4 pin) | Yes |
| Combined power (+5V) | 125 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+5Vsb) | 3 A |
| Power Factor Correction (PFC) type | Active |
| Max output current (-12V) | 0.3 A |
| Combined power (+3.3V) | 125 W |
| Warranty period | 8 year(s) |
