Description

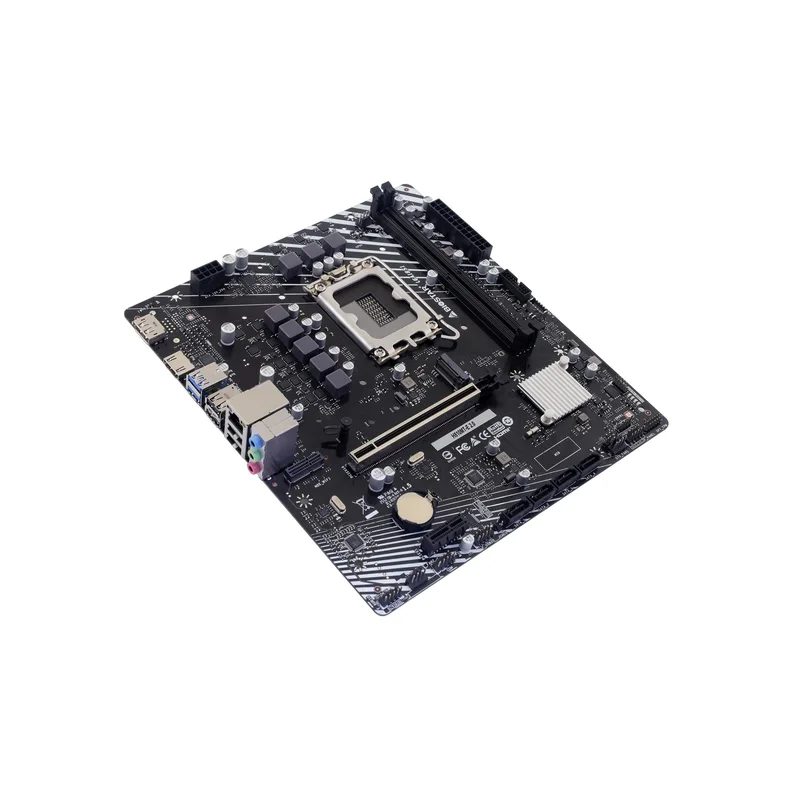

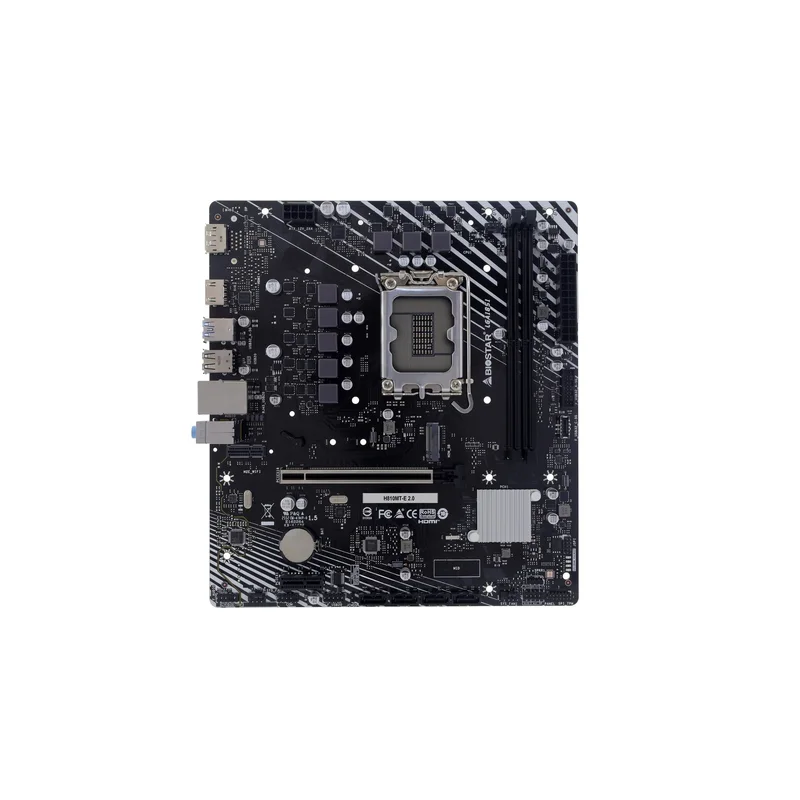

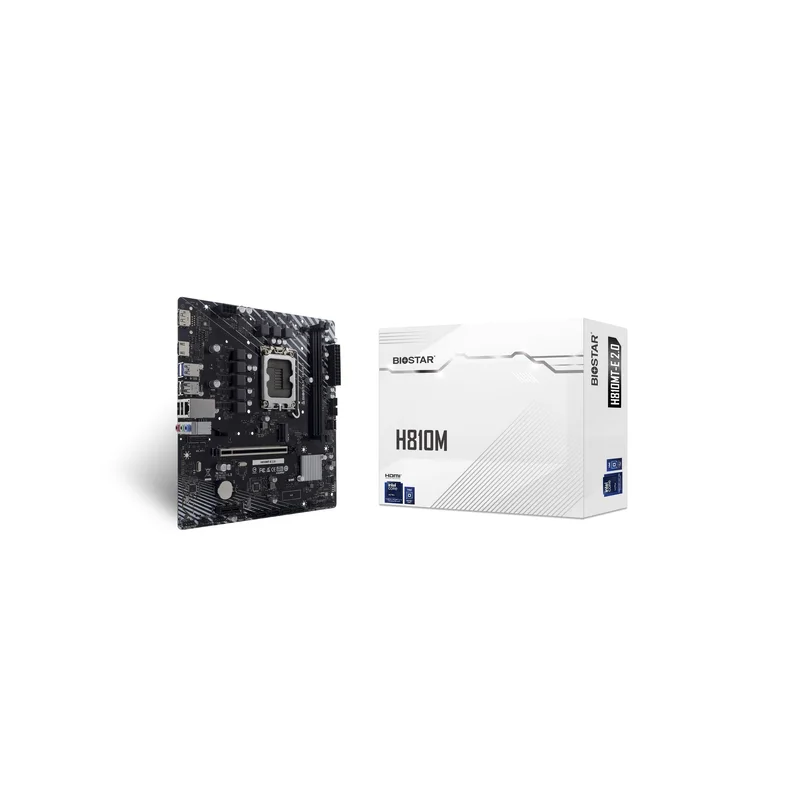

BIOSTAR H810MTE 2.0 motherboard
Technical specifications
| Audio chip | Realtek ALC897 |
|---|---|
| USB 2.0 connectors | 1 |
| Audio output channels | 7.1 channels |
| Supported storage drive interfaces | Serial ATA III |
| DisplayPort version | 1.2 |
| Motherboard form factor | micro ATX |
| Ethernet LAN (RJ-45) ports | 1 |
| HDCP | Yes |
| Number of SATA III connectors | 4 |
| DisplayPorts quantity | 1 |
| Maximum internal memory | 128 GB |
| Motherboard chipset family | Intel |
| Front panel audio connector | Yes |
| DirectX version | 12.0 |
| Supported memory clock speeds | 6400 |
| Motherboard chipset | Intel H810 |
| LAN controller | Realtek 8111H |
| PCI Express x16 (Gen 5.x) slots | 1 |
| ECC сompatibility | Non-ECC |
| PCI Express x1 (Gen 4.x) slots | 1 |
| ATX Power connector (24-pin) | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Width | 218 mm |
| Headphone outputs | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Supported memory types | DDR5-SDRAM |
| Processor socket | LGA1851 |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| Clear CMOS jumper | Yes |
| Depth | 240 mm |
| Front panel connector | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN | Yes |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 4 |
