Description

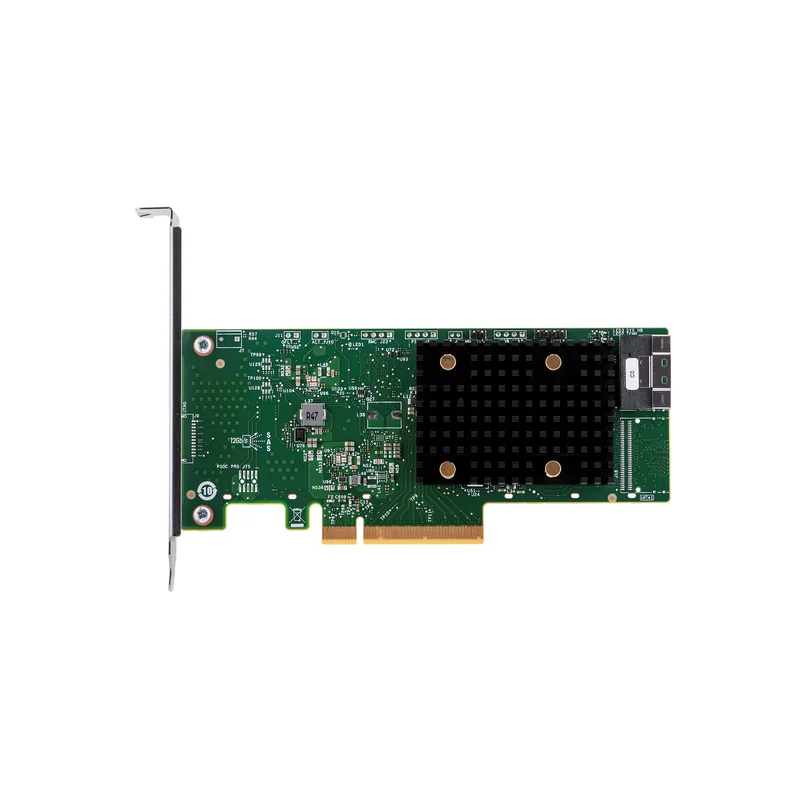

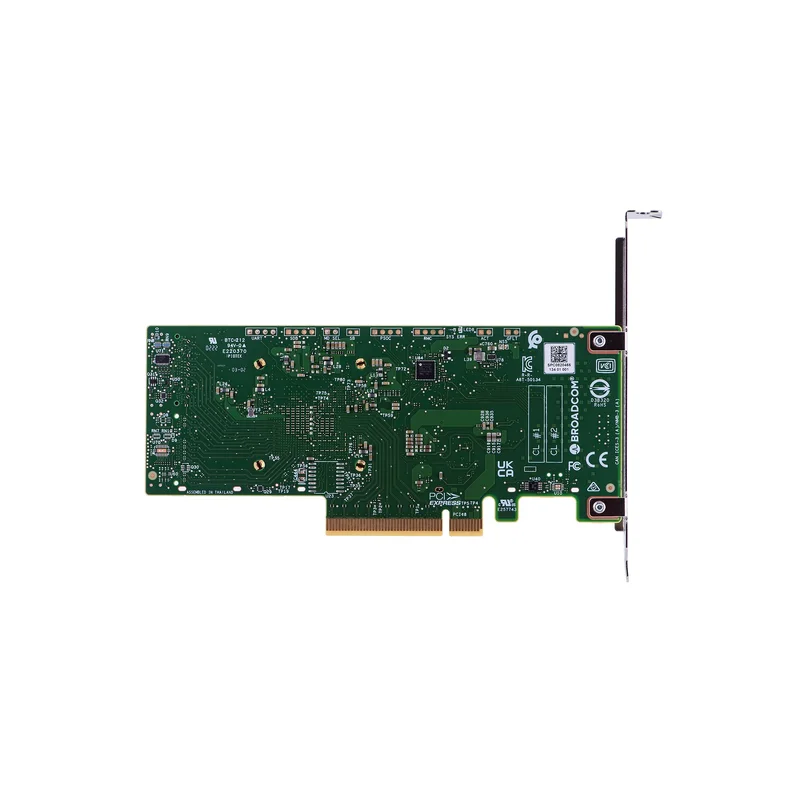

Broadcom HBA 9500-8i interface cards/adapter Internal SAS, SATA
Technical specifications
| Certification | Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE |
|---|---|
| Host interface | PCIe |
| Output interface | SATA |
| Plug and Play | Yes |
| Quantity | 1 |
| Operating relative humidity (H-H) | 20 – 80% |
| Other operating systems supported | Yes |
| Expansion card form factor | Full-height / Low-profile |
| Product colour | Green |
| Output interface | SAS |
| Linux operating systems supported | Yes |
| Product colour | Grey |
| Depth | 68 mm |
| Width | 155 mm |
| NVMe | Yes |
| Windows operating systems supported | Yes |
| Internal | Yes |
| Harmonized System (HS) code | 84733020 |
| Operating temperature (T-T) | 0 – 50 °C |
| Sustainability certificates | RoHS |
| Data transfer rate (max) | 12 Gbit/s |
| Mean time between failures (MTBF) | 5000000 h |
| Power consumption (typical) | 5.96 W |
