Description

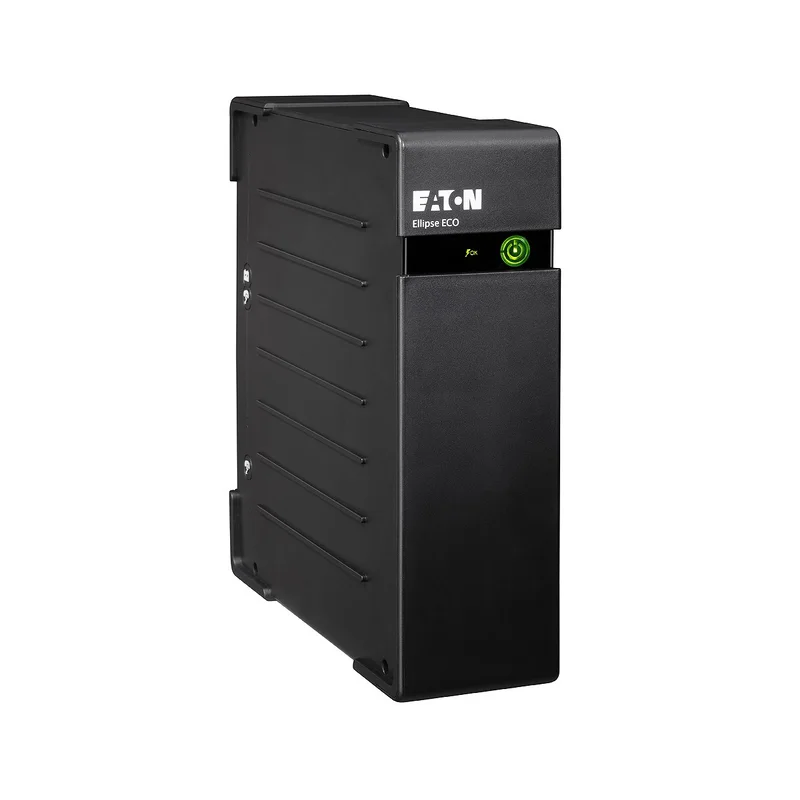

Eaton Ellipse ECO 800 USB DIN uninterruptible power supply (UPS) Standby (Offline) 0.8 kVA 500 W 4 AC outlet(s)
Technical specifications
| Bundled software | Eaton Intelligent Power |
|---|---|
| Compatible operating systems | Windows 7/Vista/XPrnMac OS XrnLinux |
| Hot-swap battery | No |
| Input operation voltage (max) | 284 V |
| AC outlet types | Type F |
| LED indicators | Battery replacement |
| USB 2.0 ports quantity | 1 |
| Mac compatibility | Yes |
| Typical backup time at half load | 11 min |
| Nominal input voltage | 230 V |
| Input operation voltage (min) | 161 V |
| Overload protection | Yes |
| Power plug | C14 coupler |
| Output power capacity | 0.8 kVA |
| Nominal output voltage | 220-240 V |
| Weight | 4.1 kg |
| Output operation voltage (max) | 240 V |
| Ethernet LAN (RJ-45) ports | 1 |
| Output operation voltage (min) | 220 V |
| Surge protection features | Modem |
| Width | 81 mm |
| Cold start | Yes |
| Depth | 235 mm |
| Surge protection features | Fax |
| Surge protection features | Network |
| Surge protection features | Telephone |
| Product colour | Black |
| Output power | 500 W |
| Harmonized System (HS) code | 85078000 |
| Form factor | Tower |
| Audible alarm modes | Battery replacement |
| Input connection type | Schuko |
| Automatic battery test | Yes |
| Safety | IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1 |
| Input frequency | 50/60 Hz |
| UPS topology | Standby (Offline) |
| Emergency Power Off (EPO) | No |
| Height | 263 mm |
| Battery technology | Sealed Lead Acid (VRLA) |
| AC outlets quantity | 4 AC outlet(s) |
| Audible alarm(s) | Yes |
| Surge protection | Yes |
| Rack capacity | 2U |
| Modem (RJ-11) ports | 1 |
