Description

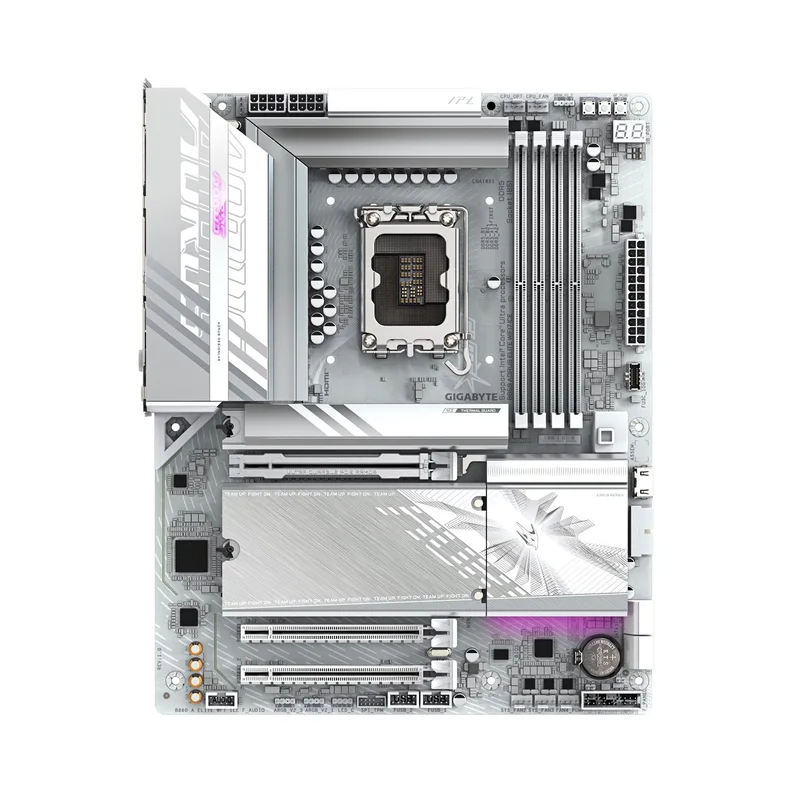

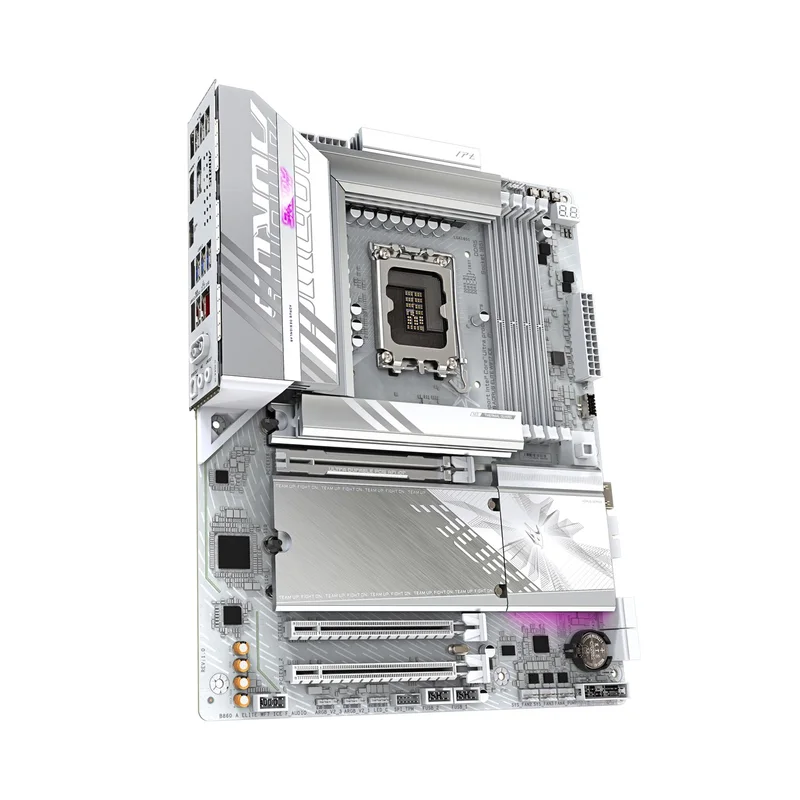

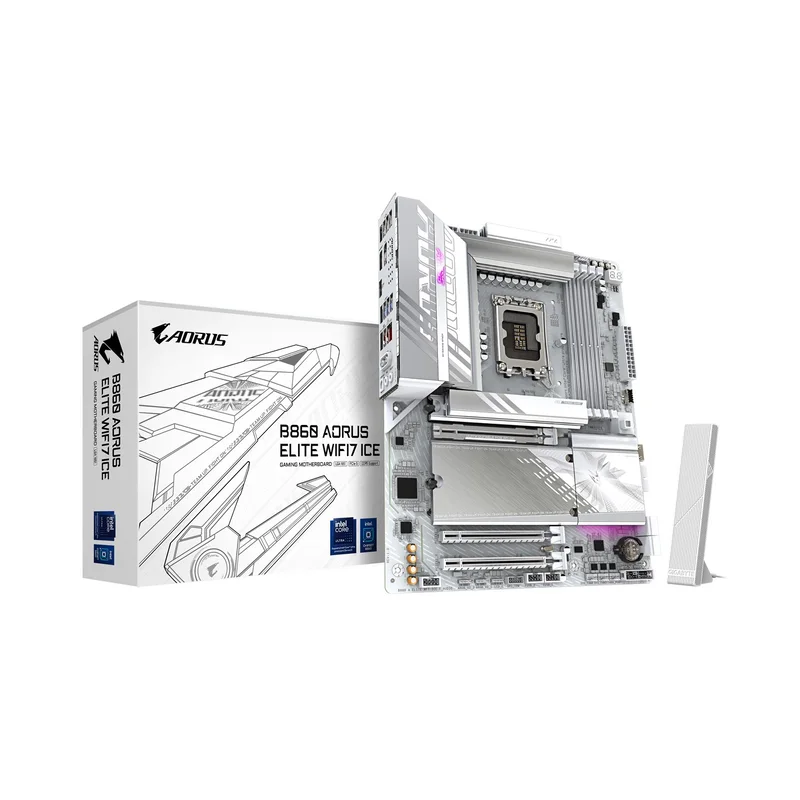

GIGABYTE B860 AORUS ELITE WIFI7 ICE Motherboard – Intel Core Ultra Series CPUs, 14+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 7, USB 4
Technical specifications
| Bundled software | Norton Internet Security (OEM version) LAN bandwidth management software |
|---|---|
| Wi-Fi standards | 802.11a |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Headphone outputs | 1 |
| Products per shipping (inner) case | 1 pc(s) |
| Number of M.2 (M) slots | 3 |
| DisplayPort version | 2.1 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Weight | 2.21 kg |
| Wi-Fi standards | 802.11b |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Wi-Fi standards | 802.11g |
| Number of SATA III connectors | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Package depth | 270 mm |
| Motherboard form factor | ATX |
| Wi-Fi standards | Wi-Fi 4 (802.11n) |
| Supported memory types | DDR5-SDRAM |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| RGB LED pin header | Yes |
| DisplayPorts quantity | 1 |
| Motherboard chipset family | Intel |
| Width | 305 mm |
| Number of HDDs supported | 4 |
| CPU fan connector | Yes |
| Front panel connector | Yes |
| Number of memory slots | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Supported processor sockets | LGA 1851 |
| Warnings | Do not open or modify the motherboard to prevent damage. |
| PCI Express x16 (Gen 4.x) slots | 2 |
| Desktop Management Interface (DMI) version | 2.7 |
| HDMI ports quantity | 1 |
| Memory slots type | DIMM |
| Number of chassis fan connectors | 4 |
| Battery weight | 3 g |
| Processor manufacturer | Intel |
| Package height | 80 mm |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel audio connector | Yes |
| Windows operating systems supported | Windows 11 x64 |
| Height | 35 mm |
| ATX Power connector (24-pin) | Yes |
| Batteries included | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Antenna included | Yes |
| EPS power connector (8-pin) | Yes |
| Memory channels | Dual-channel |
| USB4 Gen 2×2 ports quantity | 1 |
| 1st M.2 highest PCI Express generation | 5.0 |
| Package width | 335 mm |
| Compatible processor series | Intel® Core™ Ultra (Series 1) |
| RAID support | Yes |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Number of battery cells | 1 |
| Maximum resolution | 4096 x 2160 pixels |
| Cooling type | Passive |
| Digital audio optical out | 1 |
| Bluetooth version | 5.4 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| RAID levels | 0 |
| Battery type | CR2032 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| ECC сompatibility | ECC & Non-ECC |
| RAID levels | 10 |
| Number of storage drives supported | 7 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Supported memory clock speed (max) | 9200 MHz |
| Package weight | 2.49 kg |
| Number of water pump connectors | 2 |
| 2nd M.2 largest key size | 22110 |
| Line-in | Yes |
| RAID levels | 1 |
| USB 2.0 ports quantity | 4 |
| Wi-Fi | Yes |
| Warranty period | 3 year(s) |
| 1st M.2 largest key size | 25110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| Warnings | When disposing of the product, follow local regulations for the recycling of electronics. |
| RAID levels | 5 |
| Maximum internal memory per slot | 64 GB |
| Depth | 244 mm |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Lithium weight per battery | 0.07 g |
| WiFi-AP antenna jack | 2 |
| WLAN controller model | Realtek RTL8922AE |
| Ethernet LAN | Yes |
| Screws included | Yes |
| BIOS type | UEFI AMI |
| Number of EPS power connectors (8-pin) | 2 |
| Power source type | ATX |
| Clear CMOS jumper | Yes |
| Processor socket | LGA 1851 (Socket V1) |
| HDMI version | 2.1 |
| Parallel processing technology support | Not supported |
| Number of RGB LED pin headers | 4 |
| Number of CPU fan connectors | 2 |
| Supported storage drive types | HDD & SSD |
| Motherboard chipset | Intel B860 |
| Supported memory clock speeds | 5600 |
| Bluetooth | Yes |
| Maximum internal memory | 256 GB |
| S/PDIF out port | Yes |
| Supported memory clock speeds | 6400 |
| Supported storage drive interfaces | M.2, SATA III |
| Product colour | White |
| Supported memory clock speeds | 9200 MHz |
| Audio chip | Realtek ALC897 |
| LAN controller | Realtek RTL8125 |
| Audio output channels | 7.1 channels |
| Country of origin | China |
| DirectX version | 12.0 |
| PC health monitoring | Temperature |
| PC health monitoring | Water cooling |
| PC health monitoring | Voltage |
| PC health monitoring | Fan |
| HDCP | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
