Description

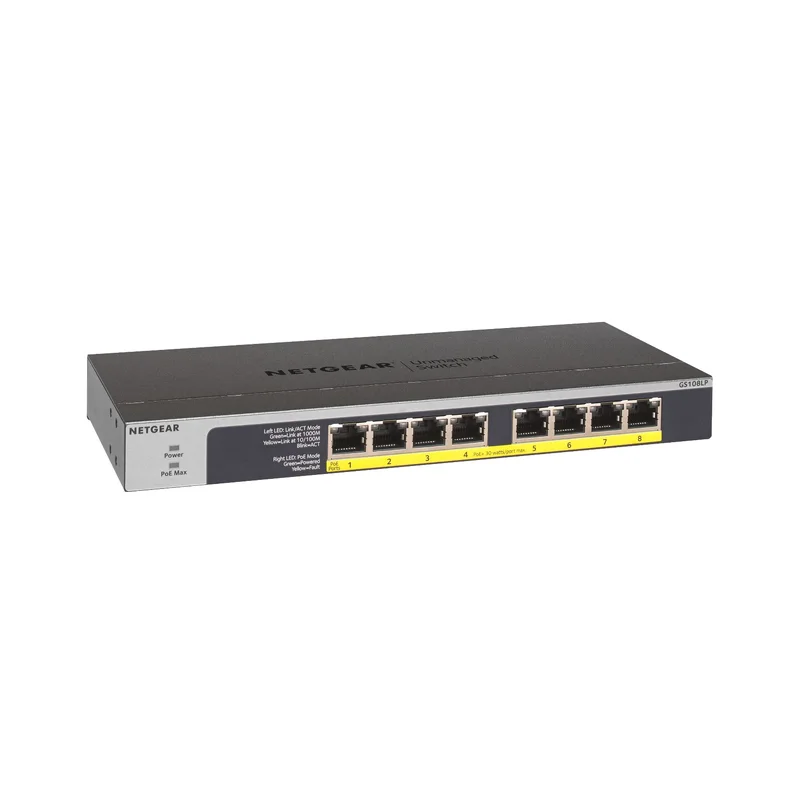

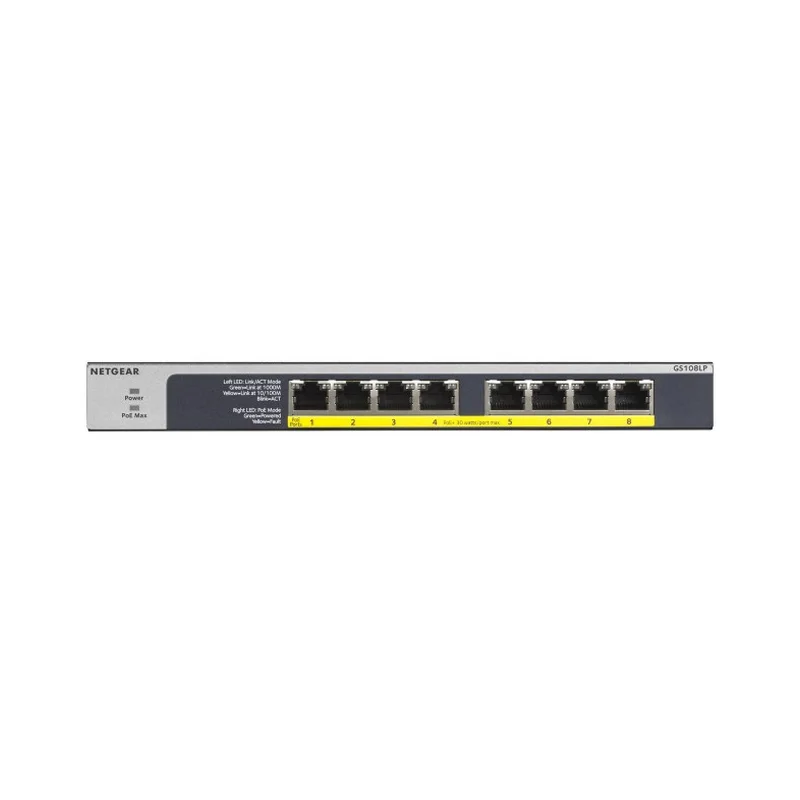

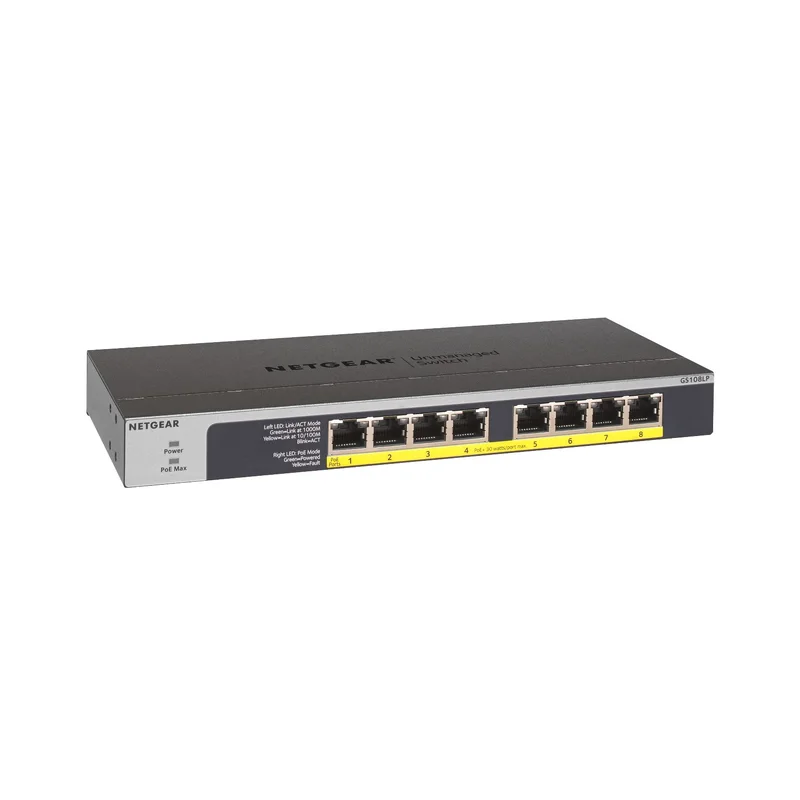

NETGEAR GS108LP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black, Grey
Technical specifications
| DC input voltage | 54 V |
|---|---|
| Form factor | 1U |
| Operating relative humidity (H-H) | 0 – 90% |
| Product colour | Grey |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.3az |
| 10G support | No |
| MAC address table | 4000 entries |
| Operating temperature (T-T) | 0 – 40 °C |
| Total Power over Ethernet (PoE) budget | 60 W |
| Depth | 102 mm |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.3x |
| Number of fans | 0 fan(s) |
| Networking standards | IEEE 802.3u |
| Wall mountable | Yes |
| Networking standards | IEEE 802.3i |
| Storage relative humidity (H-H) | 0 – 95% |
| Store-and-forward | Yes |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Power source | DC/PoE |
| Buffer size | 192 KB |
| Product colour | Black |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Jumbo frames support | Yes |
| Quality of Service (QoS) support | Yes |
| Storage temperature (T-T) | -20 – 70 °C |
| LED indicators | Yes |
| Plug and Play | Yes |
| Input current | 1.25 A |
| Weight | 600 g |
| Mean time between failures (MTBF) | 2752476 h |
| Power connector | AC-in jack |
| Flow control support | Yes |
| Power consumption (max) | 130 W |
| Power consumption (typical) | 67.5 W |
| Switch type | Unmanaged |
| Height | 27 mm |
| Heat dissipation | 230.85 BTU/h |
| Switching capacity | 16 Gbit/s |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Operating altitude | 0 – 1000 m |
| Width | 236 mm |
| Rack mounting | Yes |
| Power over Ethernet (PoE) | Yes |
| Harmonized System (HS) code | 85176990 |
| Warnings | Do not open the housing of the unit due to the risk of electric shock. |
| Warnings | Do not use the device in damp conditions to avoid a short circuit. |
| Warnings | Electronic devices should be recycled in accordance with local regulations. |
