Description

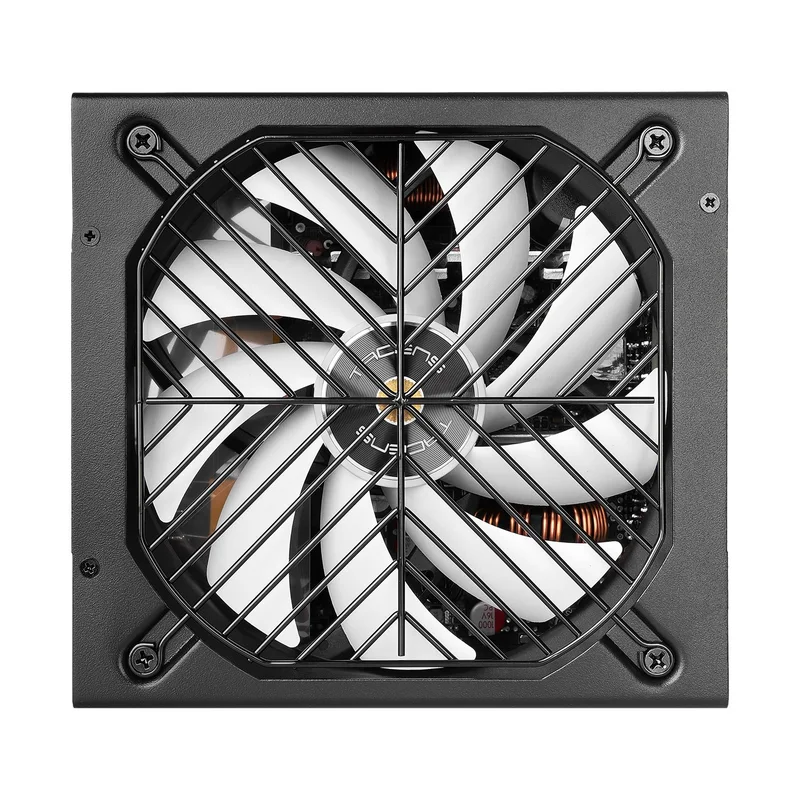

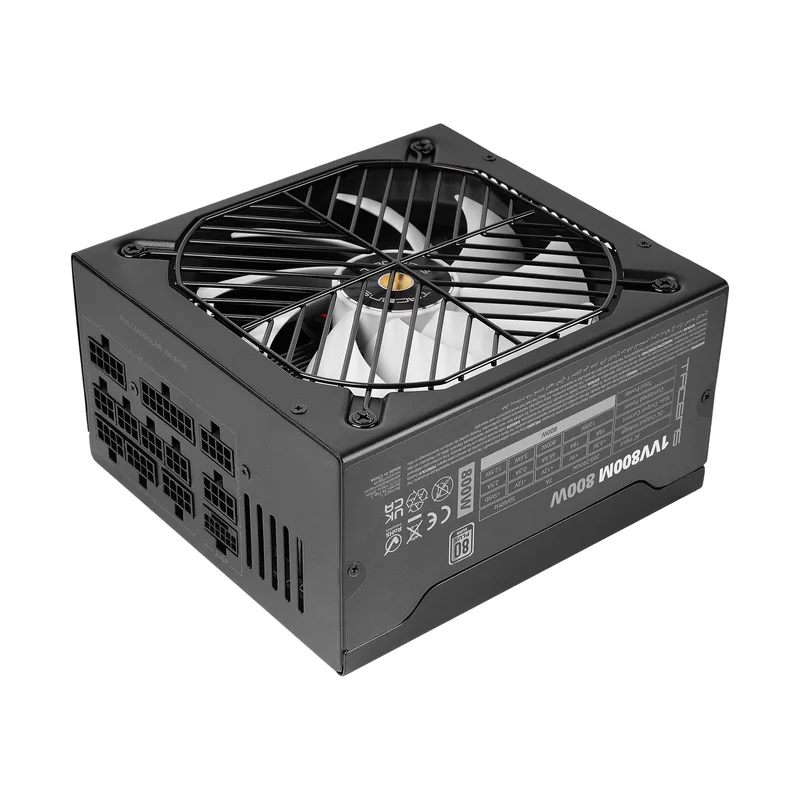

TACENS VALEO V 800M 800W DC-DC, ATX 3.1 PCIe 5.1
Technical specifications
| Warnings | The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations. |
|---|---|
| Warnings | Do not open the case – risk of electric shock. |
| Warnings | Avoid contact of the product with water or other liquids. |
| Width | 150 mm |
| Max output current (+3.3V) | 20 A |
| Product colour | Black |
| RoHS compliance | Y |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| AC input voltage | 200 – 240 V |
| Max output current (+5Vsb) | 2.5 A |
| Depth | 160 mm |
| 80 PLUS certification | 80 PLUS Silver |
| Package type | Box |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 3 |
| Cooling type | Active |
| Efficiency | 87% |
| Safety features | OCP,OVP,OPP,OTP,OLP,NLO,PFP,UVP,SCP,TCP |
| Illumination | No |
| Input current | 8 A |
| Height | 85 mm |
| Max output current (+12V) | 59 A |

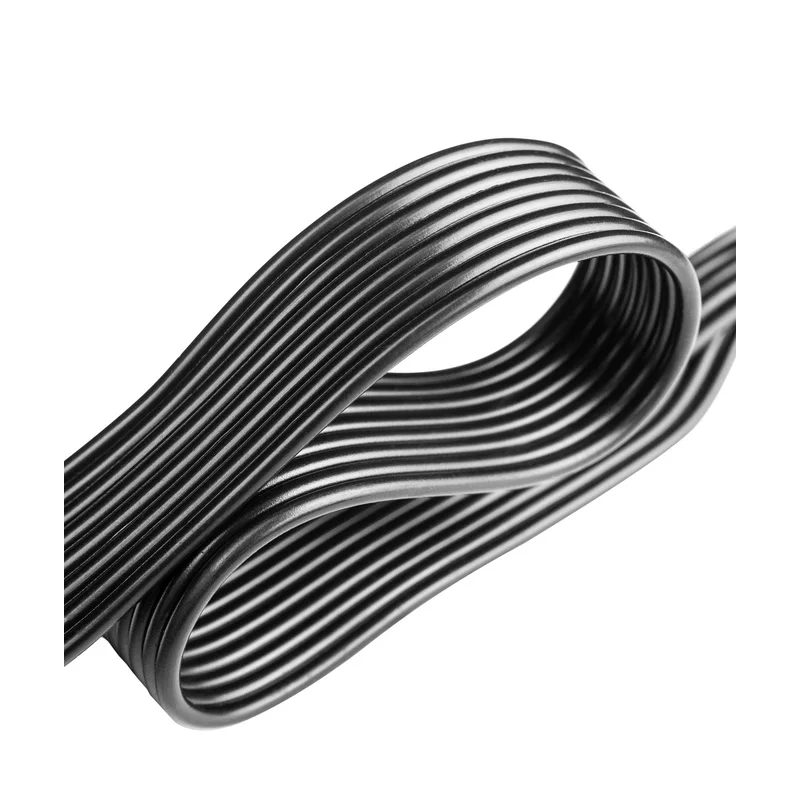

| Cabling type | Modular |
| Noise level | 12 dB |
| Purpose | PC |
| Total power | 800 W |
| EPS power connector (4+4 pin) | 2 |
| On/off switch | Yes |
| AC input frequency | 47 – 60 Hz |
