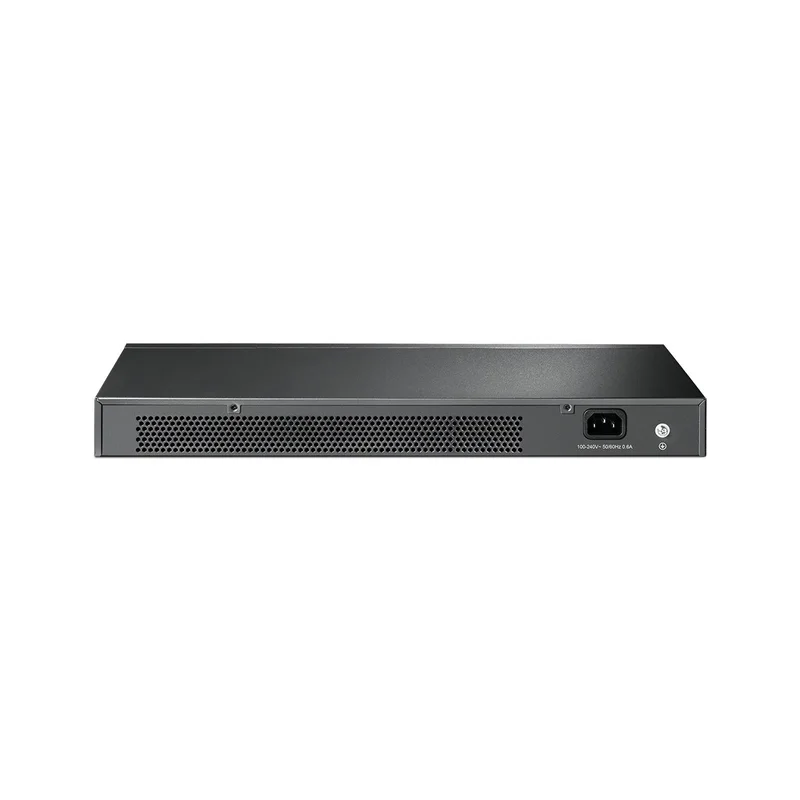

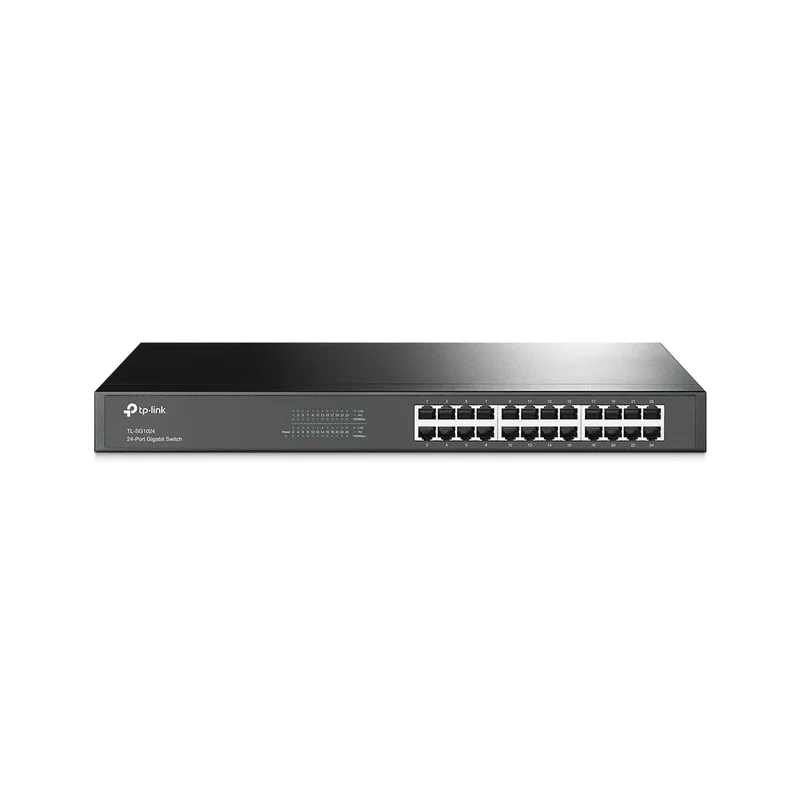

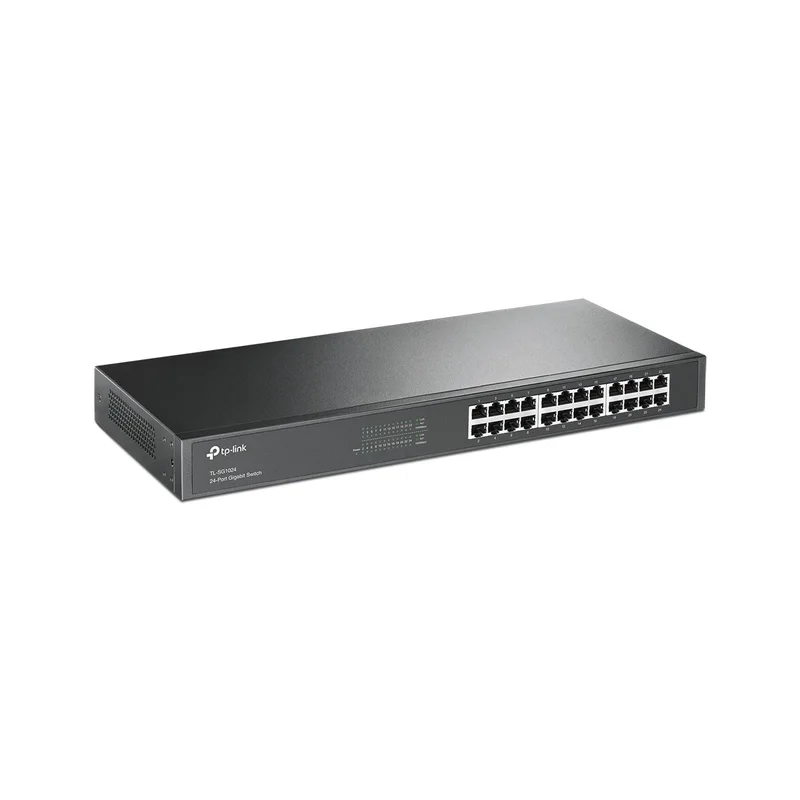

TP-Link 24-Port Gigabit Rackmount Network Switch
Technical specifications
| Certification | FCC, CE, RoHS |
|---|---|
| Operating relative humidity (H-H) | 10 – 90% |
| LED indicators | Yes |
| AC input voltage | 100 – 240 V |
| Power consumption (typical) | 14.19 W |
| AC input frequency | 50 – 60 Hz |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.1p |
| Storage temperature (T-T) | -40 – 70 °C |
| Quality of Service (QoS) support | Yes |
| User guide | Yes |
| Product colour | Black |
| Networking standards | IEEE 802.1Q |
| Package type | Box |
| Operating temperature (T-T) | 0 – 40 °C |
| Cables included | AC |
| Storage relative humidity (H-H) | 5 – 90% |
| Width | 294 mm |
| Depth | 180 mm |
| Auto MDI/MDI-X | Yes |
| Height | 44 mm |
| Rack mounting | Yes |
| Number of queues | 4 |
| Harmonized System (HS) code | 85176990 |
| IGMP snooping | Yes |
| Rate limiting | Yes |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Switch type | Unmanaged |
| Switching capacity | 48 Gbit/s |
| Link aggregation | Yes |
| Full duplex | Yes |
| Jumbo frames | 10000 |
| Broadcast storm control | Yes |
| Number of VLANs | 32 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Copper ethernet cabling technology | 10BASE-T |
| Heat dissipation | 48.39 BTU/h |
| Power supply included | Yes |
| Jumbo frames support | Yes |
| Rack mount kit | Yes |
| Flow control support | Yes |
| Store-and-forward | Yes |
| Copper ethernet cabling technology | 100BASE-TX |
| Packet buffer memory | 4.1 MB |
| Port mirroring | Yes |
| Switch layer | L2 |
| Copper ethernet cabling technology | 1000BASE-T |
| MAC address table | 8000 entries |
| 10G support | No |
| Throughput | 35.7 Mpps |
