Description

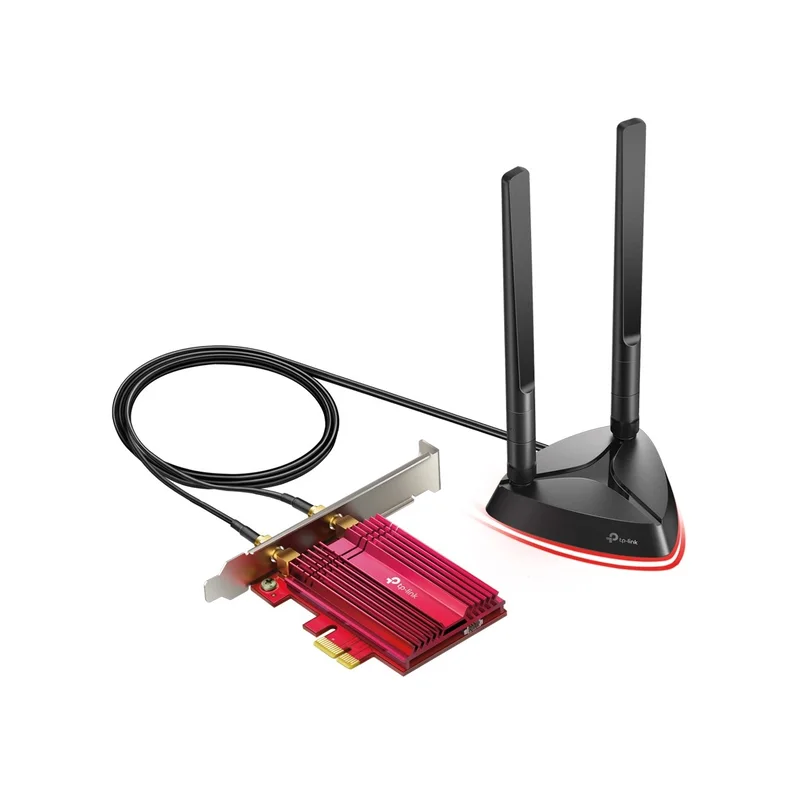

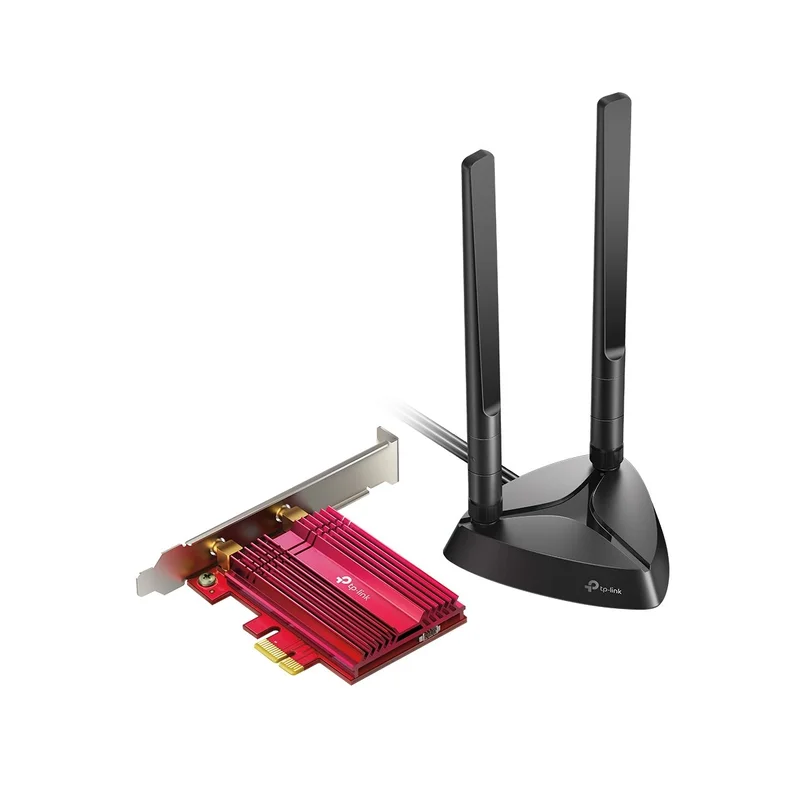

TP-Link Archer TX3000E Internal WLAN / Bluetooth 2402 Mbit/s
Technical specifications
| Receiver sensitivity | 5 GHz : 11ax HT160：-56.25dBm 11ax HT80: -59dBm 11ax HT40: -62.25dBm 11ax HT20: -65dBm 11ac HT160：-62dBm 11ac HT80: -65.5dBm 11ac HT40: -69.75dBm 11ac HT20: -73.75dBm 11n HT40: -74.5dBm 11n HT20: -77.5dBm 11a 54Mbps: -77.75dBm 11a 6Mbps: -94.5dBm 2.4GHz : 11ax HT40: -60.75dBm 11ax HT20: -63.75dBm 11n HT40: -73dBm 11n HT20: -76.25dBm 11g 54Mbps: -76.5dBm 11b 11Mbps: -89dBm |
|---|---|
| Wi-Fi | Yes |
| WLAN data transfer rates supported | 54 |
| Wi-Fi standards | 802.11b |
| WLAN data transfer rates supported | 2402 |
| Wi-Fi standards | 802.11g |
| WLAN data transfer rates supported | 1733 |
| WLAN data transfer rates supported | 300 Mbit/s |
| Wi-Fi standards | 802.11a |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Component for | PC |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Mounting brackets included | Yes |
| Chipset | Intel Wi-Fi 6 |
| WLAN data transfer rates supported | 574 |
| Operating relative humidity (H-H) | 10 – 90% |
| Security algorithms | WPA-PSK |
| Security algorithms | WPA3 |
| Storage relative humidity (H-H) | 5 – 90% |
| Security algorithms | 802.1x RADIUS |
| Security algorithms | WPA2-PSK |
| Security algorithms | 128-bit WEP |
| Networking standards | IEEE 802.11ax |
| Security algorithms | WPA |
| Networking standards | IEEE 802.11g |
| Networking standards | IEEE 802.11n |
| Networking standards | IEEE 802.11a |
| Security algorithms | 64-bit WEP |
| Security algorithms | WPA2 |
| Internal | Yes |
| Interface | WLAN / Bluetooth |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Antenna | Yes |
| Resource CD | Yes |
| Operating modes | Infrastructure mode |
| Package height | 47 mm |
| Operating temperature (T-T) | 0 – 40 °C |
| Harmonized System (HS) code | 85176990 |
| Width | 95.2 mm |
| Package width | 270 mm |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | Wi-Fi 4 (802.11n) |
| Windows operating systems supported | Windows 10 Home x64 |
| Windows operating systems supported | Windows 10 Enterprise x64 |
| Windows operating systems supported | Windows 10 x64 |
| Windows operating systems supported | Windows 10 Education x64 |
| Windows operating systems supported | Windows 10 Pro x64 |
| Product colour | Black |
| Modulation | DBPSK |
| Quick installation guide | Yes |
| Connectivity technology | Wireless |
| Modulation | OFDM |
| Package weight | 480 g |
| Modulation | 64-QAM |
| Modulation | 256-QAM |
| Height | 21.5 mm |
| Host interface | PCI Express |
| Modulation | CCK |
| Bluetooth | Yes |
| Networking standards | IEEE 802.11ac |
| Storage temperature (T-T) | -40 – 70 °C |
| Bluetooth version | 5.0 |
| Maximum data transfer rate | 2402 Mbit/s |
| Networking standards | IEEE 802.11b |
| Frequency range | 2.4 – 5 GHz |
| Product colour | Red |
| Modulation | DQPSK |
| Package depth | 215 mm |
| Modulation | 16-QAM |
| Depth | 120.8 mm |
| Transmitting power (CE) | 23 dBm |
| Bluetooth header cable | Yes |
| Antenna design | External |
| Transmitting power (FCC) | 27 dBm |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
| Compliance certificates | CE |
| Compliance certificates | Federal Communications Commission (FCC) |
