Description

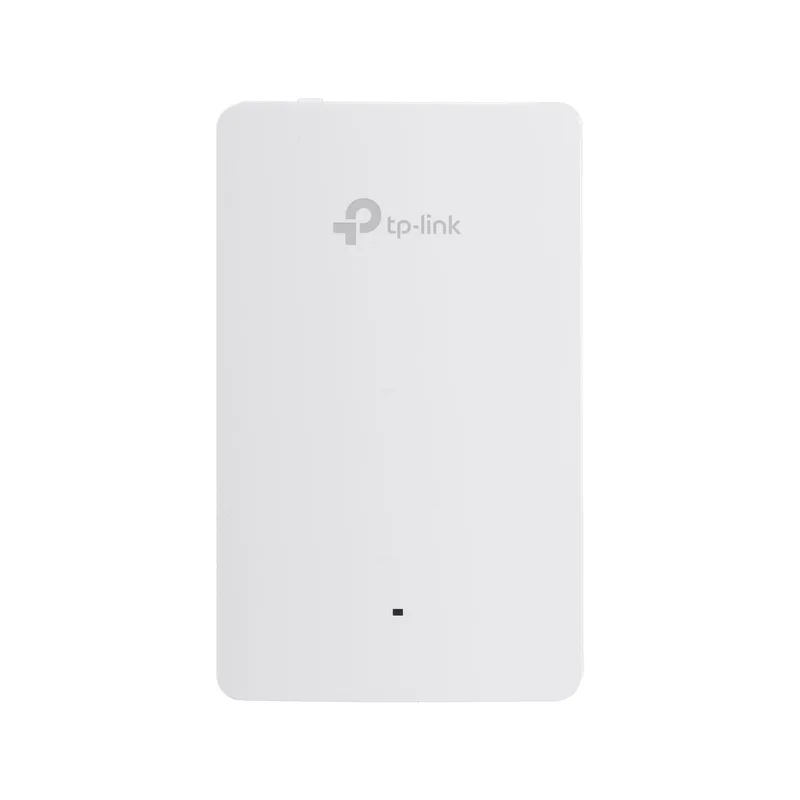

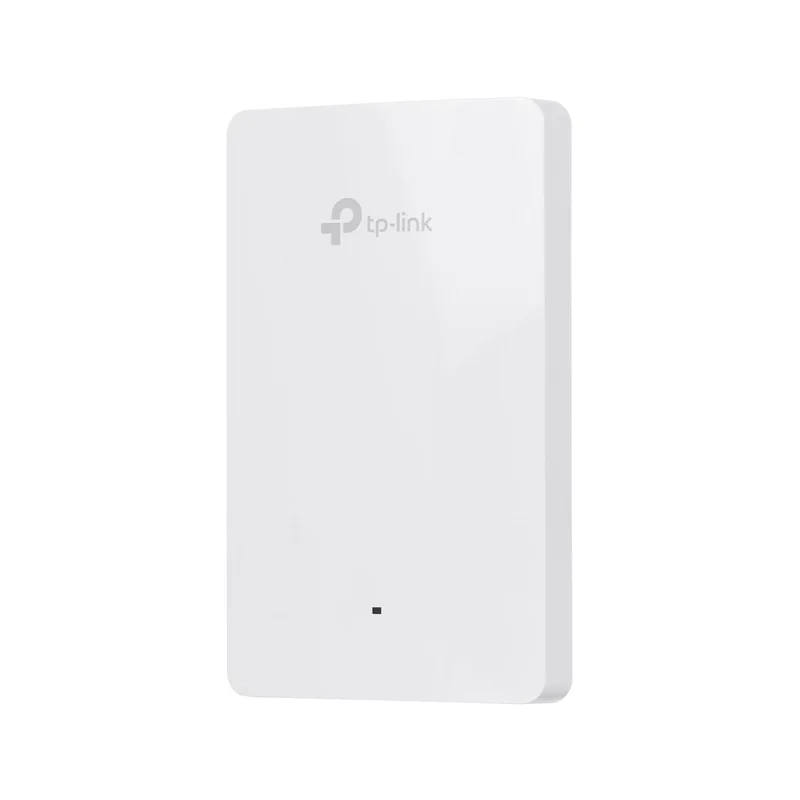

TP-LINK AX1800 Wall Plate WiFi 6 Access Point
Technical specifications
| Certification | CE, FCC, RoHS |
|---|---|
| Ethernet LAN data rates | 10 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Antenna type | Internal |
| Ethernet LAN (RJ-45) ports | 4 |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Number of SSID supported | 16 |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Access Control List (ACL) | Yes |
| Ethernet LAN data rates | 100 |
| LED indicators | Power |
| Operating temperature (T-T) | 0 – 40 °C |
| 5 GHz | Yes |
| Height | 20 mm |
| Airtime Fairness (ATF) | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Syslog | Yes |
| Networking standards | IEEE 802.11a |
| Networking standards | IEEE 802.11ax |
| Security algorithms | WPA |
| Networking standards | IEEE 802.11b |
| Reset button | Yes |
| Security algorithms | WPA2 |
| Networking standards | IEEE 802.11g |
| Networking standards | IEEE 802.11n |
| Maximum data transfer rate | 1774 Mbit/s |
| Networking standards | IEEE 802.11ac |
| Transmitting power (FCC) | 21 dBm |
| Security algorithms | WPA3 |
| Storage relative humidity (H-H) | 5 – 90% |
| Placement | Wall |
| On/off switch | Yes |
| VLAN support | Yes |
| Depth | 86 mm |
| Operating relative humidity (H-H) | 10 – 90% |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Storage temperature (T-T) | -40 – 70 °C |
| Quality of Service (QoS) support | Yes |
| Rate limiting | Yes |
| Transmitting power (CE) | 20 dBm |
| Band steering | Yes |
| Width | 143 mm |
| Automatic channel selection | Yes |
| STelnet using SSH v2 | Yes |
| Automatic channel scanning | Yes |
| Power over Ethernet (PoE) | Yes |
| Product colour | White |
| 2.4 GHz | Yes |
