Description

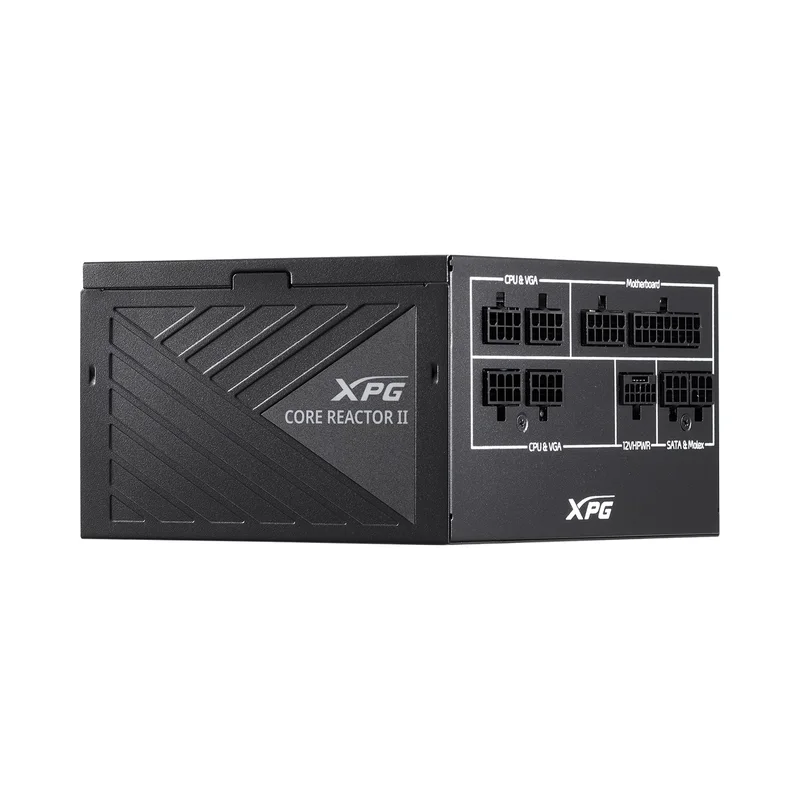

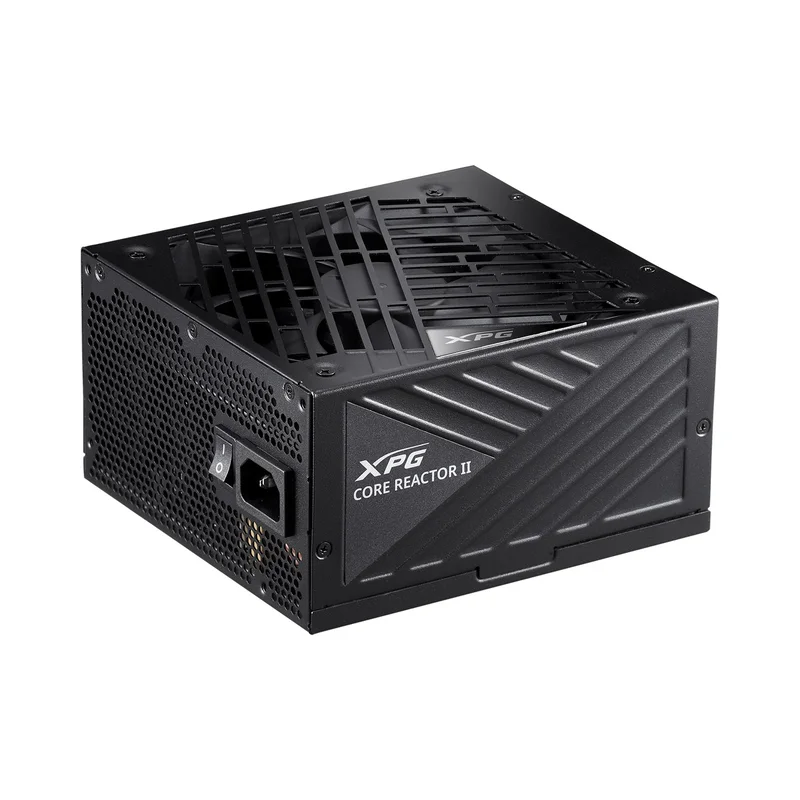

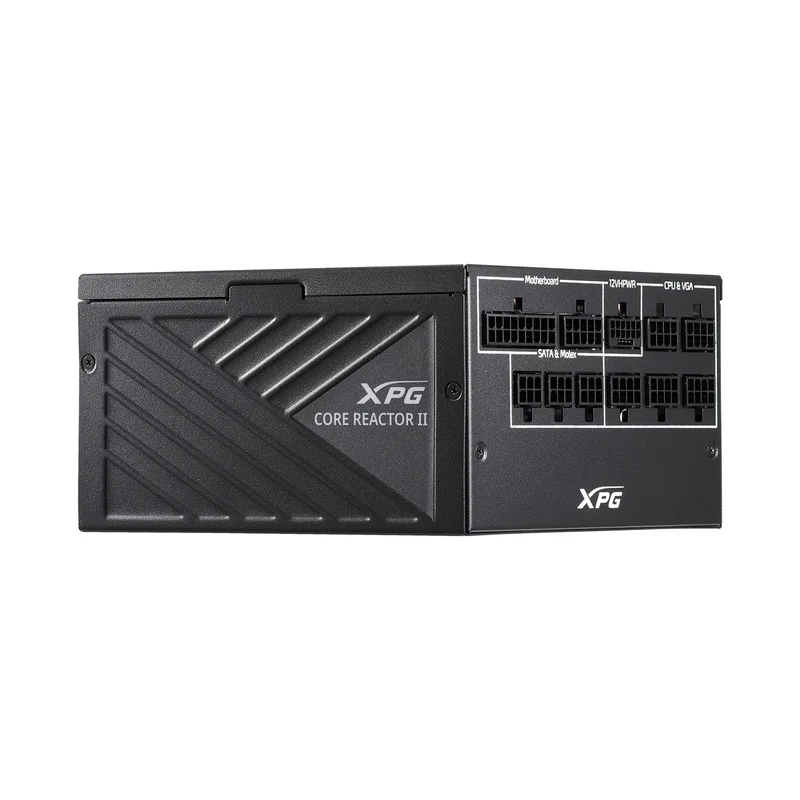

XPG COREREACTOR II 1000W Power Supply
Technical specifications
| ATX power connector (12+4 pin) | Yes |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC) |
| Compliance certificates | RCM |
| Compliance certificates | cTUVus |
| Compliance certificates | BSMI |
| Compliance certificates | CE |
| Compliance certificates | China Compulsory Certification (CCC) |
| Compliance certificates | Norma Oficial Mexicana (NOM) |
| Compliance certificates | UKCA |
| Compliance certificates | CB |
| Compliance certificates | EAC |
| Warnings | Do not open the case – risk of electric shock. |
| Warnings | The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations. |
| Warnings | Avoid contact of the product with water or other liquids. |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 240 V |
| Cooling type | Active |
| Weight | 1.77 kg |
| Package weight | 3.43 kg |
| Package height | 157 mm |
| Input current | 13 A |
| Product colour | Black |
| ATX Power connector (24-pin) | Yes |
| Height | 86 mm |
| Depth | 150 mm |
| 80 PLUS certification | 80 PLUS Gold |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Width | 160 mm |
| Package width | 210 mm |
| Power protection features | Short circuit |
| Package depth | 338 mm |
| Number of fans | 1 fan(s) |
| Power factor | 0.99 |
| Power protection features | Surge & inrush protection (SIP) |
| Max output current (+3.3V) | 22 A |
| Power protection features | Over power |
| Total power | 1000 W |
| PCI Express power connectors (6+2 pin) | 8 |
| Power supply unit (PSU) form factor | ATX |
| EPS version | 2.92 |
| Power protection features | Under voltage |
| Power protection features | Over current |
| Max output current (+5V) | 22 A |
| Power protection features | Over voltage |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Overheating |
| Mean time between failures (MTBF) | 100000 h |
| Cabling type | Fully-Modular |
| Max output current (-12V) | 0.3 A |
| ATX version | 3.0 |
| Fan diameter | 13.5 cm |
| Motherboard power connector | 24-pin ATX |
| Purpose | PC |
| Bearing technology | FDB |
| Max output current (+12V) | 83.5 A |
| Number of SATA power connectors | 9 |
