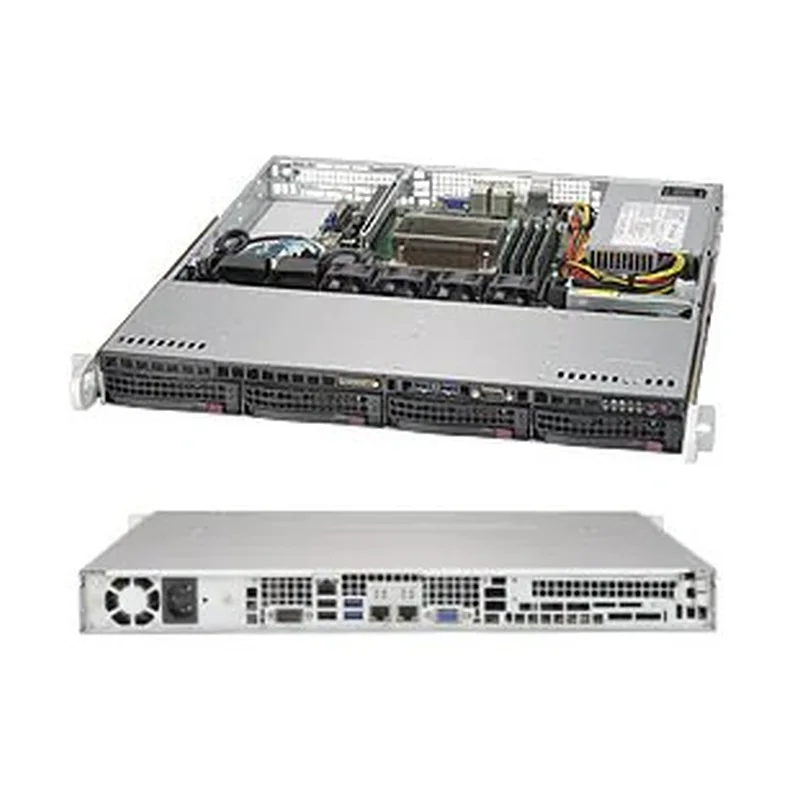

Actina 5901443345190 server 960 GB Rack (1U) Intel Xeon E E-2314 2.8 GHz 16 GB DDR4-SDRAM 350 W
Technical specifications
| Compatible operating systems | Windows Server 2019 64bit, Windows Server 2022 64bit, RHEL 8.3 64bit, CentOS 8.3 64bit, SLES 15 SP3 64bit, Ubuntu 18.04.6 64bit Server, Ubuntu 20.10 64bit Server |
|---|---|
| Special features | The specification and description are for illustrative purposes only. |
| Storage relative humidity (H-H) | 10 – 95% |
| Redundant power supply (RPS) support | No |
| Processor boost frequency | 4.5 GHz |
| Motherboard form factor | micro ATX |
| Processor frequency | 2.8 GHz |
| On-board graphics card | Yes |
| USB 2.0 ports quantity | 2 |
| Power supply input frequency | 50-60 Hz |
| Width | 437 mm |
| SSD size | 2.5" |
| Chassis type | Rack (1U) |
| Supported SSD sizes | 2.5" |
| Height | 43 mm |
| PCI Express x4 (Gen 3.x) slots | 1 |
| Maximum storage capacity | 960 TB |
| Hot-swap | Yes |
| SSD interface | SATA III |
| Wi-Fi | No |
| LAN controller | Intel I210 |
| Rack mounting | Yes |
| Processor manufacturer | Intel |
| Power supply | 350 W |
| Cabling technology | 10/100/1000Base-T(X) |
| Power cables quantity | 1 |
| Optical drive type | No |
| Number of main power supplies | 1 |
| Serial ports quantity | 1 |
| Ethernet LAN | Yes |
| Operating system installed | No |
| RAID support | Yes |
| Maximum internal memory | 128 GB |
| Power cable length | 2 m |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Total storage capacity | 960 GB |
| S/PDIF out port | No |
| Memory layout (slots x size) | 2 x 8 GB |
| VGA (D-Sub) ports quantity | 1 |
| SSD capacity | 480 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 4x DIMM |
| Depth | 503 mm |
| Internal memory | 16 GB |
| Ethernet LAN (RJ-45) ports | 2 |
| Operating temperature (T-T) | 0 – 50 °C |
| Rack rails | Yes |
| Number of LAN controllers | 1 |
| Processor cache | 8 MB |
| RAID levels | 0 |
| Total number of SATA connectors | 6 |
| RAID levels | 5 |
| RAID levels | 1 |
| Processor cores | 4 |
| On-board graphics card model | Aspeed AST2600 |
| Number of processors installed | 1 |
| Power supply input voltage | 100-240 V |
| Storage temperature (T-T) | -20 – 60 °C |
| Number of SSDs installed | 2 |
| Processor family | Intel Xeon E |
| Processor model | E-2314 |
| Number of 5.25" bays | 1 |
| RAID levels | 10 |
| Operating relative humidity (H-H) | 10 – 85% |
| Ethernet interface type | Gigabit Ethernet |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Memory clock speed | 3200 MHz |
| Motherboard chipset | Intel C252 |
| PCI Express x8 (Gen 4.x) slots | 2 |
