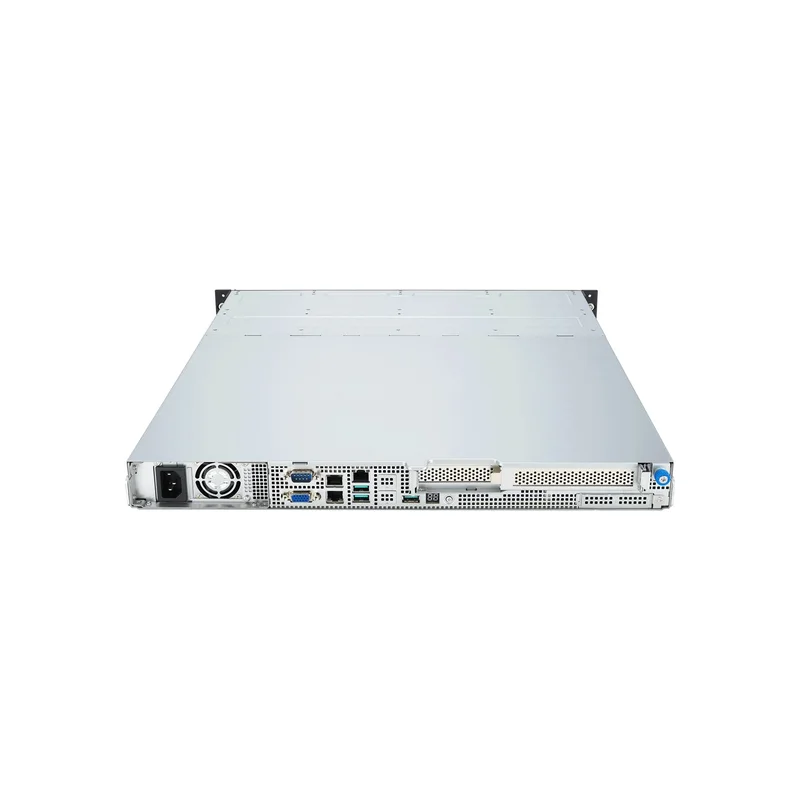

Actina 5901443349853 server 1.92 TB Rack (1U) Intel Xeon E E-2436 2.9 GHz 16 GB DDR5-SDRAM 350 W
Technical specifications
| Special features | The specification and description are for illustrative purposes only. |
|---|---|
| Internal memory type | DDR5-SDRAM |
| PCI Express x8 slots | 1 |
| On-board graphics card model | Aspeed AST2600 |
| Sustainability certificates | Federal Communications Commission (FCC) |
| Wi-Fi | No |
| Sustainability certificates | CB |
| Optical drive type | No |
| Number of 5.25" bays | 1 |
| Sustainability certificates | CE |
| Sustainability certificates | BSMI |
| Maximum graphics card memory | 64 MB |
| Processor model | E-2436 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Width | 439.5 mm |
| Processor cores | 6 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Processor frequency | 2.9 GHz |
| Total storage capacity | 1.92 TB |
| RAID levels | 10 |
| ECC | Yes |
| Total number of SATA connectors | 8 |
| Power supply input voltage | 100-240 V |
| RAID levels | 5 |
| Height | 44 mm |
| PCI Express x4 slots | 1 |
| Processor manufacturer | Intel |
| Processor boost frequency | 5 GHz |
| On-board graphics card | Yes |
| Storage relative humidity (H-H) | 20 – 90% |
| Hot-swap | Yes |
| Ethernet LAN | Yes |
| Redundant power supply (RPS) support | No |
| PCI Express x16 slots | 1 |
| Chassis type | Rack (1U) |
| Weight | 10 kg |
| Power supply | 350 W |
| Motherboard chipset | Intel C262 |
| RAID levels | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Processor family | Intel Xeon E |
| Processor cache | 18 MB |
| RAID levels | 0 |
| Product colour | Black |
| Number of processors installed | 1 |
| Storage temperature (T-T) | -40 – 70 °C |
| Power cable connector 1 | C13 coupler |
| On-board graphics card family | Aspeed |
| NVMe | No |
| Power supply input frequency | 60-50 Hz |
| LAN controller | Intel® I210-AT |
| S/PDIF out port | No |
| Number of SSDs supported | 4 |
| Serial ports quantity | 1 |
| Cabling technology | 10/100/1000Base-T(X) |
| VGA (D-Sub) ports quantity | 2 |
| Number of SSDs installed | 2 |
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| Number of main power supplies | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Operating system installed | No |
| Operating temperature (T-T) | 10 – 35 °C |
| Memory slots | 4x DIMM |
| Supported SSD sizes | 2.5" |
| Depth | 497 mm |
| Ethernet LAN (RJ-45) ports | 3 |
| SSD capacity | 960 GB |
